MK Series

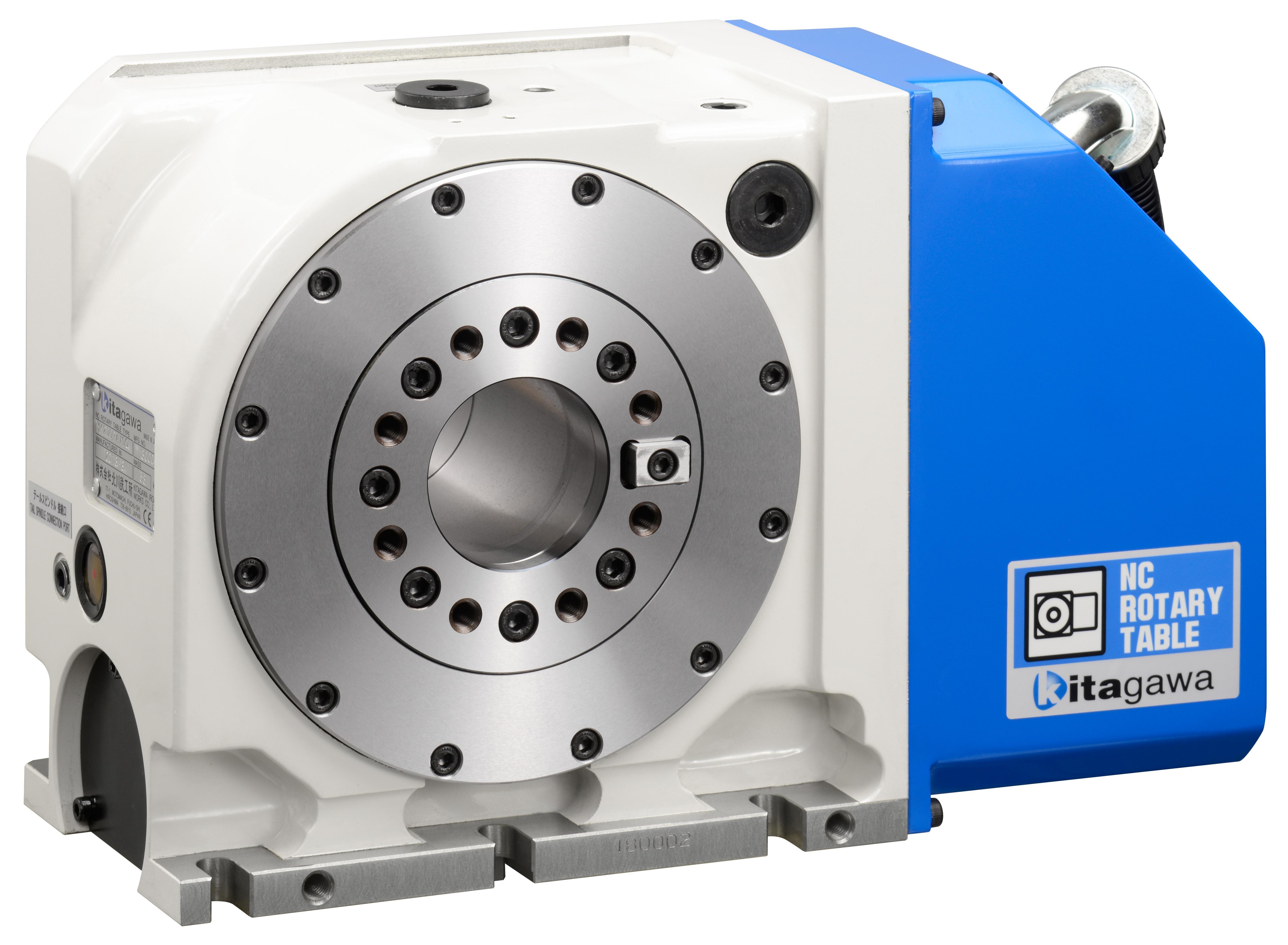

High Torque and Compact 4th Axis Rotary Table
Key Features
- Powerful clamping torque in a compact package
- Improved mounting, Reduced effective thickness and improved chip flow
- Wide selection of rotary joints available
Description
The MK series of rotary tables are designed to combine the benefits of high clamping torque and compact design. The MK tables have 40% more clamping torque than the standard range of tables and the re-designed mounting system allows for a smaller footprint and eliminates swarf collection points. Drive torque has also been increased and the centre bore has been increased to 70mm. The MK series of tables will accept a range of multi-port rotary joints for hydraulic, coolant and electrical connections as well as high pressure for miniaturization of fixtures and fast actuation. RAV specification comes with an external controller that functions off an M-Code, used for machines that do not have 4th axis preparation.
Estimated delivery: On Request
Dimensions
| # | Part No | Table Dia. (mm) | Centre Bore (mm) | Centre Height (mm) | Clamping Torque (Nm) | Allowable Inertia (kgm²) | Repeatability (sec) | Drawings | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | MK200 | 135 | 70 | 140 | 570 | 1 | 4 | £9,898.00 | |||
| 2 | MK250 | 150 | 70 | 180 | 1000 | 1.95 | 4 | £ Price on application | n/a | ||
| 3 | MK200RAV00 | 135 | 70 | 140 | 570 | 1 | 4 | £ Price on application | n/a | ||
| 4 | MK250RAV00 | 150 | 70 | 180 | 1000 | 1.95 | 4 | £ Price on application | n/a |
