1st Machine Tool Accessories Ltd
Machine Tool
Accessories
Workholding Specialists

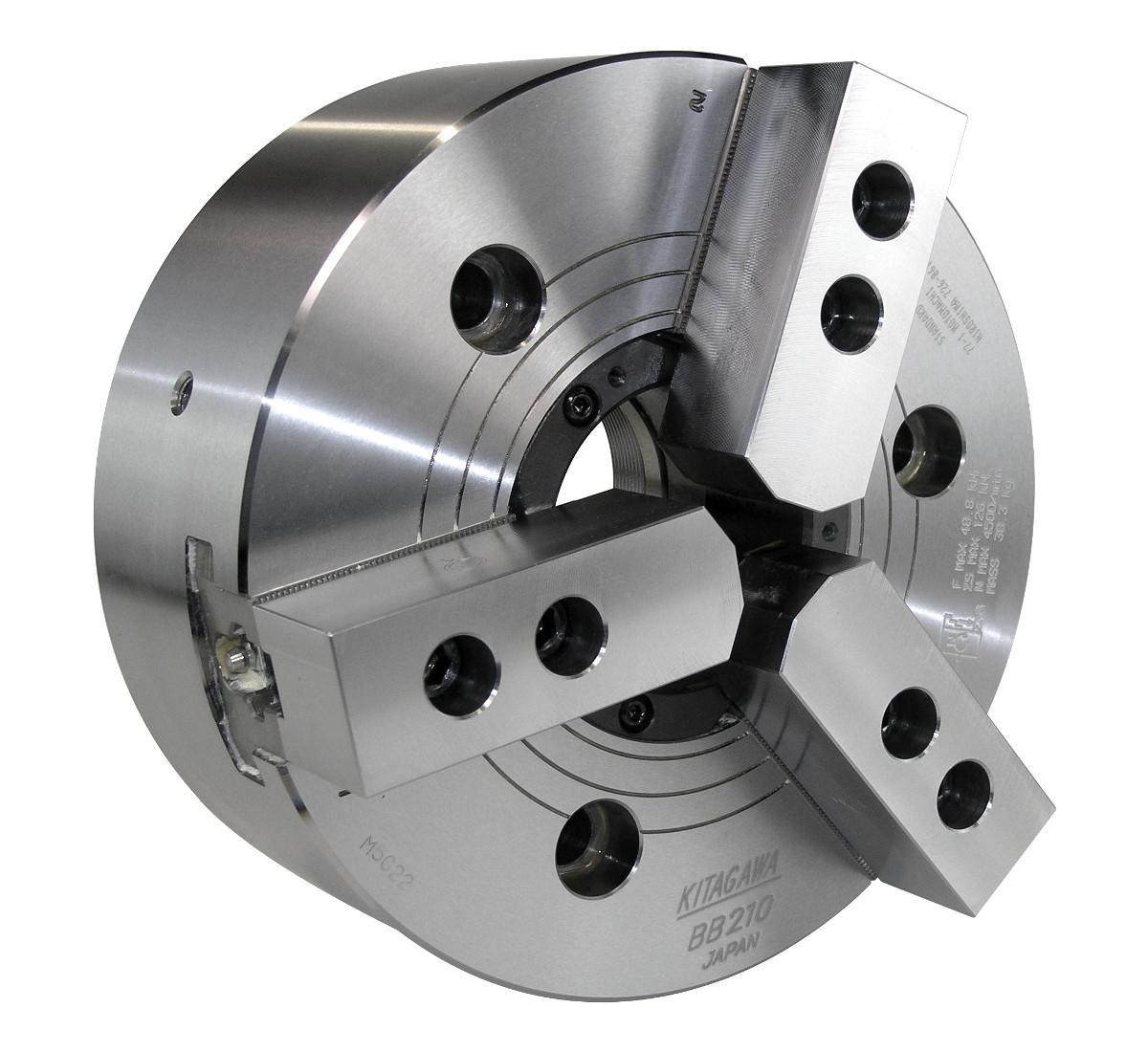

BB200 Series

Large Bore 3 Jaw Power Chuck

Key Features

  • Larger Bore to Accept Larger Components down the Spindle
  • Compatible with large, readily available, range of jaws
  • Upto 20% more speed and grip force than conventional chuck
  • Industry Standard Large Bore 3 Jaw Chuck

Description

Kitagawa's chucks are manufactured from high grade alloy steel. Three jaw wedge style power chucks deliver up to 20% more speed, gripping force and bore size when compared to conventional chucks. The BB series has a big bore to accept larger components down the Spindle.

BB200 series chucks are supplied with a blank drawnut as standard with a set of T-nuts.

Estimated delivery: 5-7 Working Days (subject to availability)

Dimensions

# Part No Chuck Bore (mm) Jaw Stroke Diameter (mm) Max Grip Force (kN) Max. Speed (rpm) Drawings Price
1 BB206 53 5.5 58.5 6000 n/a
2 BB208 66 7.4 99 5000 £2,182.00
3 BB210 81 8.8 126 4500 £2,473.00
4 BB212 106 10.6 153 3500 £3,236.00
