Clamping Receivers

V-Tech Zero Point System

Key Features

  • Reduce your set-up times by more than 90%.
  • Self-clamping mechanism, constant air not required
  • Made from heat treated refined steel
  • Positioning slots allow for indexing by 90°

Description

Created for use on CNC machining centres, the V-Tech Zero Point system’s unique design guarantees the secure and precise clamping of workpieces, even under tough conditions. The pneumatic, quick change and ZERO POINT clamp features compact dimensions, extraordinarily high clamping force and is made from top quality materials. V-Tech clamping and location elements can be purchased individually to easily adapt workholding and fixtures for lightning fast changeovers. V-Tech receivers are also available as a . Each V-Tech receiver provides 24KN of clamping force and has positioning slots to allow for indexing by 90 degrees. The self-clamping mechanism means the force is still applied after the air has been disconnected.

Estimated delivery: 5-7 Working Days (subject to availability)

Dimensions

# Part No Number of Receivers Total Size (mm) Pitch (mm) Clamp Force (kN) Price
1 2016010023 1 240x160 24 £ Price on application

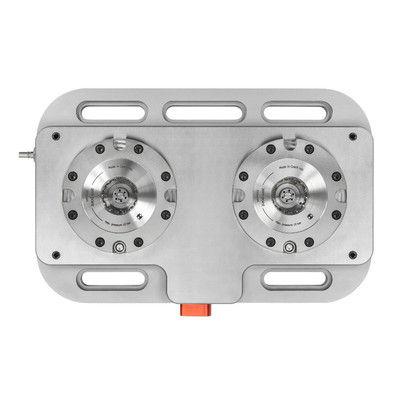

1 2016010018 2 400X256 200 48 £ Price on application
1 2016010016 2 500X256 300 48 £ Price on application

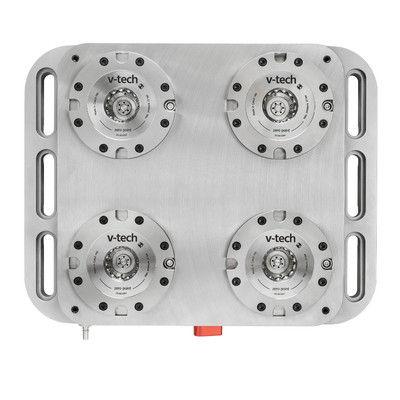

1 2016010017 4 360X456 200 96 £ Price on application

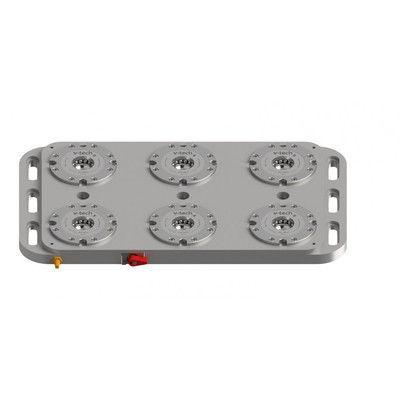

1 2016010021 6 360X655 200 144 £ Price on application
