MHK Manual Zero Point

Swift Clamp Base Units

Key Features

  • Uses the HSK-A type, time-proven tool holder shank to connect the head and the work-piece holder.
  • Off-line setup in advance allows quick work-piece changing, minimizing machine downtime.
  • Accepts a variety of workholders
  • Excellent workpiece accessibility

Description

Swift Klamp is a work-piece clamping system that maximizes the performance of your 5-axis machining center. Swift Klamp uses the time proven HSK-A type tool holding system for mounting workpieces. Klamp HSK heads can be mounted directly to 5-axis machine tables with or without optional mounting plates and are available as standard versions for manual loading as well as hydraulic versions for automated applications. Each Swift Klamp base unit will accept a range of workholders uncluding dovetail, flange, side clamp, collet and others and provides excellent workpiece accessibility with reduced interference.

Estimated delivery: 5-7 Working Days (subject to availability)

Dimensions

# Part No HSK Type Height (mm) Head Diameter (mm) Clamp Force (kN) Price

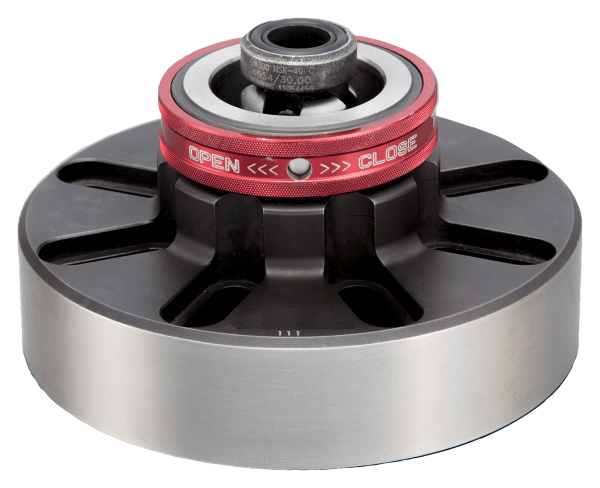

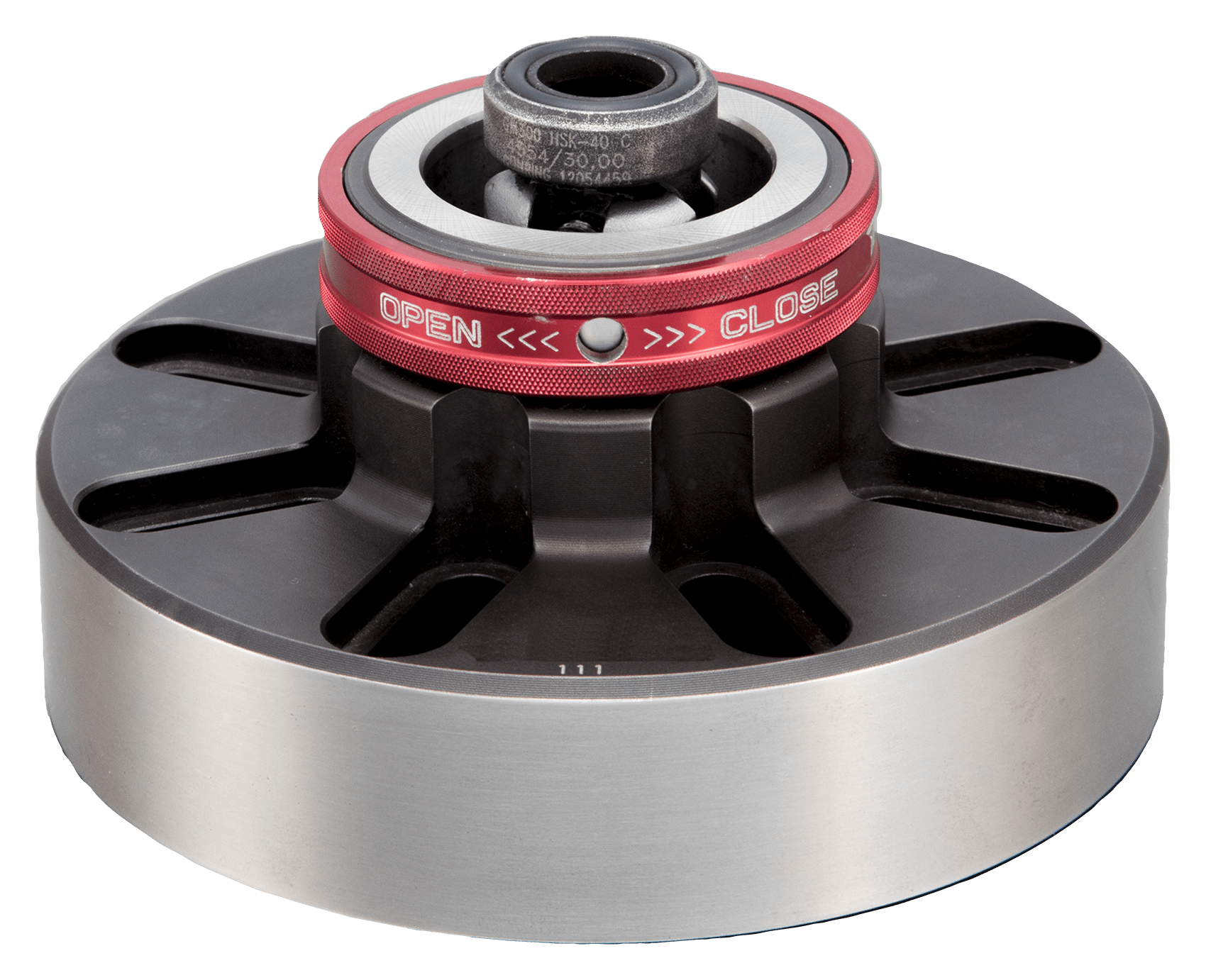

1 MHK-A40-50 HSK-A40 50 40 10 £1,354.00

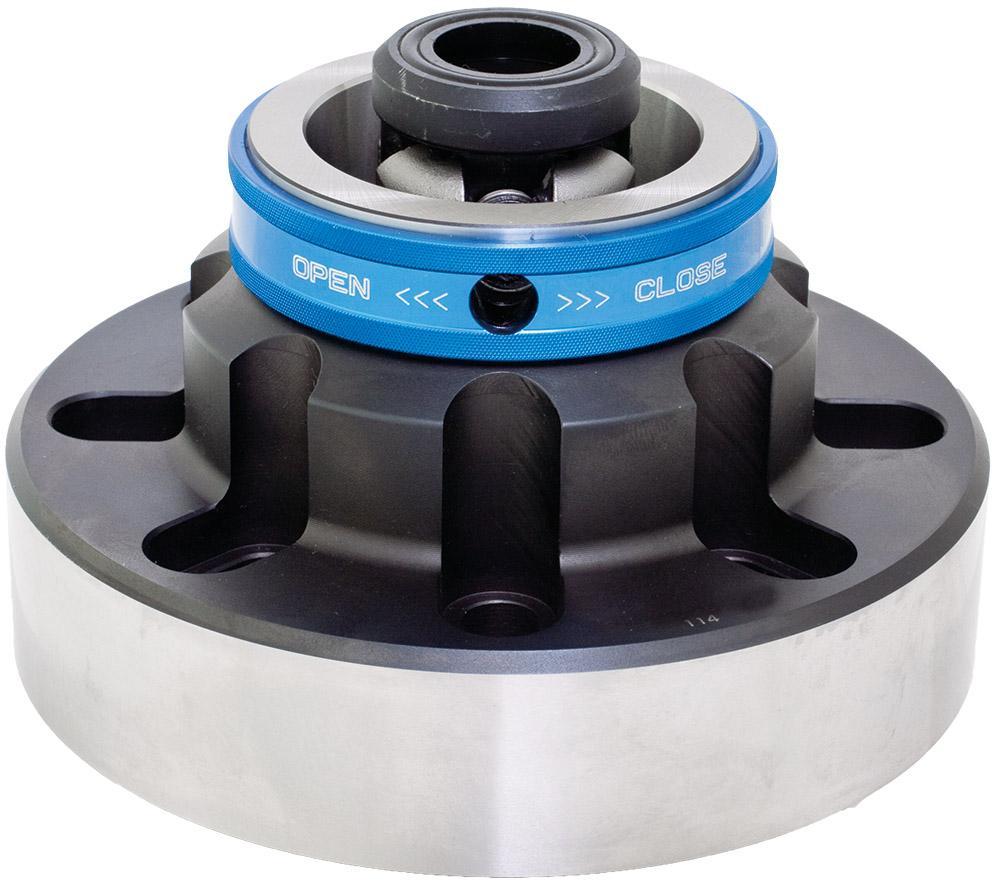

1 MHK-A63-70 HSK-A63 70 63 20 £1,655.00

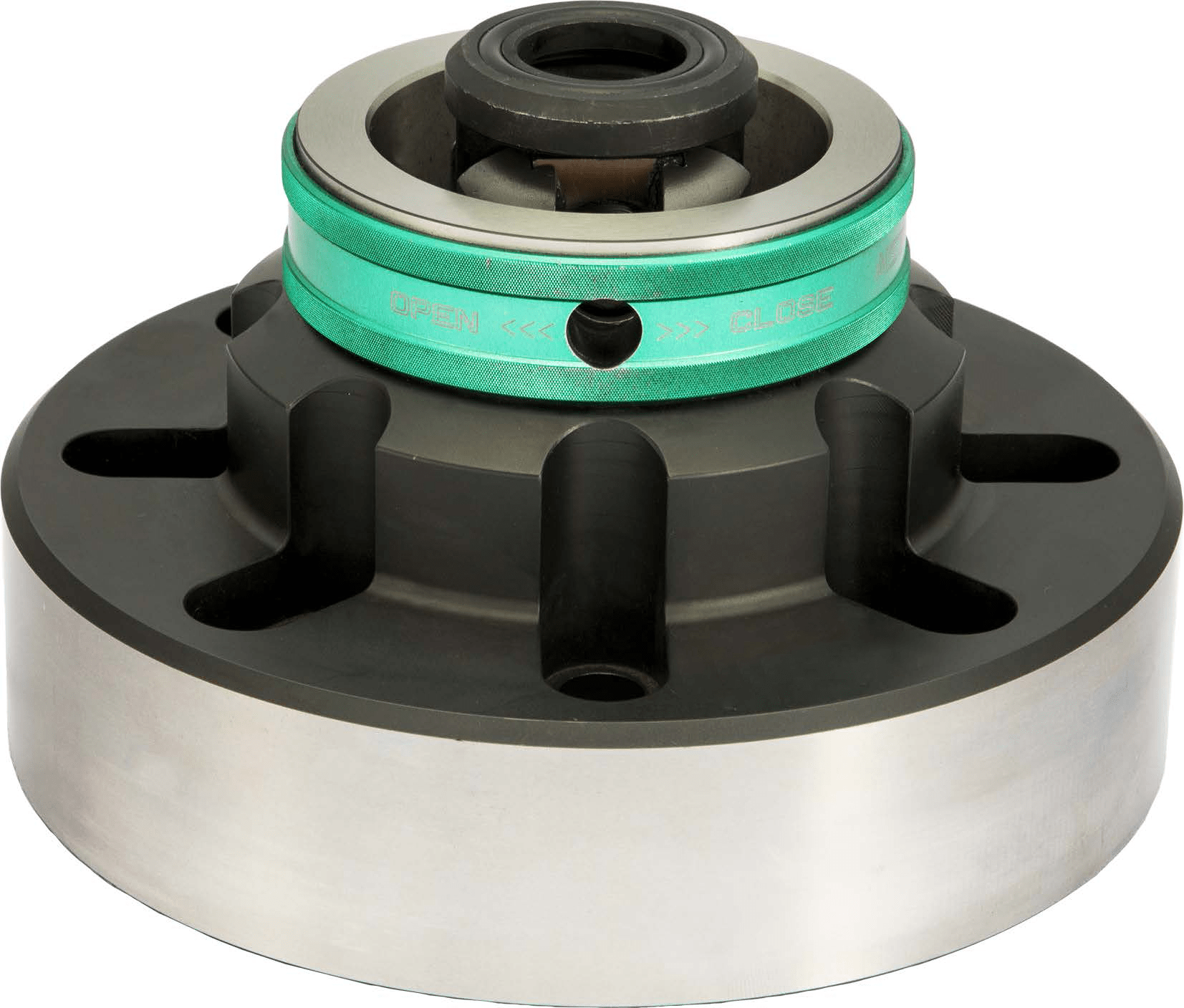

1 MHK-A100-110 HSK-A100 110 100 30 £2,256.00
