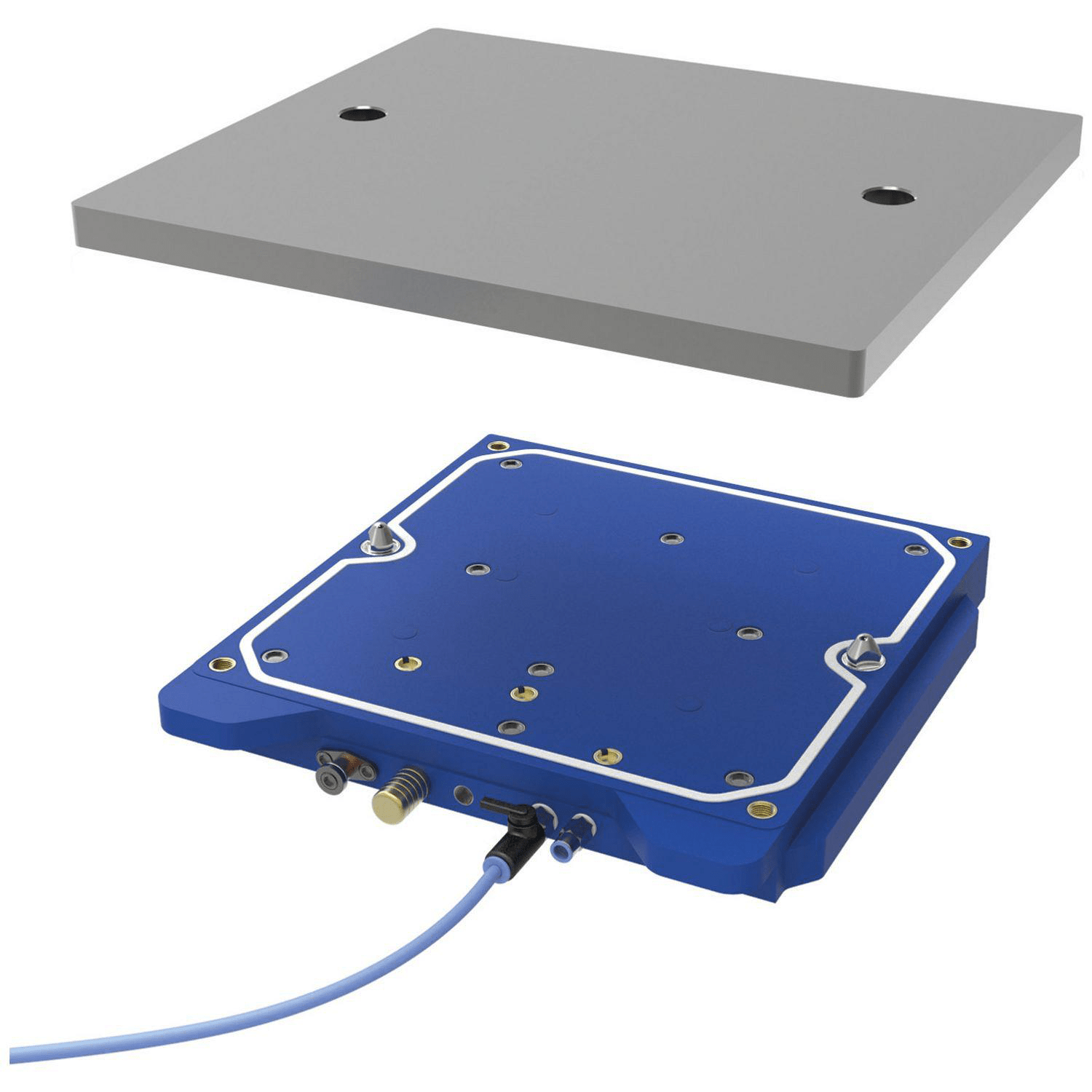

VacMagic VM300

Vacuum Clamping

Key Features

  • No vacuum pump required
  • Precise pallet location
  • Compatible with a range of pallets
  • Fixture CLamps and Sliding Stops included with the purchase.

Description

The All-in-One Pallet Changer and Vacuum Chuck System. Capabilities include traditional vacuum applications using our standard grid plate and custom vacuum applications (ie: machining blank pallet to suit specific part geometry) and the ability to perform as a rock solid pallet changer. The VM300 uses a patented method to produce a vacuum strong enough for industrial applications but still operates on shop air! No need for vacuum pumps and coolant traps.

Estimated delivery: 3-5 Working Days (subject to availability)

Dimensions

# Part No Description Length (mm) Width (mm) Height (mm) Price
1 45101 VM300 Kit Includes: base unit | 2 blank pallets | 1 vacuum pallet £4,643.66
1 45175 VM300 Base Unit (Receiver) includes all hardware 323 330 35 £3,459.46
1 45130 VM300 Blank Pallet 360 315 19 £365.97
1 45135 1″ Blank Pallet 379 379 25.4 £ Price on application n/a
1 45150 VM300 Vacuum Pallet 360 315 16 £452.40
1 45160 VM300 Large Vacuum Pallet 859 368 16 £1,290.65
