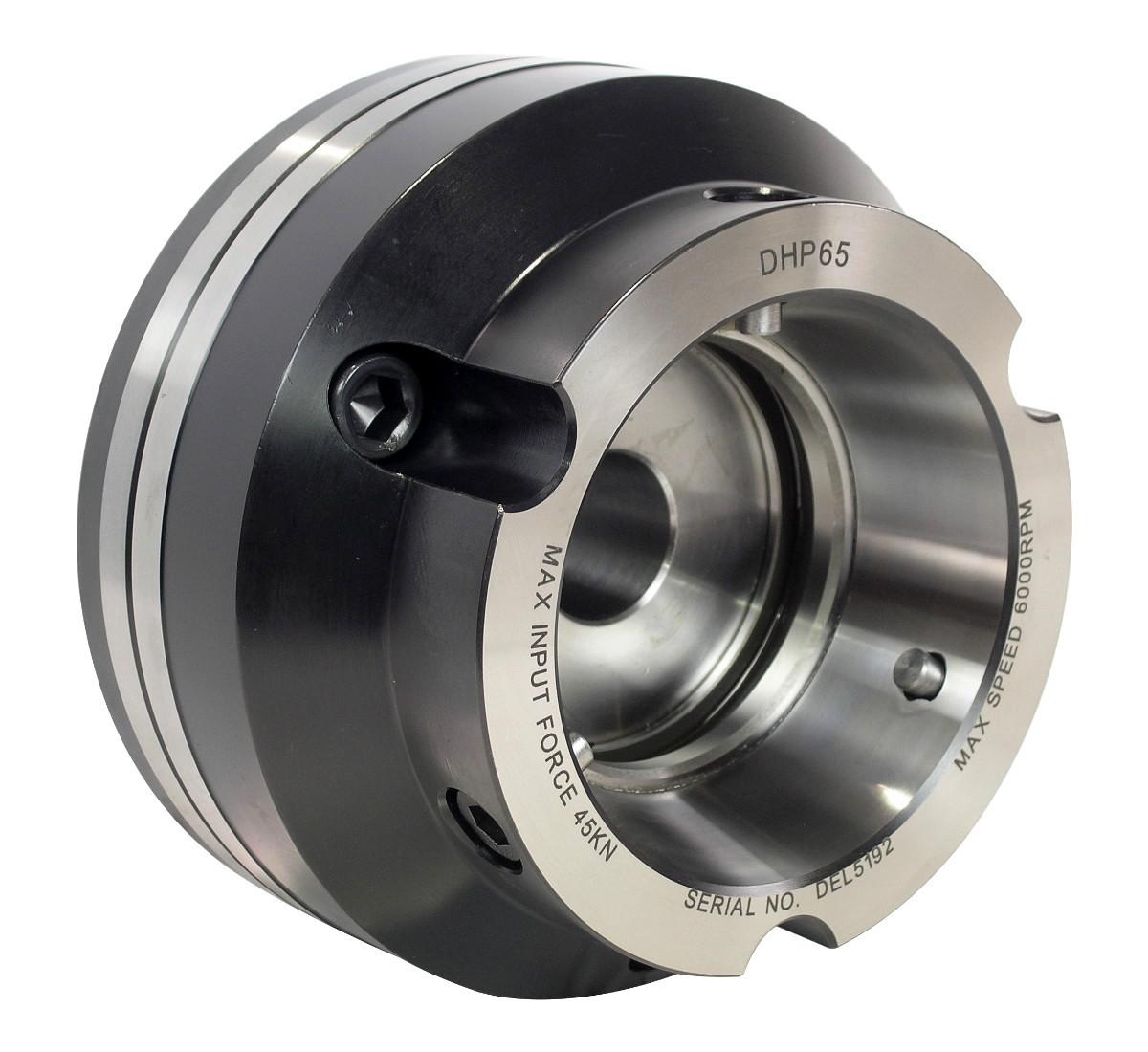

Pull Back Collet Chuck 65mm Capacity

For use with Collet Change Gun

Key Features

  • Collets have a +/- 0.5mm range to handle rough bar
  • Small nose diameter to provide excellent tool clearance.
  • Case hardened, optimising the rigidity, strength and durability.
  • Changing Collets usiong a gun reduces the change over time to seconds.

Description

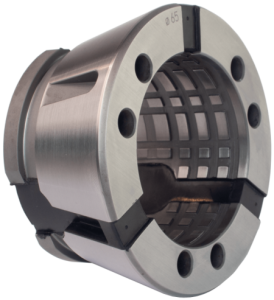

Klamp DHP collet chucks are suitable for collets which have a +/-0.5mm gripping range. Allowing the collet chuck to handle rough and unfinished bar, preparing it for a high accuracy second operation.

Due to the pullback nature of the DHP, it is only suited to bar work, the compact design means there is no position for a backstop.

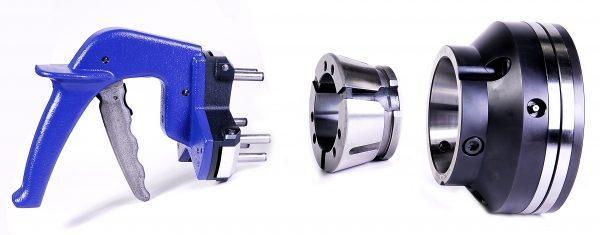

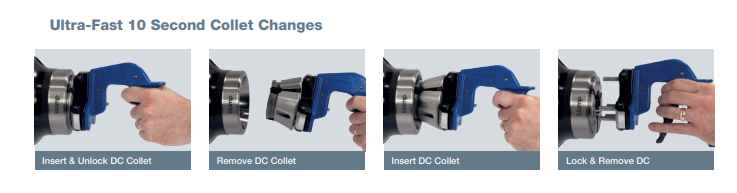

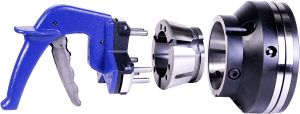

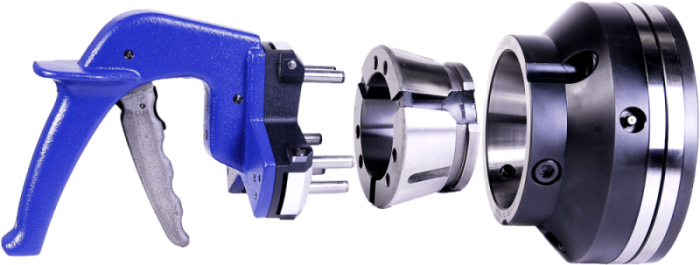

Changing collets via a quick change gun reduces the change over time to seconds

Estimated delivery: Next Day (subject to availability)

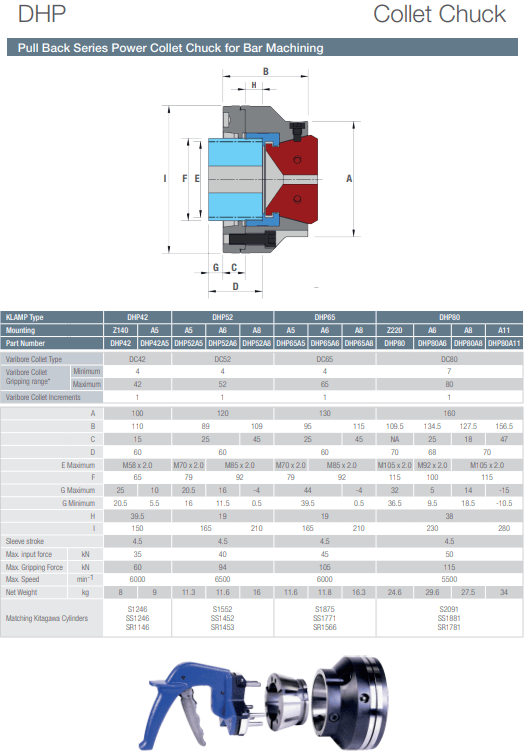

Dimensions

# Part No Spindle Mount Capacity (mm) Length (mm) Price
1 DHP65A5 A2-5 65 95 £1,068.00
1 DHP65A6 A2-5 65 95 £1,068.00
1 DHP65A8 A2-6 65 115 £1,057.00
