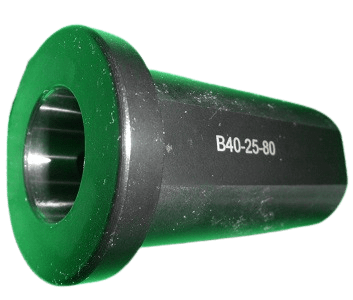

Cylindrical Reduction Bush

40mm Diameter

Key Features

  • High Accuracy Interal and External Diameter
  • Available in both Slotted and Threaded Fastening
  • Wide range of Sizes Available

Description

These reduction bushes allow for the fitting of boring bars and drills with a straight shaft. All sizes are manufactured in a range of capacities. The sleeves are hardened and ground for a good fit for both the holder and the shaft.

Estimated delivery: 3-5 Working Days (subject to availability)

Dimensions

# Part No Outside Diameter (mm) Internal Diameter (mm) Length (mm) Slotted or Threaded Price
1 B40-6-60 40 6 60 Threaded £66.78
1 B40-8-80 40 8 80 Threaded £66.78
1 B40-10-80 40 10 80 Threaded £66.78
1 B40-12-80 40 12 80 Threaded £66.78
1 B40-14-80 40 14 80 Threaded £66.78
1 B40-16-80 40 16 80 Threaded £66.78
1 B40-18-80 40 18 80 Threaded £66.78
1 B40-20-80 40 20 80 Threaded £66.78
1 B40-25-80 40 25 80 Threaded £66.78
1 B40-32-90 40 32 90 Slotted £66.78

Resources / Downloads
