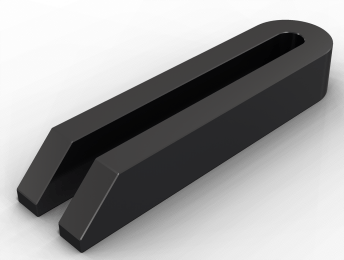

U-Clamp

For Top Clamping

Key Features

  • U-Shape allows for Quick Set-ups
  • Hardened for Longevity
  • Chamfered End for Additional Clearance

Description

An open shaped toolmakers clamp allows for a quick easy installation. Hardened and Chemi-Blacked for durability and with a chamfer for additional access to the part.

Recommended Parts

SU01 Jig Rest Button

PT07 Clamping Stud

PT04 Flange Nut

SU10 Riser Cylinder

PT22 Washer

Estimated delivery: 5-7 Working Days (subject to availability)

Dimensions

# Part No Length (mm) Width (mm) Height (mm) Slot width (mm) Price
1 CP01-12100 100 38 22 13 n/a
1 CP01-12125 125 38 25 13 £25.79
1 CP01-16150 150 50 32 17 £33.14
1 CP01-16200 200 50 32 17 £45.04
1 CP01-16300 300 50 32 17 £48.54
1 CP01-20200 200 60 35 21 £52.50
1 CP01-20300 300 60 35 21 £67.44
1 CP01-24250 250 76 48 26 £131.84
