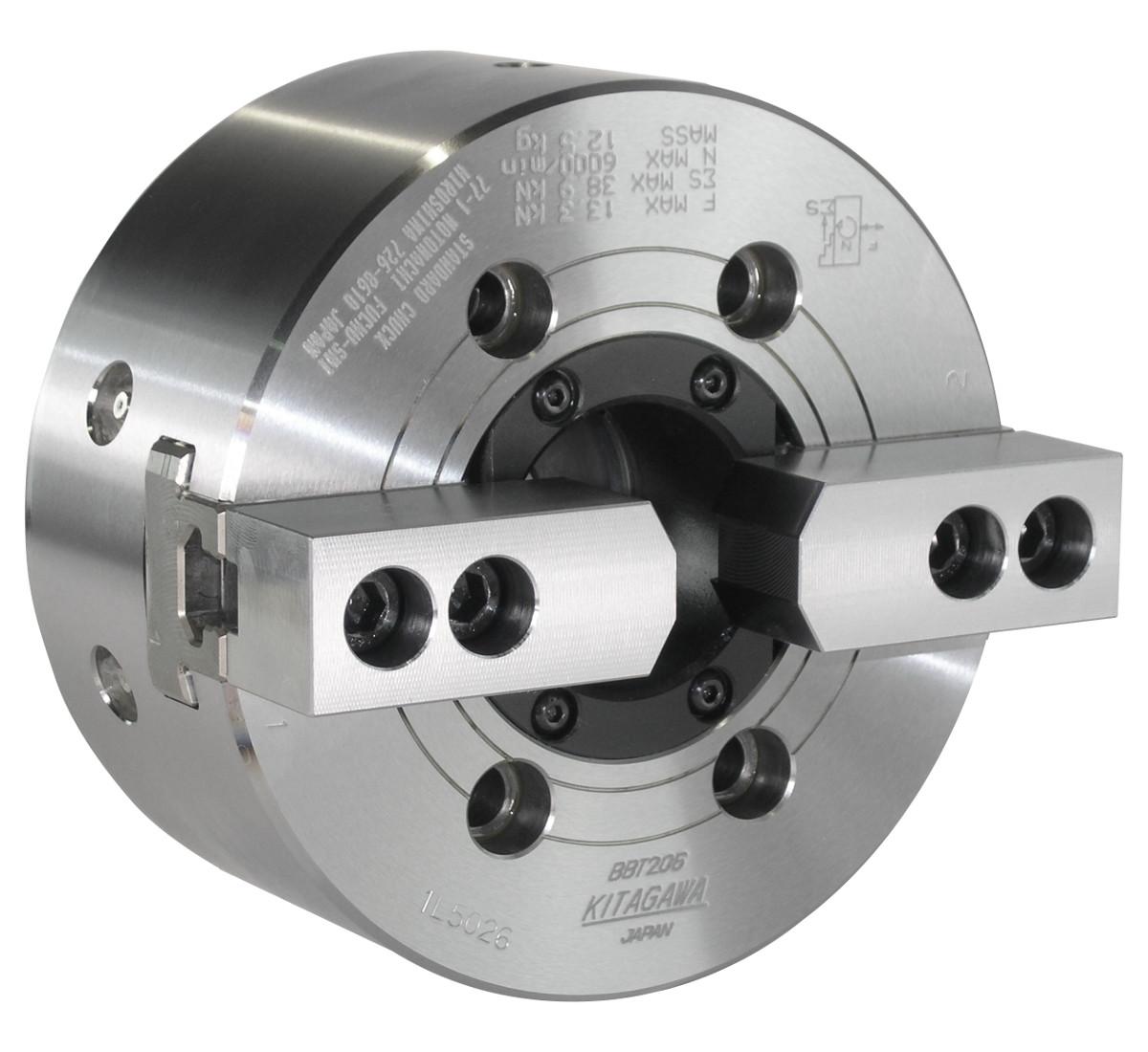

BBT Series (with Adaptor)
Big Bore 2 Jaw Power Chuck with Adaptor Plate
Key Features
- Usefull for gripping irregular shaped components
- Better clearance on speicalist parts
- Larger thru-hole increasing bar capacity
- Compatible with standard accessories
Description
Kitagawa chucks are manufactured from high grade alloy steel. The Kitagawa BBT series are two jaw wedge style power chucks with miniumal reduce gripping force. BBT chucks are ideal for irregular compounets which require the additional ability to pass larger compounets through the bore. BT series chucks are supplied with blank drawnut, adapter and a set of t-nuts as standard.
Estimated delivery: 3-5 Working Days (subject to availability)
Dimensions
| # | Part No | Spindle Nose | Chuck Bore | Jaw Stroke | Max Grip | Max Speed | Price | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | BBT206A5 | A2-5 | 53 | 5.5 | 38.9 | 6000 | £2,579.00 | ||
| 1 | BBT208A6 | A2-6 | 66 | 7.4 | 65.9 | 5000 | £ Price on application | n/a | |
| 1 | BBT210A6 | A2-6 | 81 | 8.8 | 83.9 | 4500 | £3,069.00 | ||
| 1 | BBT210A8 | A2-8 | 81 | 8.8 | 83.9 | 4500 | £3,069.00 | ||
| 1 | BBT212A6 | A2-6 | 106 | 10.6 | 101.9 | 3500 | £3,862.00 | ||
| 1 | BBT212A8 | A2-8 | 106 | 10.6 | 101.9 | 3500 | £3,862.00 |
