Block Stop
Double Sided Stop
Key Features
- Holding Multiple Components with One Stop
- Available Ground or Serrated
- Hole Position to suit 50mm Grid
Description

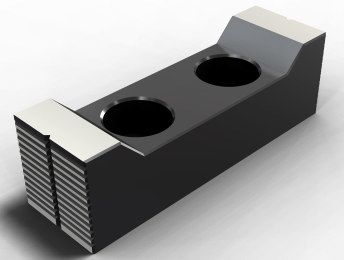

Double ended stop to hold 2 components. Suitable for use with CP12 and CP38. Supplied either ground for second operation work or serrated for first operation.
Estimated delivery: 5-7 Working Days (subject to availability)
Dimensions
| # | Part No | Ground or Serrated | Length (mm) | Width (mm) | Height of Clamping Face (mm) | Mounting holes | Price | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | CP29-12100-G | Ground | 100 | 35 | 30 | 12 | £43.75 | ||
| 1 | CP29-16130-G | Ground | 130 | 40 | 40 | 16 | £50.52 | ||
| 1 | CP29-12100-S | Serrated | 100 | 35 | 30 | 12 | £50.52 | ||
| 1 | CP29-16130-S | Serrated | 130 | 40 | 40 | 16 | £60.67 |
