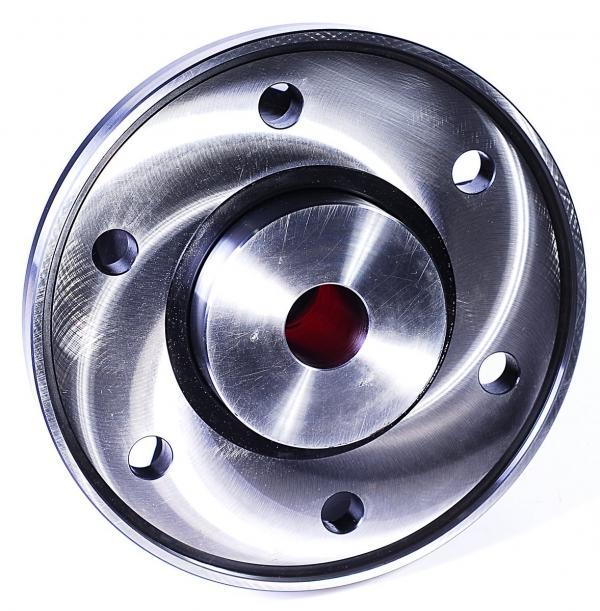

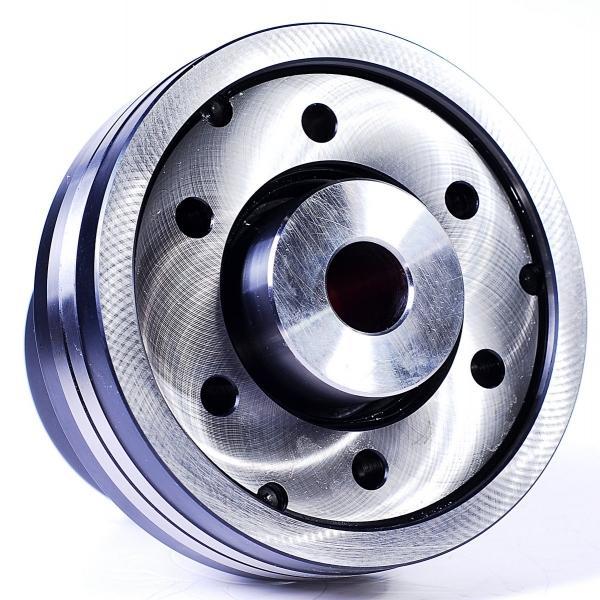

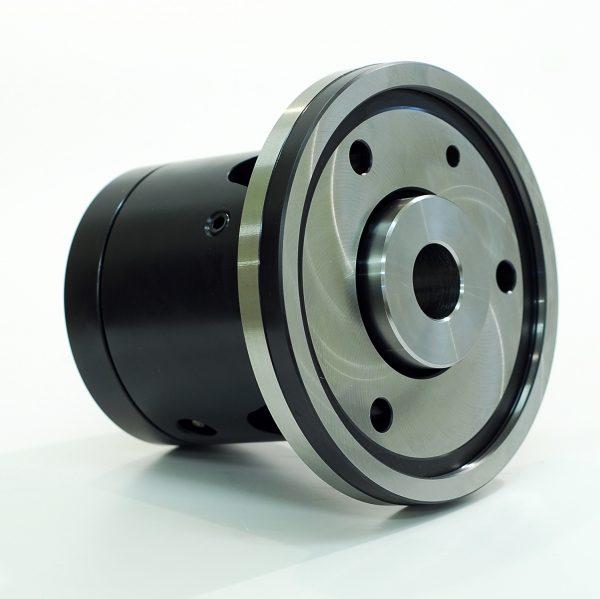

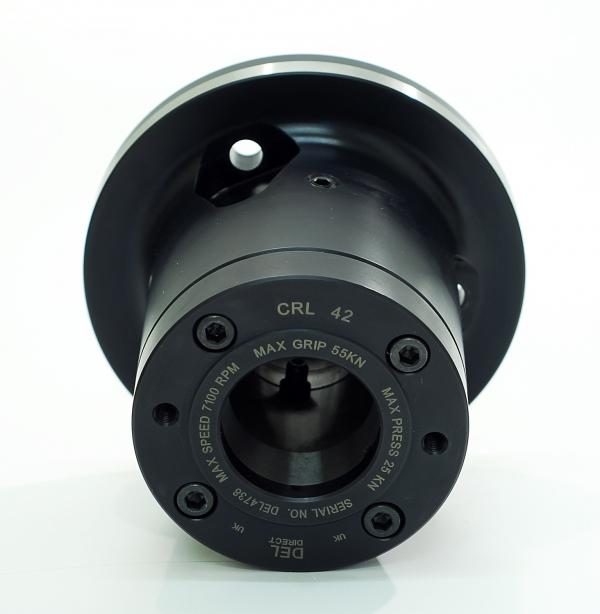

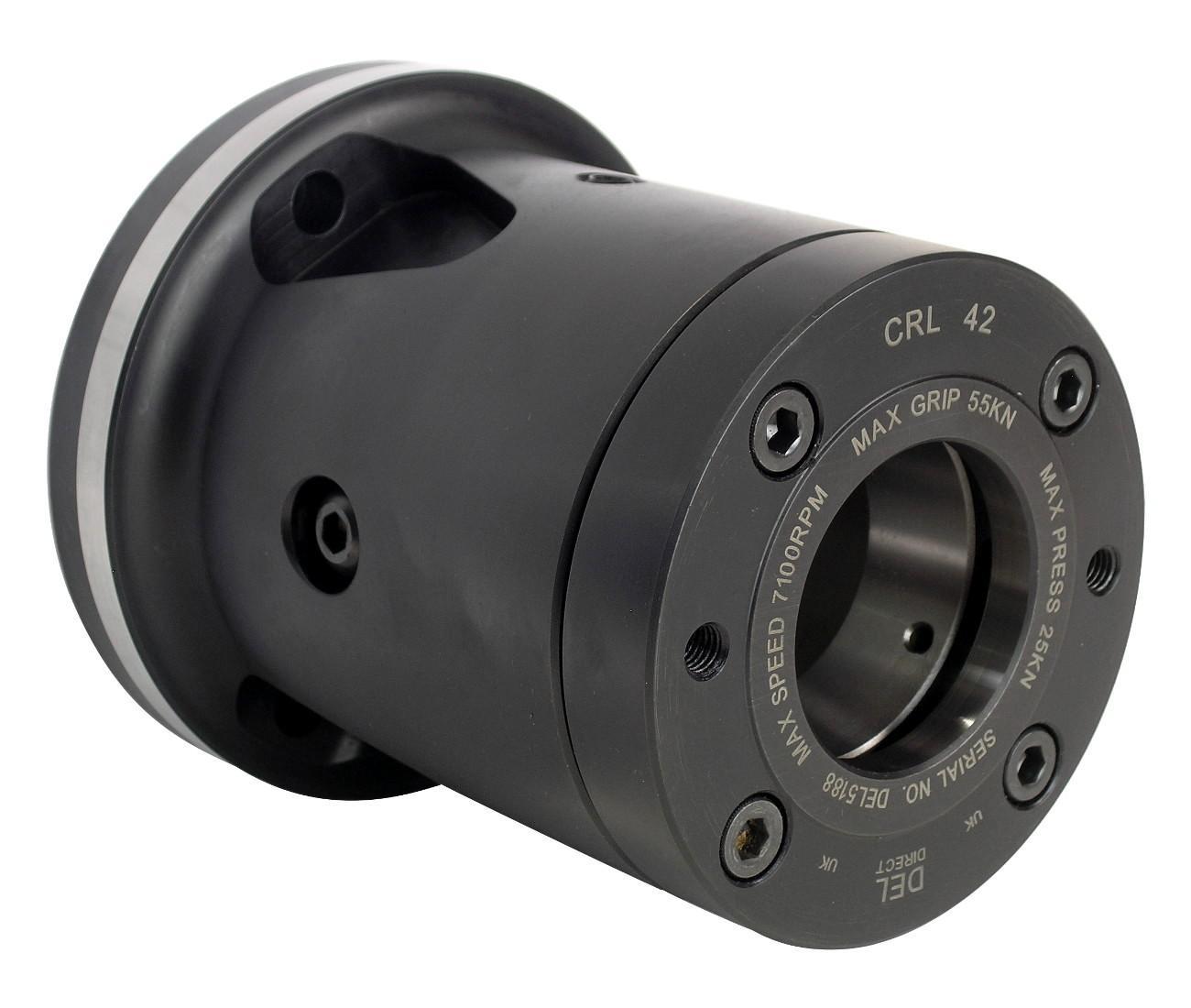

Bolt-On Cap Collet Chuck

42mm Capacity for 1st & 2nd Op

Key Features

  • Can be used for 1st and 2nd Operation
  • Deadlength Actuation Eleminates part movement when Clamping
  • Case hardened, optimising the rigidity, strength and durability.
  • Uses 3 Different Types of Collet

Description

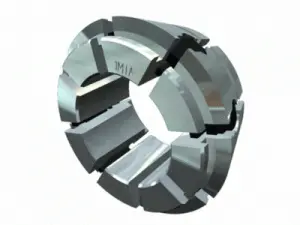

Klamp CRL42 collet chucks are suitable for spring, varibore and rubberflex collets increasing its flexibility. Varibore and rubberflex collets allow rough, unfinished bar to be machined in the first operation and spring collets can be used for high accuracy in the second operation.

Workpiece remains in a fixed position during actuation allowing for precise z-axis positioning. A tapered sleeve is pushed forward, compressing the collet and gripping the workpiece.

Maximum Capacity can be increased to 45mm using Rubberflex Collets

Estimated delivery: Next Day (subject to availability)

Dimensions

# Part No Spindle Mount Capacity (mm) Length (mm) Spring Varibore Collet Rubberflex Collet Price
1 CRL42 140mm 42 128 D173E D673 DRFC673 £900.00
1 CRL42A5 A2-5 42 143 D173E D673 DRFC673 £955.00
1 CRL42A6 A2-6 42 145 D173E D673 DRFC673 £955.00
