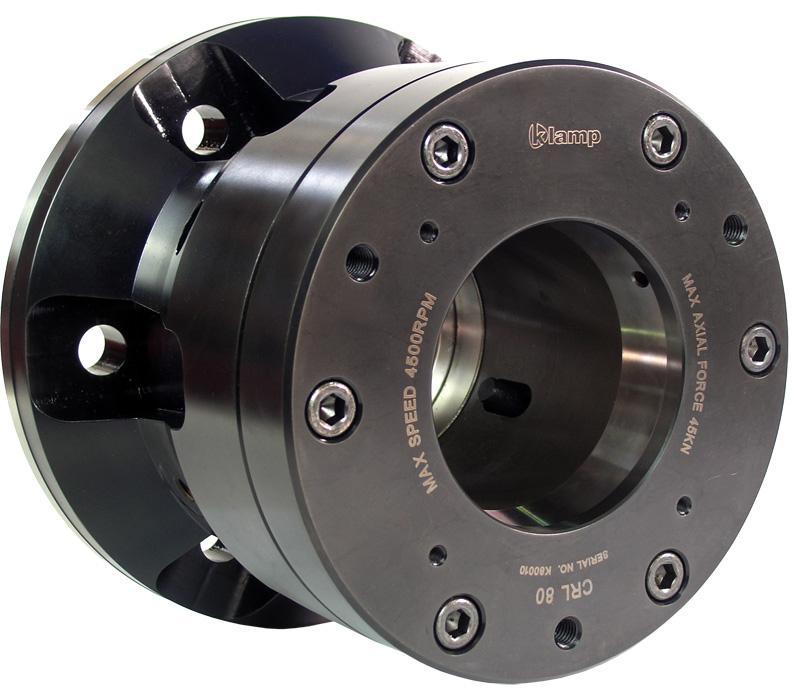

CRL80 Bolt-On Cap Collet Chuck
80mm Capacity for 1st & 2nd Op
Key Features
- Can be used for 1st and 2nd Operation
- Deadlength Actuation Eleminates part movement when Clamping
- Case hardened, optimising the rigidity, strength and durability.
- Uses 2 Different Types of Collet
Description
Klamp CRL80 collet chucks are suitable for spring and varibore collets increasing its flexibility. Varibore collets allow rough, unfinished bar to be machined in the first operation and spring collets can be used for high accuracy in the second operation. Workpiece remains in a fixed position during actuation allowing for precise z-axis positioning. A tapered sleeve is pushed forward, compressing the collet and gripping the workpiece. Suitable for D193E Spring collets , D660 Varibore.
CRL42
CRL54
CRL60
Estimated delivery: Next Day (subject to availability)
Dimensions
| # | Part No | Spindle Mount | Capacity (mm) | Length (mm) | Spring | Varibore | Price | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | CRL80 | 220mm | 80 | 170 | D193E | D660 | £3,120.00 | ||
| 1 | CRL80A8 | A2-8 | 80 | 176 | D193E | D660 | £3,120.00 |
