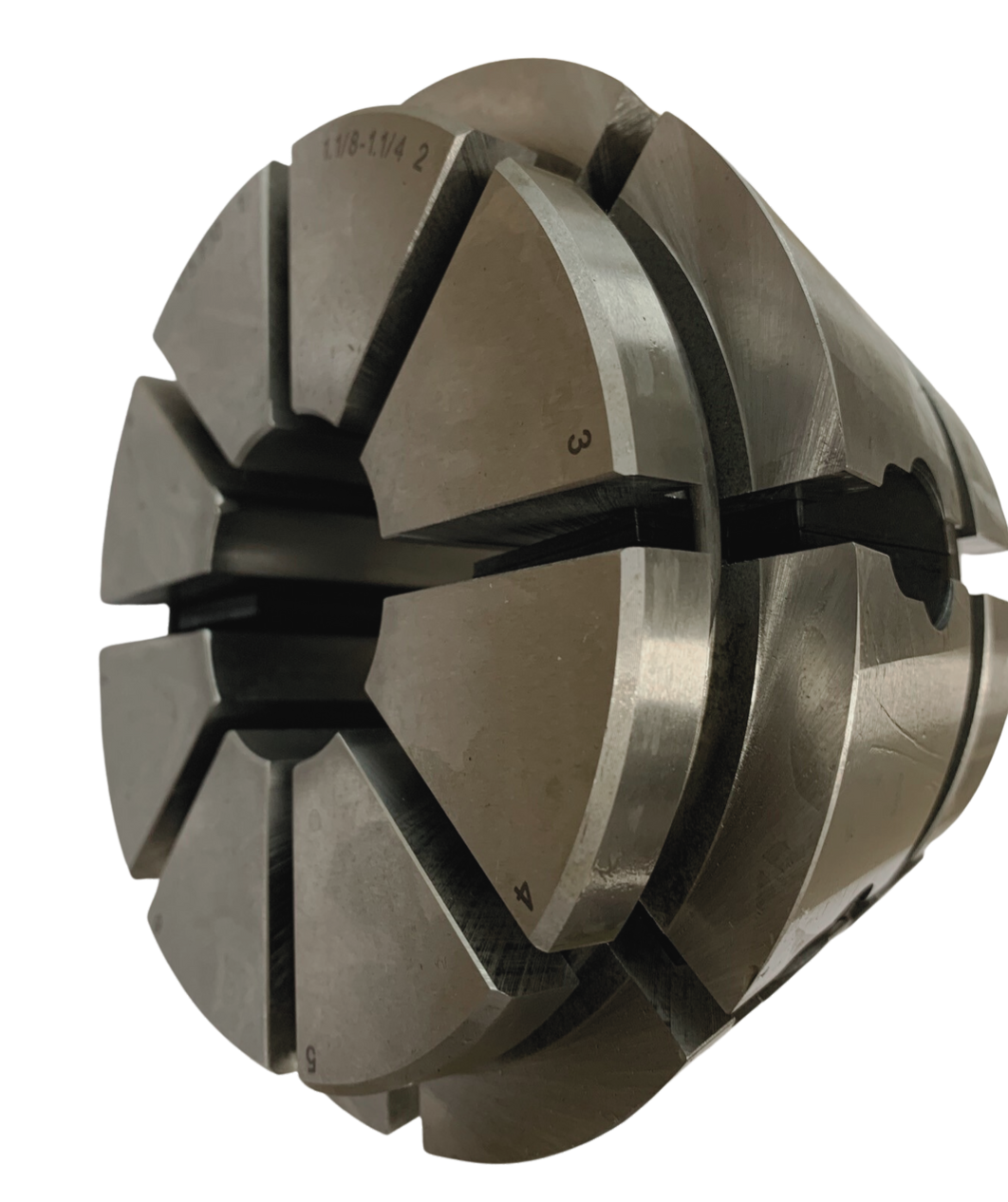

D175 Varibore Round Collet
F Type Collet for 1st Operation Work
Key Features
- 1/8" Range per Collets
- Sizes Up To 80mm Capacity
- Smooth Bore as Standard, Other Finishes Available
- Special Profiles Available
Description
D175 Varibore Round collets are to suit 80mm capacity collet chucks. Also known as N175, these collets have a 3.175mm range. Supplied smooth as standard we can supply with alternate finishes and in special profiles. D175 suit the following collet chucks: Klamp QCRS80 Crawford QC-80 Crawford QCS-80
Estimated delivery: Next Day (subject to availability)
Dimensions
| # | Part No | Range (mm) | Range (inch) | Bore | Price | ||
|---|---|---|---|---|---|---|---|
| 1 | D175R-F05 | 12.7 - 15.87 | 1/2 - 5/8" | Smooth | £273.39 | ||
| 1 | D175R-F06 | 15.87 - 19.05 | 5/8 - 3/4" | Smooth | £273.39 | ||
| 1 | D175R-F07 | 19.05 - 22.22 | 3/4 - 7/8" | Smooth | £273.39 | ||
| 1 | D175R-F08 | 22.22 - 25.4 | 7/8 - 1" | Smooth | £273.39 | ||
| 1 | D175R-F09 | 25.4 - 28.57 | 1 - 1 1/8" | Smooth | £273.39 | ||
| 1 | D175R-F10 | 28.57 - 31.75 | 1 1/8 - 1 1/4" | Smooth | £273.39 | ||
| 1 | D175R-F11 | 31.75 - 34.92 | 1 1/4 - 1 3/8" | Smooth | £273.39 | ||
| 1 | D175R-F12 | 34.92 - 38.1 | 1 3/8 - 1 1/2" | Smooth | £273.39 | ||
| 1 | D175R-F13 | 38.1 - 41.27 | 1 1/2 - 1 5/8" | Smooth | £273.39 | ||
| 1 | D175R-F14 | 41.27 - 44.45 | 1 5/8 - 1 3/4" | Smooth | £273.39 | ||
| 1 | D175R-F15 | 44.45 - 47.62 | 1 3/4 - 1 7/8" | Smooth | £273.39 | ||
| 1 | D175R-F16 | 47.62 - 50.8 | 1 7/8 - 2" | Smooth | £273.39 | ||
| 1 | D175R-F17 | 50.8 - 53.97 | 2 - 2 1/8" | Smooth | £273.39 | ||
| 1 | D175R-F18 | 53.97 - 57.15 | 2 1/8 - 2 1/4" | Smooth | £273.39 | ||
| 1 | D175R-F19 | 57.15 - 60.32 | 2 1/4 - 2 3/8" | Smooth | £273.39 | ||
| 1 | D175R-F20 | 60.32 - 63.5 | 2 3/8 - 2 1/2" | Smooth | £273.39 | ||
| 1 | D175R-F21 | 63.5 - 66.67 | 2 1/2 - 2 5/8" | Smooth | £273.39 | ||
| 1 | D175R-F22 | 66.67 - 69.85 | 2 5/8 - 2 3/4" | Smooth | £273.39 | ||
| 1 | D175R-F23 | 69.85 - 73.02 | 2 3/4 - 2 7/8" | Smooth | £273.39 | ||
| 1 | D175R-F24 | 73.02 - 76.20 | 2 7/8 - 3" | Smooth | £273.39 | ||
| 1 | D175R-F25 | 76.20-79.37 | 3 - 3 1/8" | Smooth | £273.39 | ||
| 1 | D175R-F26 | 79-37 - 82.55 | 3 1/8 - 3 1/4" | Smooth | £273.39 |
