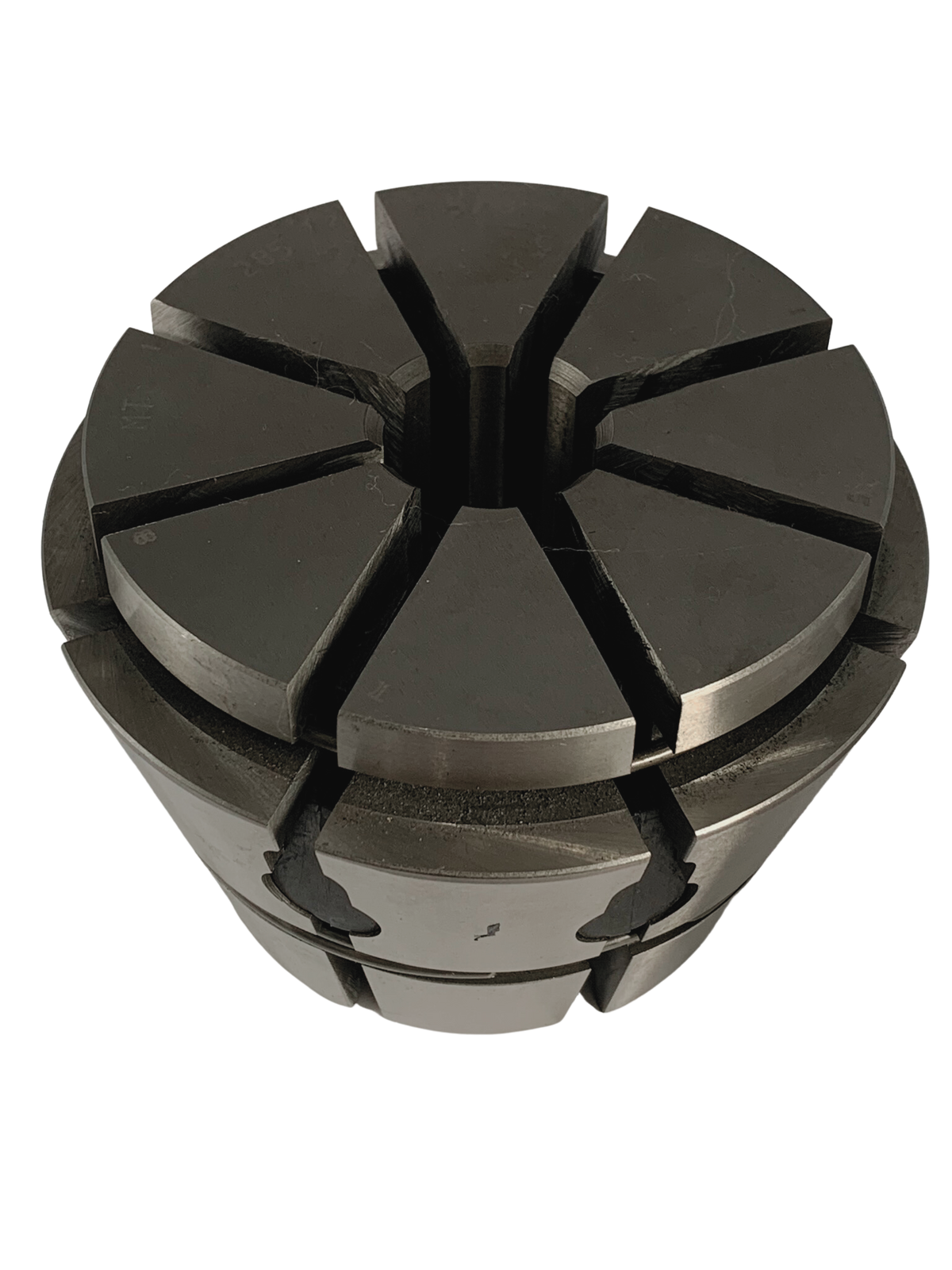

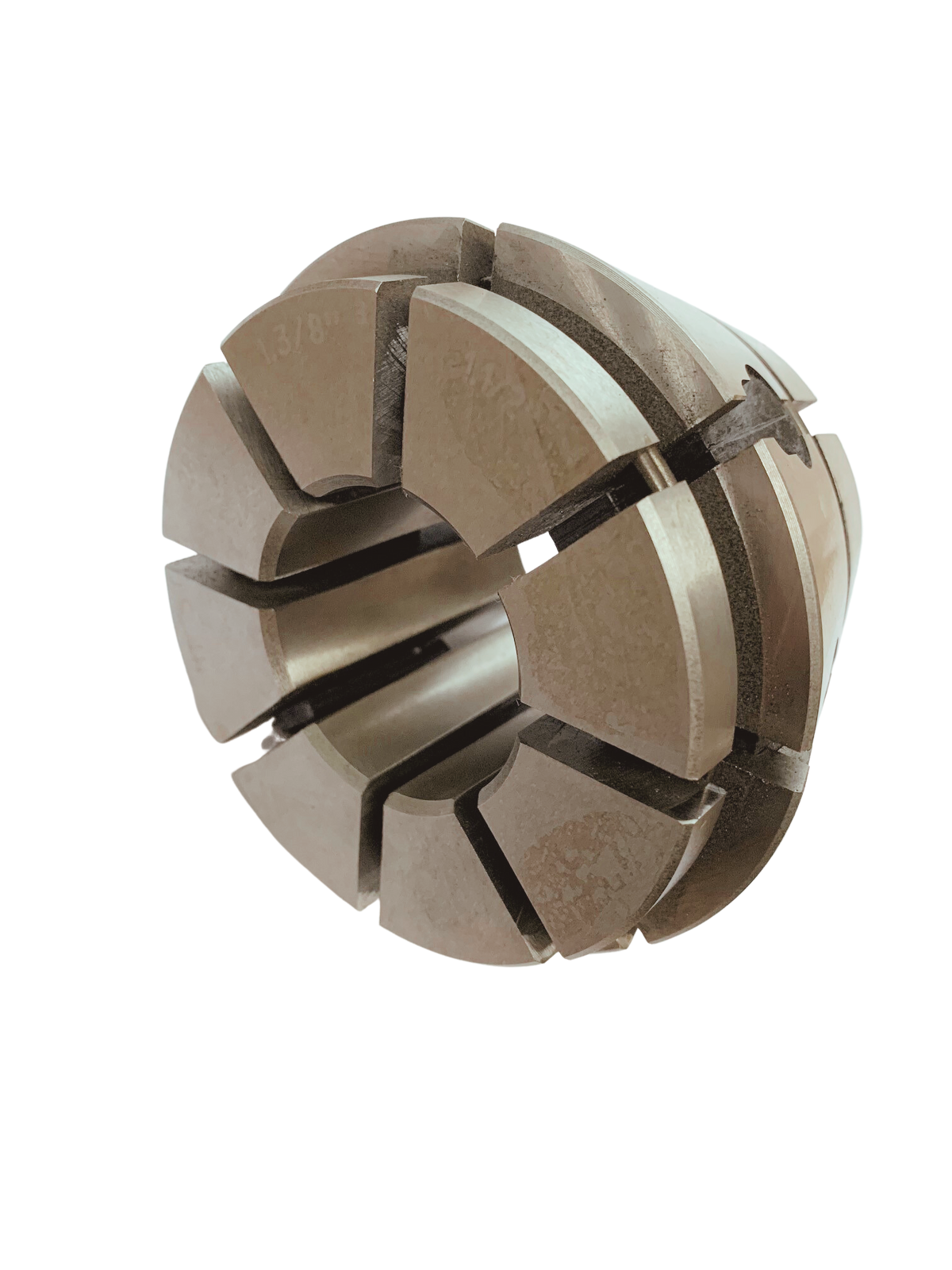

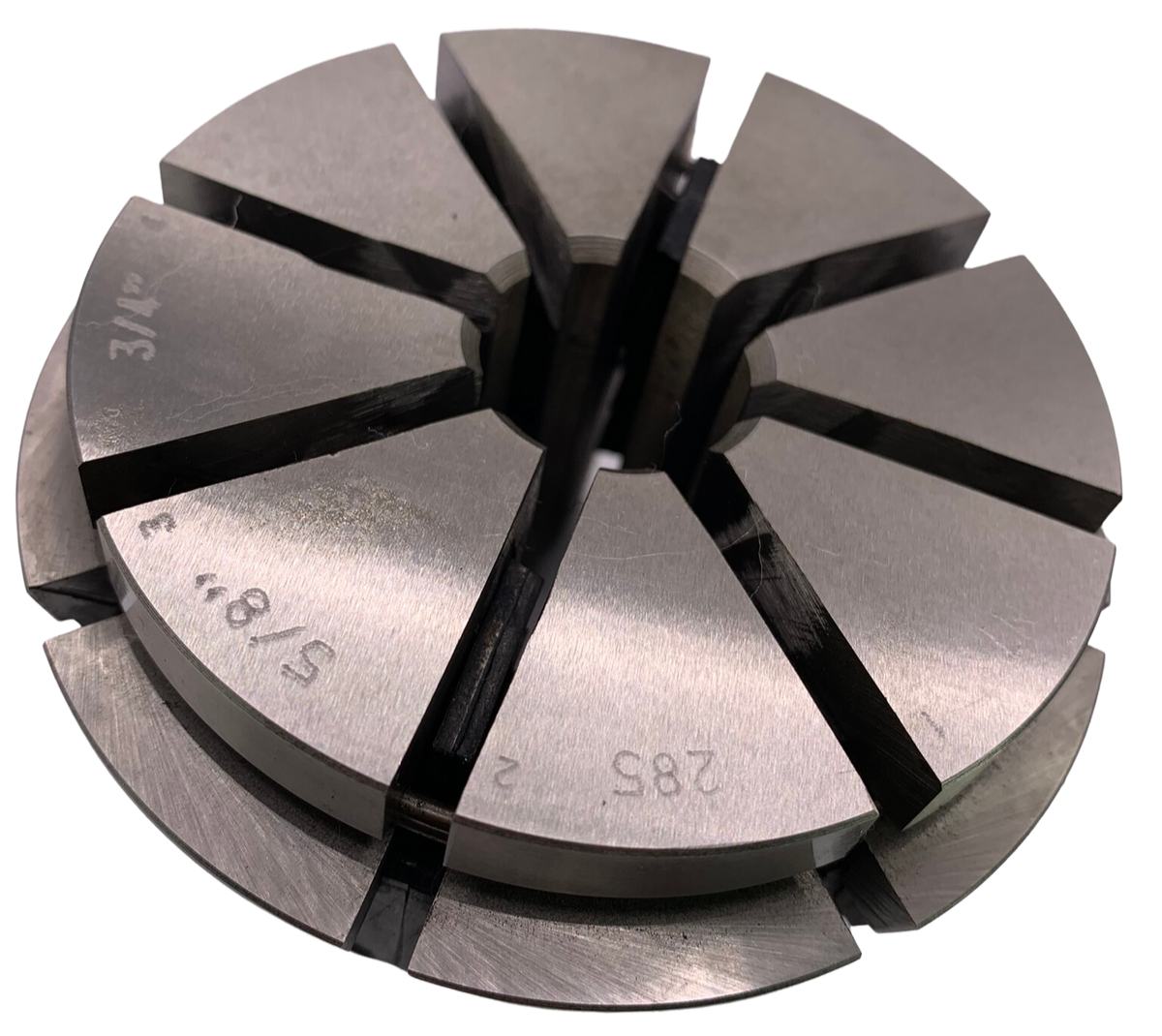

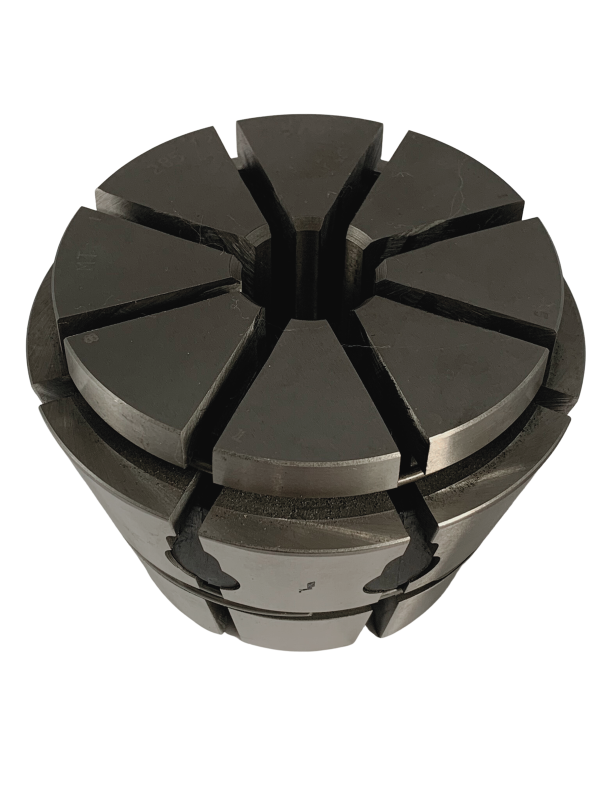

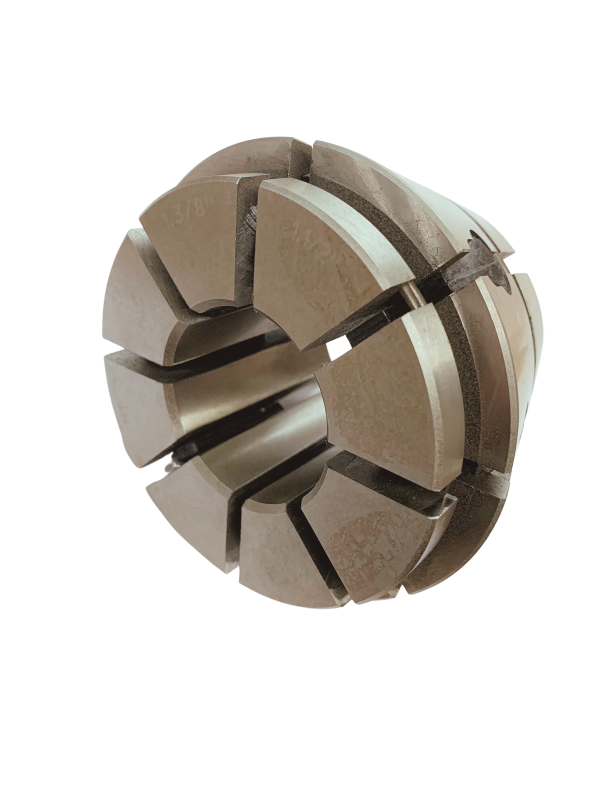

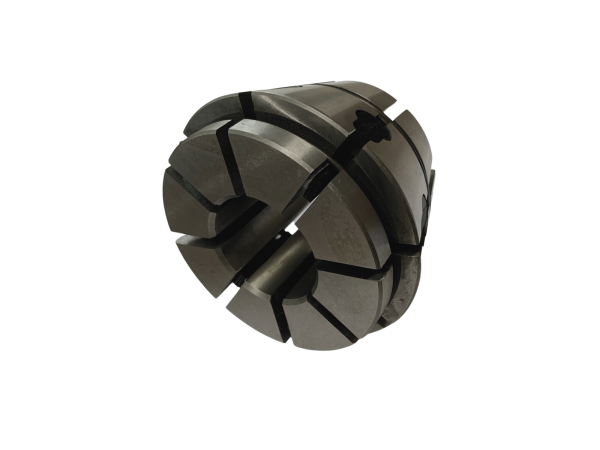

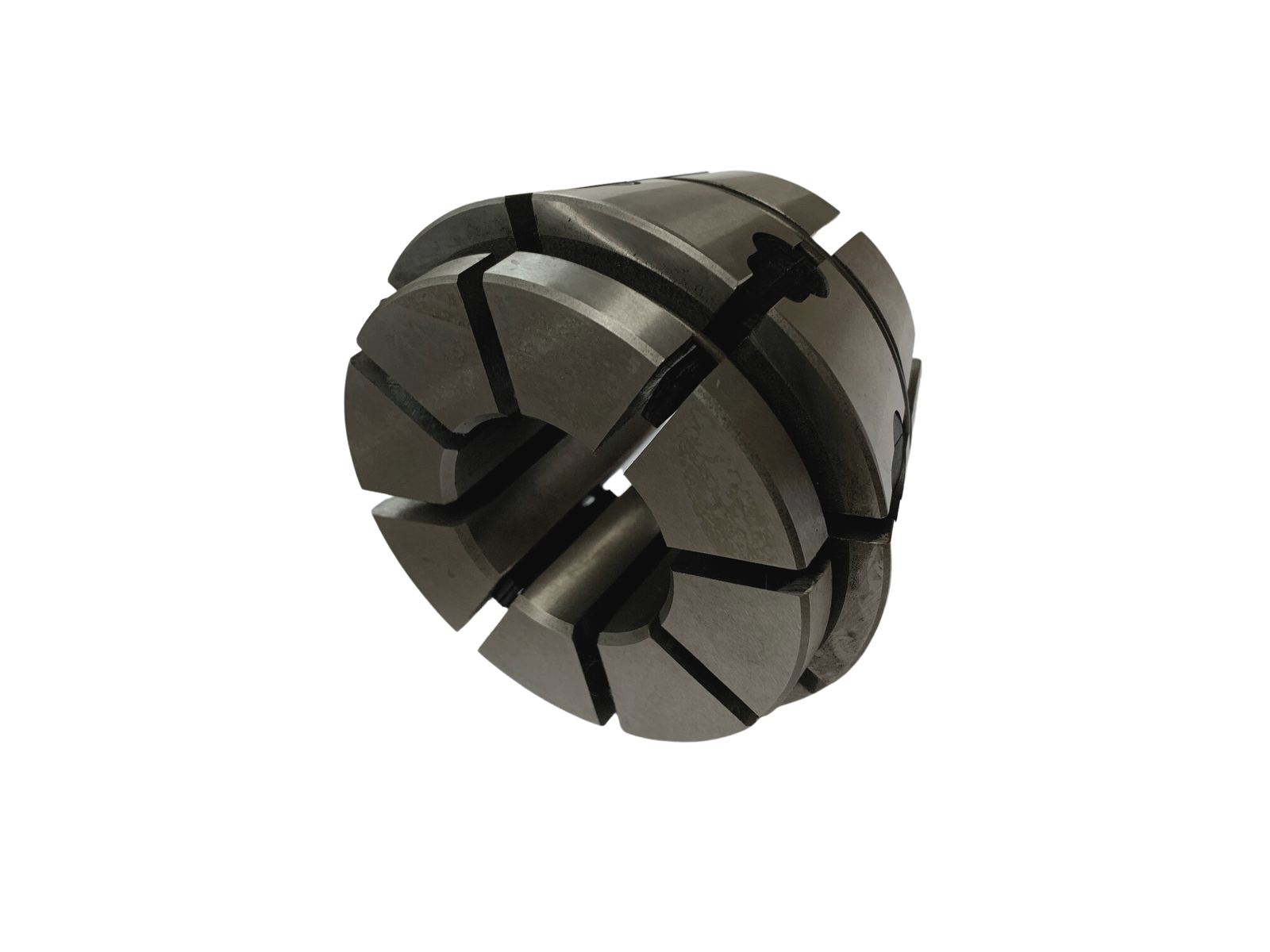

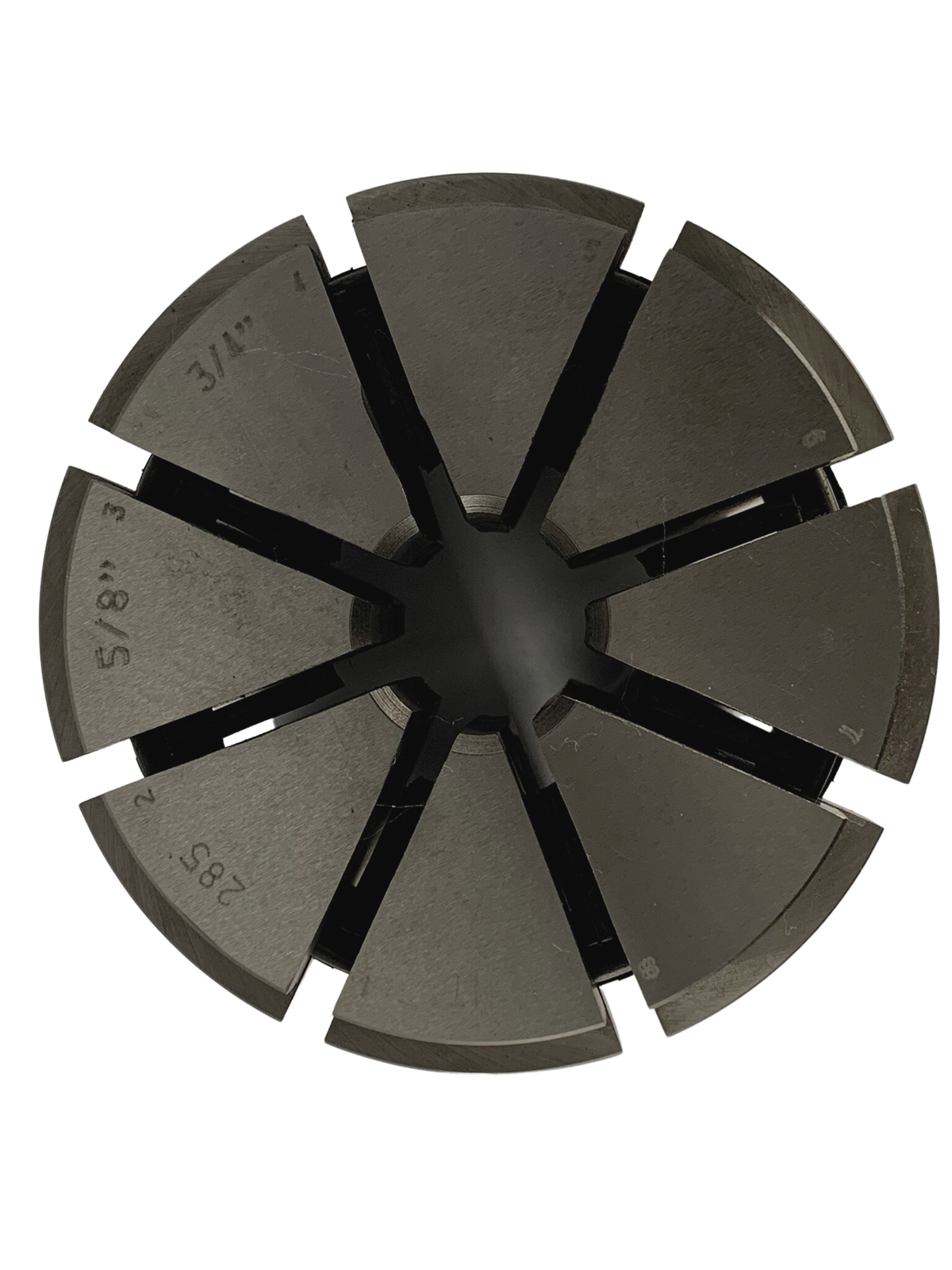

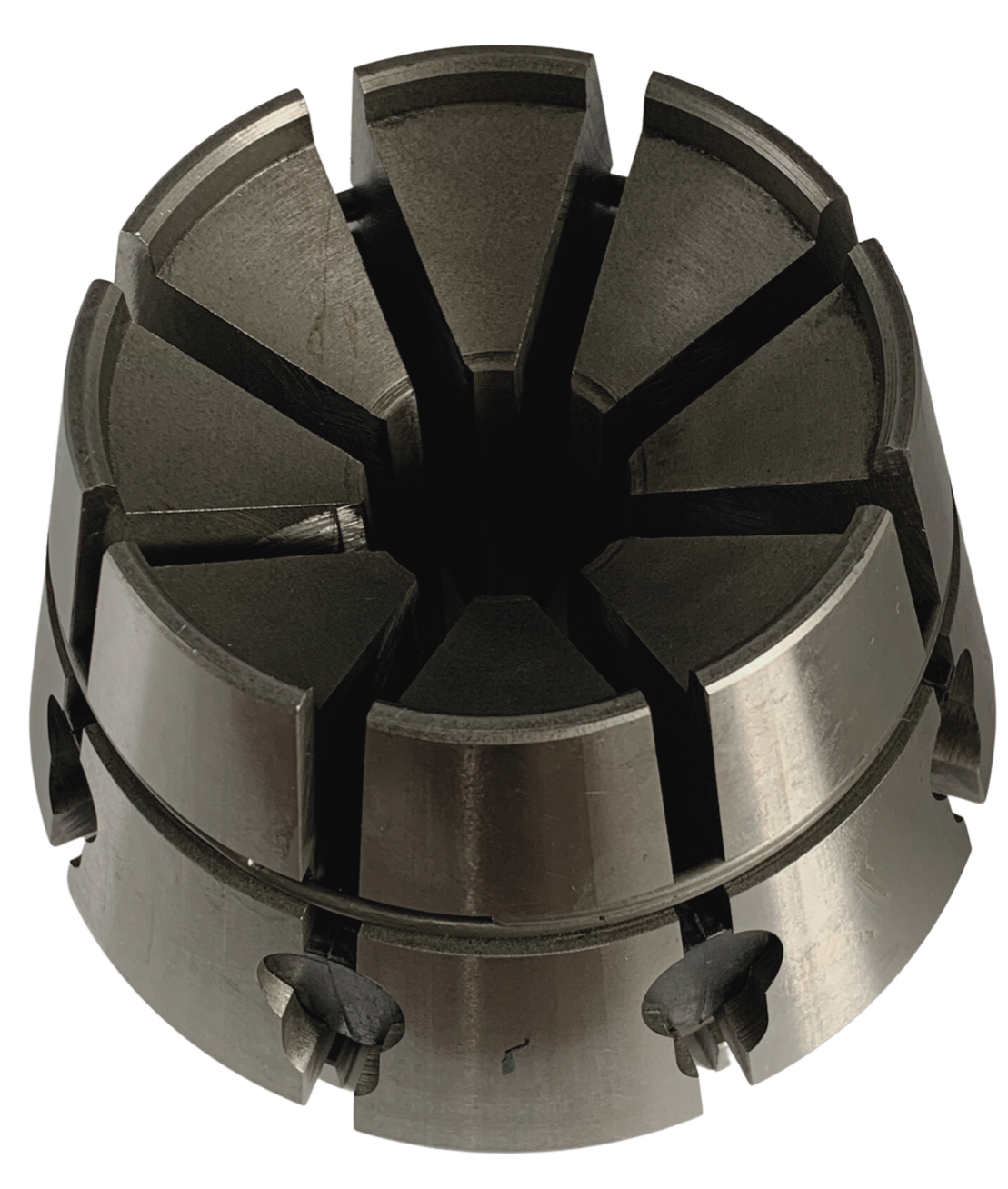

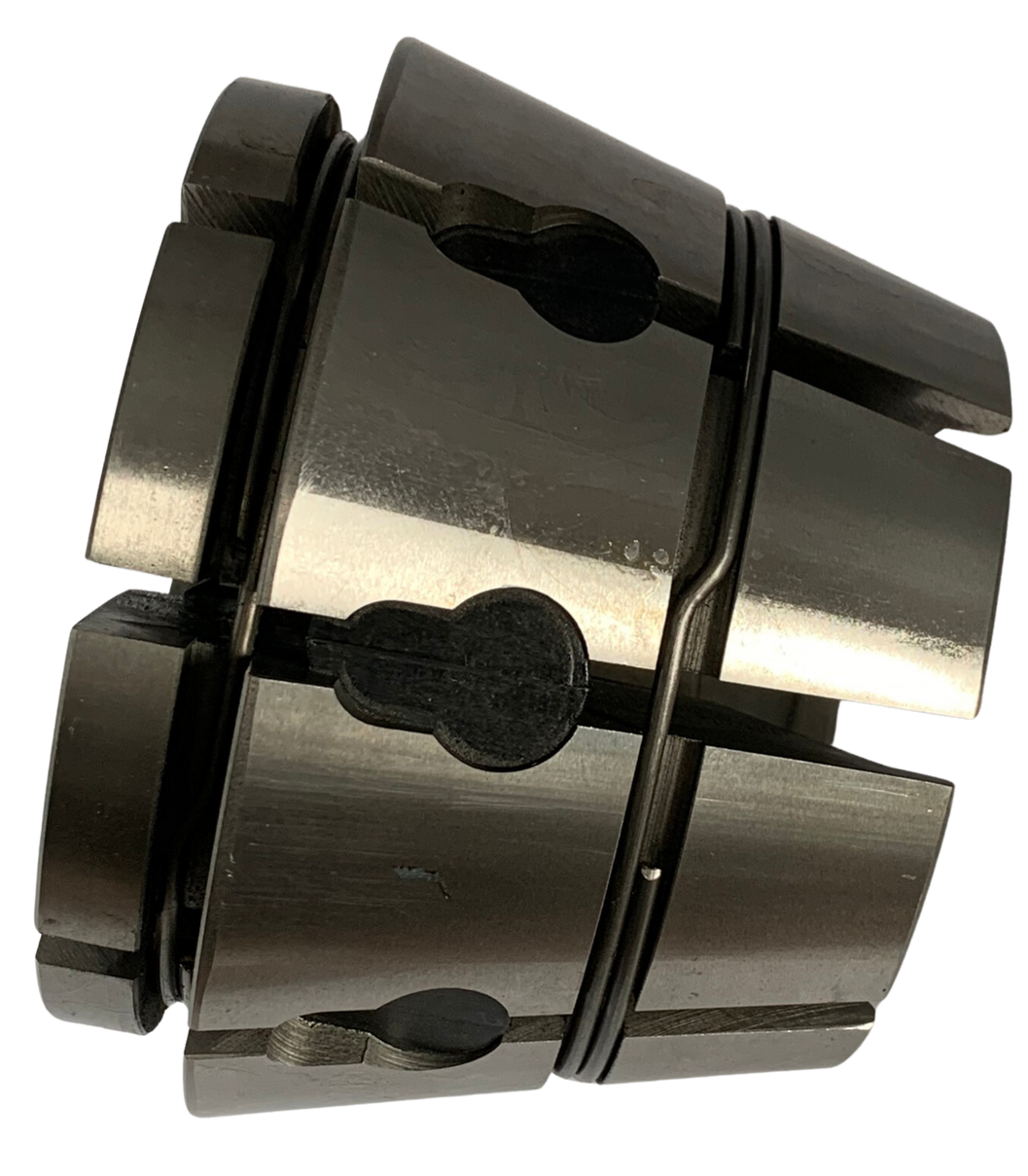

D285 Varibore Round Collet
E Type Collet for 1st Operation Work
Key Features
- 1/8" Range per Collets
- Sizes Up To 66mm Capacity

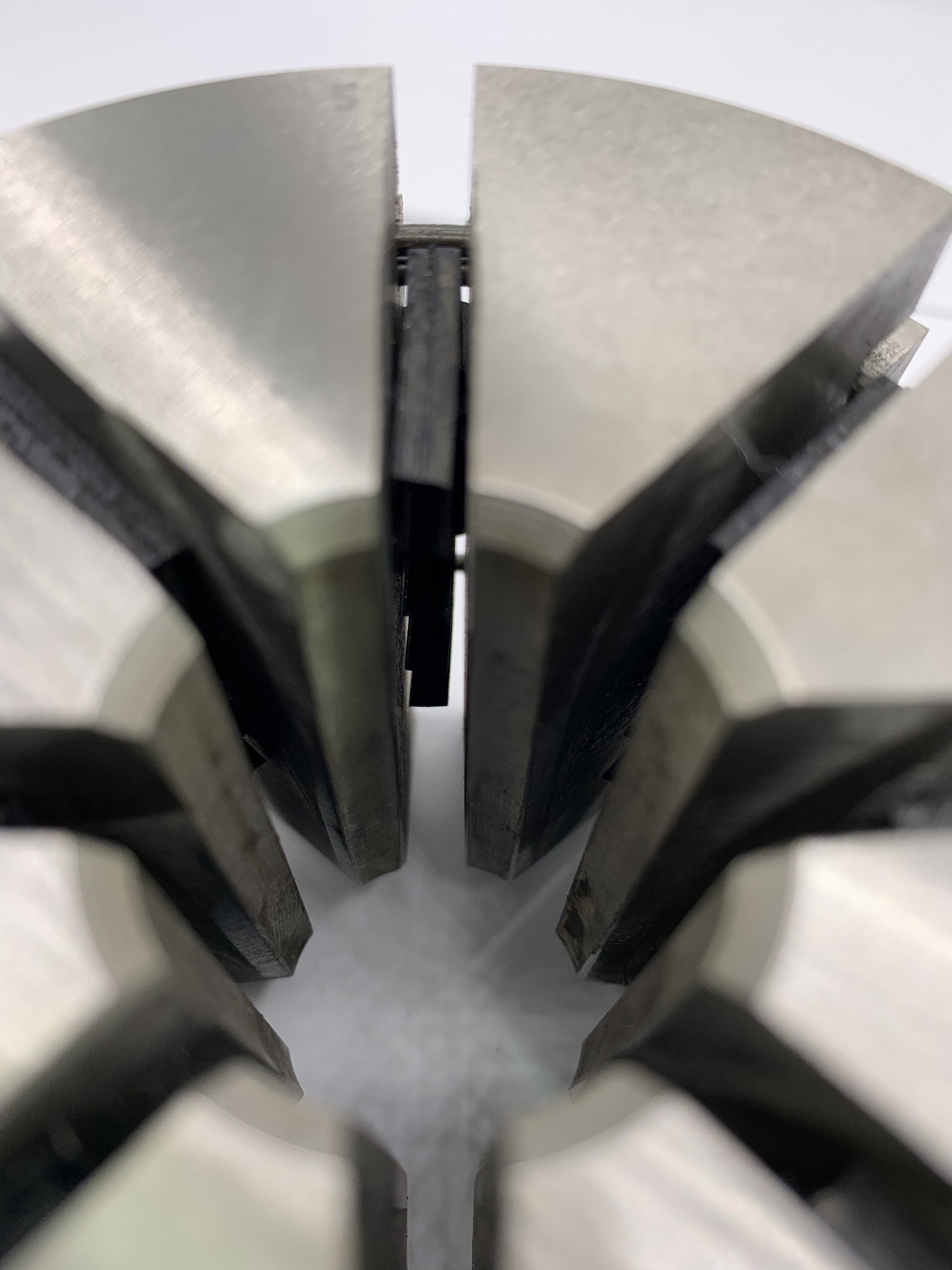

- Smooth Bore as Standard, Other Finishes Available
- Special Profiles Available
Description
D285 Varibore round collets are to suit 66mm capacity collet chucks. Also known as T285, these collets have a 3.175mm range. Supplied smooth as standard we can supply with alternate finishes and in special profiles. D285 suit the following collet chucks: Klamp CRS66 Klamp QCRS66 Crawford CDC66 Crawford CDC-66-S Crawford QC-66
Estimated delivery: Next Day (subject to availability)
Dimensions
| # | Part No | Range (mm) | Range (inch) | Bore | Price | ||
|---|---|---|---|---|---|---|---|
| 1 | D285R-E02 | 3.17 - 6.35 | 1/8 - 1/4" | Smooth | £263.24 | ||
| 1 | D285R-E03 | 6.35 - 9.52 | 1/4 - 3/8" | Smooth | £198.83 | ||
| 1 | D285R-E04 | 9.52 - 12.7 | 3/8 - 1/2" | Smooth | £198.83 | ||
| 1 | D285R-E05 | 12.7 - 15.87 | 1/2 - 5/8" | Smooth | £198.83 | ||
| 1 | D285R-E06 | 15.87 - 19.05 | 5/8 - 3/4" | Smooth | £198.83 | ||
| 1 | D285R-E07 | 19.05 - 22.22 | 3/4 - 7/8" | Smooth | £198.83 | ||
| 1 | D285R-E08 | 22.22 - 25.4 | 7/8 - 1" | Smooth | £198.83 | ||
| 1 | D285R-E09 | 25.4 - 28.57 | 1 - 1 1/8" | Smooth | £198.83 | ||
| 1 | D285R-E10 | 28.57 - 31.75 | 1 1/8 - 1 1/4" | Smooth | £198.83 | ||
| 1 | D285R-E11 | 31.75 - 34.92 | 1 1/4 - 1 3/8" | Smooth | £198.83 | ||
| 1 | D285R-E12 | 34.92 - 38.1 | 1 3/8 - 1 1/2" | Smooth | £198.83 | ||
| 1 | D285R-E13 | 38.1 - 41.27 | 1 1/2 - 1 5/8" | Smooth | £198.83 | ||
| 1 | D285R-E14 | 41.27 - 44.45 | 1 5/8 - 1 3/4" | Smooth | £198.83 | ||
| 1 | D285R-E15 | 44.45 - 47.62 | 1 3/4 - 1 7/8" | Smooth | £198.83 | ||
| 1 | D285R-E16 | 47.62 - 50.8 | 1 7/8 - 2" | Smooth | £198.83 | ||
| 1 | D285R-E17 | 50.8-53.97 | 2 - 2 1/8" | Smooth | £198.83 | ||
| 1 | D285R-E18 | 53.97 - 57.15 | 2 1/8 - 2 1/4" | Smooth | £198.83 | ||
| 1 | D285R-E19 | 57.15 - 60.32 | 2 1/4 - 2 3/8" | Smooth | £198.83 | ||
| 1 | D285R-E20 | 60.32 - 63.5 | 2 3/8 - 2 1/2" | Smooth | £198.83 | ||
| 1 | D285R-E21 | 63.5 - 66.67 | 2 1/2 - 2 5/8" | Smooth | £198.83 |
