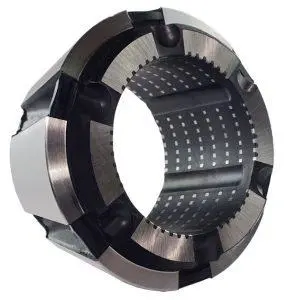

DRFC673 Smooth Rubberflex Collets
To Suit 42mm Capacity Collet Chuck
Key Features
- 45mm Capacity in a 42mm Collet Chuck
- Perfect sealing against coolant and swarf
- 2mm range per collet
- More surface area = higher torque transfer
Description
DRFC673 Smooth Rubberflex Collets with same accuracy specification as standard spring collets. The Elastic rubber-metal vulcanization allows a clamping range of +/- 1mm to the nominal diameter. This reduces the need for numerous changeovers when clamping different diameters, saving your time. Instead of purchasing four additional spring collets to cover the same diameter range you can save up to 50% in investment costs with one Rubber-Flex collet.Rubber-Flex collets, type DRFC 673 (173E equivalent) and DRFC 677 (185E equivalent) are available in “Smooth” or “Full Grip” design. “Smooth” collets are ideal for 2nd Operation work or sensitive workpieces with surfaces that should not be marked. “Full Grip” collets have wider steel segments provide a higher rigidity. These DRFC673 Smooth Rubberflex Collets have an increased clamping force and are especially designed to machine bar material with wide clamping tolerances and high torque.
DRFC673 Serrated Collets
Estimated delivery: Next Day (subject to availability)
Dimensions
| # | Part No | Type | Range (mm) | Price | ||
|---|---|---|---|---|---|---|
| 1 | DRFC673-R09 | Smooth | 7-9 | £ Price on application | n/a | |
| 1 | DRFC673-R11 | Smooth | 9-11 | £ Price on application | n/a | |
| 1 | DRFC673-R13 | Smooth | 11-13 | £ Price on application | n/a | |
| 1 | DRFC673-R15 | Smooth | 13-15 | £ Price on application | n/a | |
| 1 | DRFC673-R17 | Smooth | 15-17 | £ Price on application | n/a | |
| 1 | DRFC673-R19 | Smooth | 17-19 | £ Price on application | n/a | |
| 1 | DRFC673-R21 | Smooth | 19-21 | £ Price on application | n/a | |
| 1 | DRFC673-R23 | Smooth | 21-23 | £ Price on application | n/a | |
| 1 | DRFC673-R25 | Smooth | 23-25 | £0.00 | ||
| 1 | DRFC673-R27 | Smooth | 25-27 | £0.00 | ||
| 1 | DRFC673-R29 | Smooth | 27-29 | £0.00 | ||
| 1 | DRFC673-R31 | Smooth | 29-31 | £0.00 | ||
| 1 | DRFC673-R33 | Smooth | 31-33 | £0.00 | ||
| 1 | DRFC673-R35 | Smooth | 33-35 | £0.00 | ||
| 1 | DRFC673-R37 | Smooth | 35-37 | £0.00 | ||
| 1 | DRFC673-R39 | Smooth | 37-39 | £0.00 | ||
| 1 | DRFC673-R41 | Smooth | 39-41 | £0.00 |
