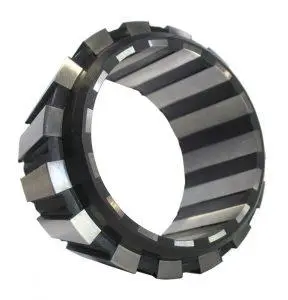

DRFC677 Serrated Rubberflex Collets

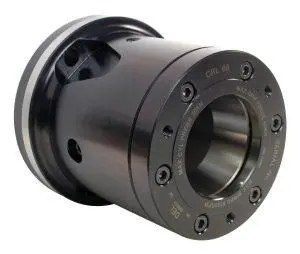

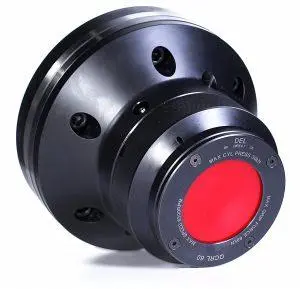

To Suit 60mm Capacity Collet Chuck

Key Features

  • 65mm Capacity in a 60mm Collet Chuck
  • Perfect sealing against coolant and swarf
  • 2mm range per collet
  • More surface area = higher torque transfer

Description

With same accuracy specification as standard spring collets, the Elastic rubber-metal vulcanization allows a clamping range of +/- 1mm to the nominal diameter. This reduces the need for numerous changeovers whenclamping different diameters, saving your time. Instead of purchasing four additional spring collets to cover the same diameter range you can save up to 50% in investment costs with one Rubber-Flex collet.Rubber-Flex collets, type DRFC 673 (173E equivalent) and DRFC 677 (185E equivalent) are available in “Smooth” or “Full Grip” design. “Smooth” collets are ideal for 2nd Operation work or sensitive workpieces with surfaces that should not be marked. “Full Grip” collets have wider steel segments provide a higher rigidity. These double-serrated collets have an increased clamping force and are especially designed to machine bar material with wide clamping tolerances and high torque.

Estimated delivery: Next Day (subject to availability)

Dimensions

# Part No Type Range (mm) Price
1 DRFC677-R21R Serrated 19-21 £170.59
1 DRFC677-R23R Serrated 21-23 £170.59
1 DRFC677-R25R Serrated 23-25 £170.59
1 DRFC677-R27R Serrated 25-27 £170.59
1 DRFC677-R29R Serrated 27-29 £170.59
1 DRFC677-R31R Serrated 29-31 £170.59
1 DRFC677-R33R Serrated 31-33 £170.59
1 DRFC677-R35R Serrated 33-35 £170.59
1 DRFC677-R37R Serrated 35-37 £170.59
1 DRFC677-R39R Serrated 37-39 £170.59
1 DRFC677-R41R Serrated 39-41 £170.59
1 DRFC677-R43R Serrated 41-43 £170.59
1 DRFC677-R45R Serrated 43-45 £170.59
1 DRFC677-R47R Serrated 45-47 £170.59
1 DRFC677-R49R Serrated 47-49 £170.59
1 DRFC677-R51R Serrated 49-51 £170.59
1 DRFC677-R53R Serrated 51-53 £170.59
1 DRFC677-R55R Serrated 53-55 £170.59
1 DRFC677-R57R Serrated 55-57 £170.59
1 DRFC677-R59R Serrated 57-59 £170.59
1 DRFC677-R61R Serrated 59-61 £170.59
