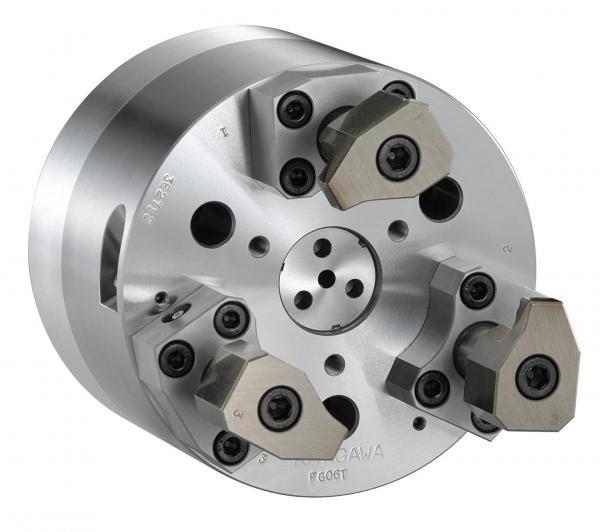

FG…A Series (With Adaptor)
Three Jaw Finger Chuck with Adaptor Plate
Key Features
- Equalising mechanism securely grips variable thickness
- Face Clamping Reduces distortion
- Lever finger chucks allow for large thin wall parts
Description
The Kitagawa FG series are speical design finger jaws which rotate in and down to clamp, this make them idela for holding flanges or other speical compounets. They also come with a equalisation mechanism for variable thickness. FG-A Series chucks are supplied with standard adapter plate setups.
Estimated delivery: On Request
Dimensions
| # | Part No | Rotating Stroke | Clamping Stroke | Max. Grip Force (kN) | Max. Speed (RPM) | Price | |
|---|---|---|---|---|---|---|---|
| 1 | FG06A5 | 12 | 8 | 78 | 4000 | £ Price on application | |
| 1 | FG08A6 | 12 | 8 | 105 | 3500 | £ Price on application | |
| 1 | FG10A6 | 12 | 8 | 150 | 3500 | £ Price on application | |
| 1 | FG10A8 | 12 | 8 | 150 | 3500 | £ Price on application | |
| 1 | FG12A6 | 12 | 8 | 200 | 3000 | £ Price on application |
