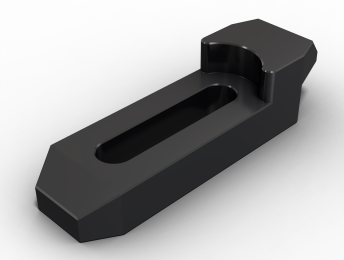

Goose Neck Clamp
For Low Profile Top Clamping
Key Features
- Goose Neck Design gives added Clearance
- Hardened for Longevity
- Chamfered End for Additional Clearance
Description
Goose Neck Clamp. Gooseneck shaped toolmakers clamp reduces the potential interference between tool and workholding. Hardened and Chemi-Blacked for durability and with a chamfer for additional access to the part.
Recommended Parts
SU01 Jig Rest Button
PT07 Clamping Stud
PT04 Flange Nut
SU10 Riser Cylinder
PT22 Washer
The CP03 Goose Neck Clamp is a robust clamping solution engineered to enhance machining precision by minimizing cutter interference. Constructed from high-quality S45C (JIS) / CK45 (DIN) steel, it undergoes heat treatment to achieve a hardness of HRC 32°~38°, ensuring durability and wear resistance. The black oxide surface finish further enhances corrosion resistance, extending the clamp's lifespan. Its low-profile design effectively reduces cutter obstruction, making it ideal for applications requiring unobstructed tool access. Available in various dimensions to accommodate different workpiece sizes, the CP03 is a versatile addition to any machining setup.Estimated delivery: 5-7 Working Days (subject to availability)
Dimensions
| # | Part No | Length (mm) | Width (mm) | Height (mm) | Slot width (mm) | Price | ||
|---|---|---|---|---|---|---|---|---|
| 1 | CP03-12120 | 120 | 36 | 30 | 13 | £26.60 | ||
| 1 | CP03-16150 | 150 | 48 | 48 | 17 | £42.70 | ||
| 1 | CP03-20175 | 175 | 60 | 60 | 21 | £68.25 |
