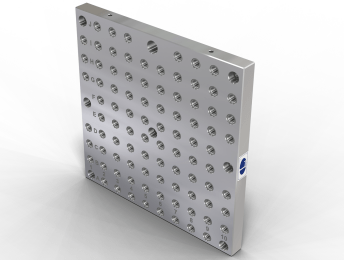

Grid Sub Plate
To Suit Modular Tooling Column
Key Features
- Sturdy Cast Iron Design
- Ground Flat and Parallel
Description
Modular quick change subplate to suit the BP13 modular cube. This plate is gridded to accept standard fixturing parts./
Estimated delivery: 7-10 Working Days (subject to availability)
Dimensions
| # | Part No | Column | Thickness (mm) | Drawings | Price | ||
|---|---|---|---|---|---|---|---|
| 1 | BP15-40400-0400-12 | BP13-400400-0450 | 40 |
|
£1,663.20 | ||
| 2 | BP15-40500-0500-12 | BP13-500500-0555 | 40 |
|
£2,355.62 | ||
| 3 | BP15-40630-0630-12 | BP13-630630-0690 | 40 |
|
£3,362.92 | ||
| 4 | BP15-50800-0800-12 | BP13-800800-0860 | 50 |
|
£5,781.30 | ||
| 5 | BP15-40400-0400-16 | BP13-400400-0450 | 40 |
|
£1,694.00 | ||
| 6 | BP15-40500-0500-16 | BP13-500500-0555 | 40 |
|
£2,402.87 | ||
| 7 | BP15-40630-0630-16 | BP13-630630-0690 | 40 |
|
£3,438.29 | ||
| 8 | BP15-50800-0800-16 | BP13-800800-0860 | 50 |
|
£5,913.37 |
