Gridded Round Base Plate
50mm Grid Sub-Plate for 4th/5th Axis
Key Features
- Allignment Busing and Thread Hole for Quick Accurate Set-ups
- Ground Flat
- Five High Accuracy Location Holes
Description

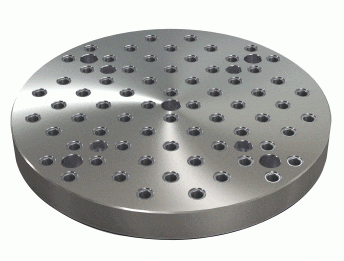

Gridded Round Base Plate. Cast Iron Sub Plate to suit rotary table or indexer. Grid pattern with allignment bushes and threaded inserts for ease of set-up. Ground flat with Locating Holes for precise loading and quick location.
Estimated delivery: 7-10 Working Days (subject to availability)
Dimensions
| # | Part No | Diameter (mm) | Thickness (mm) | Thread Size | Drawings | Price | ||
|---|---|---|---|---|---|---|---|---|
| 1 | BP17-50-0300-12 | 300 | 50 | M12 |
|
£987.70 | ||
| 2 | BP17-50-0400-12 | 400 | 50 | M12 |
|
£1,438.39 | ||
| 3 | BP17-50-0500-12 | 500 | 50 | M12 |
|
£2,031.05 | ||
| 4 | BP17-50-0600-12 | 600 | 50 | M12 |
|
£2,728.84 | ||
| 5 | BP17-50-0500-16 | 500 | 50 | M16 |
|
£2,059.05 | ||
| 6 | BP17-50-0600-16 | 600 | 50 | M16 |
|
£2,785.07 |
