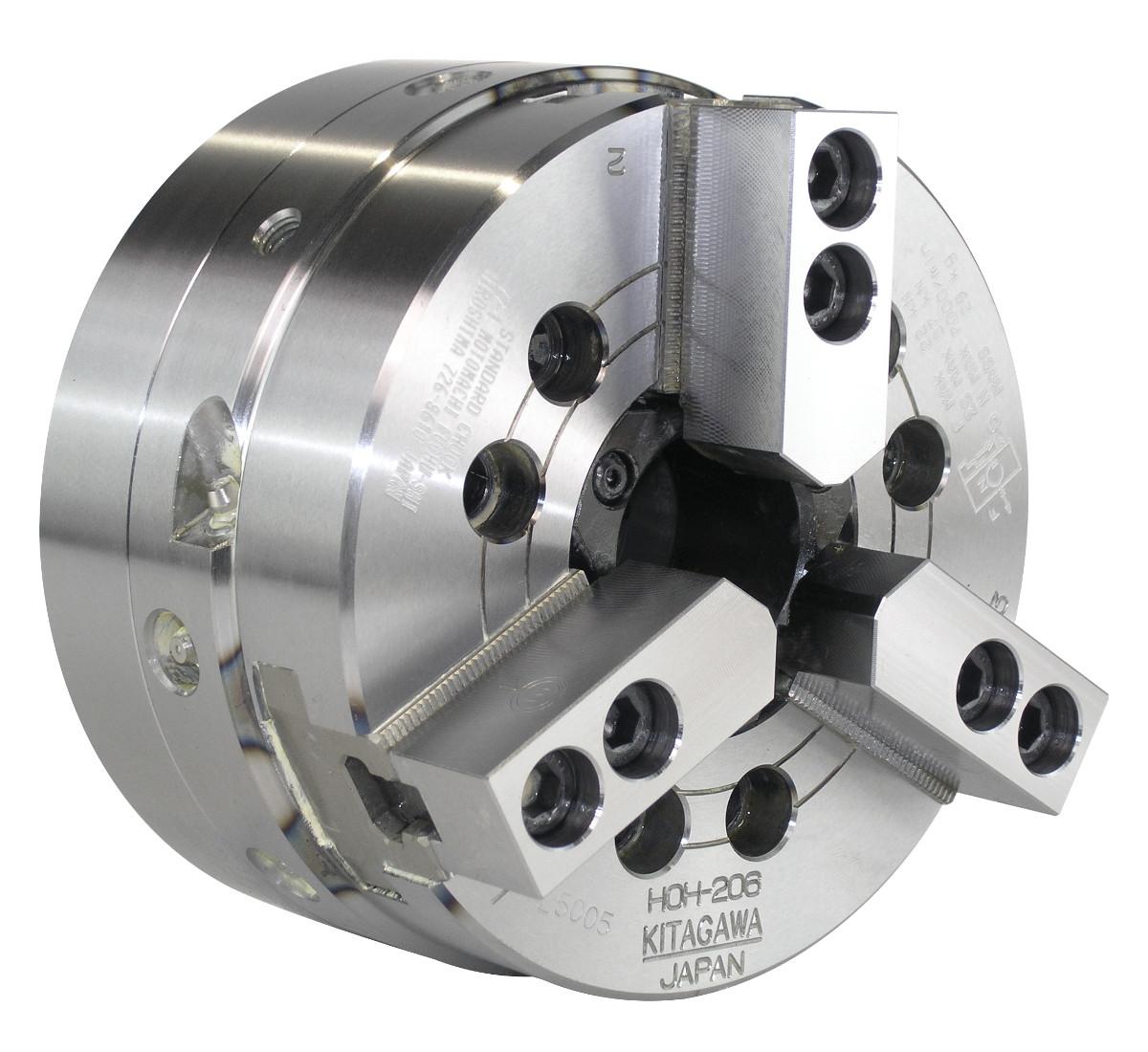

HOH Series
3 Jaw Counter Balanced Power Chuck
Key Features
- Counter Balanced design for secure gripping at high speed
- Compatible with large, readily available, range of jaws
- Built-in spindle nose adaptor for more compact design
- Allows for higher speeds using larger jaws
Description
The HOH series chucks have been design to be counterbalanced. Resulting in a lower reduction of grip force at higher speeds. The counter balanced nature of the chuck allows for the use of larger jaws. That may have resulted in reduced grip using a standard chuck. BL200 series chucks are supplied with a blank drawnut as standard with a set of T-nuts and adaptor plate. Kitagawa chucks are manufactured from high grade alloy steel.
Estimated delivery: On Request
Dimensions
| # | Part No | Spindle Nose | Chuck Bore (mm) | Jaw Stroke Diameter (mm) | Max Grip Force (kN) | Max. Speed (rpm) | Drawings | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | HOH-206 | A2-5 | 45 | 5.5 | 57 | 7000 |
|
£3,222.00 | ||
| 2 | HOH-208 | A2-6 | 52 | 7.4 | 84 | 6000 |
|
£3,346.00 | ||
| 3 | HOH-10K | A2-8 | 65 | 8.8 | 99 | 4500 |
|
£4,919.00 | ||
| 4 | HOH-12K | A2-8 | 78 | 10.6 | 129 | 3500 |
|
£5,964.00 | ||
| 5 | HOH-15K | A2-11 | 117.5 | 10.6 | 180 | 2800 |
|
£8,475.00 |
