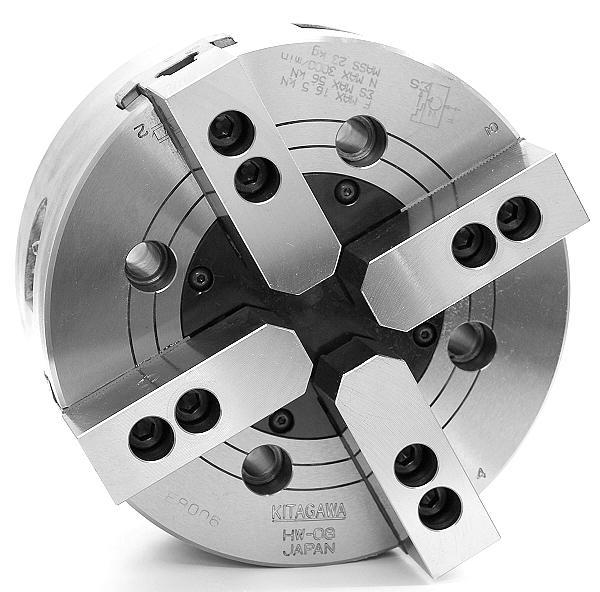

HW Series
4 Jaw Closed Centre Power Chuck
Key Features
- 2+2 Independent jaws give contact with all four jaws
- Long stroke grip compounets with variable size
- Ideal for square or elliptical parts
- Compatible with large, readily available, range of jaws
Description
The Kitagawa HW Series are four jaw chucks but unlike conventional four jaw chucks. It works off a 2+2 system clamping two jaws independently guarantees gripping with all four jaws unlike standard chucks. HW series chucks are supplied with blank drawnut and a set of t-nuts as standard. Kitagawa chucks are manufactured from high grade alloy steel.
Estimated delivery: On Request
Dimensions
| # | Part No | Jaw Stroke Diameter (mm) | Max Grip Force (kN) | Max. Speed (rpm) | Matching Cylinder | Drawings | Price | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | HW-08 | 13.2 | 28 | 3000 | YW1220R |
|
£5,981.00 | ||
| 2 | HW-10 | 16 | 42 | 2000 | YW1225R |
|
£6,018.00 | ||
| 3 | HW-12 | 16 | 42 | 1500 | YW1225R |
|
£6,908.00 | ||
| 4 | HW-15 | 17 | 54 | 1200 | YW1225R |
|
£10,043.00 |
