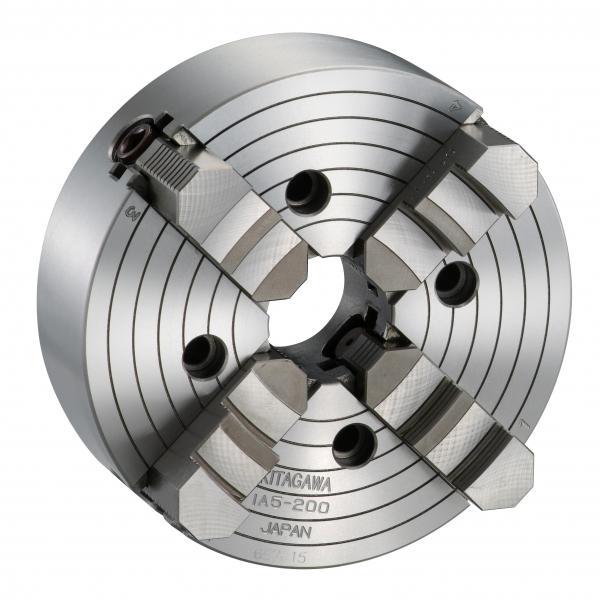

IA Series
4 Jaw Independent Chuck with Taper & Direct Mount
Key Features
- Direct mount to short taper so adapter isn't needed
- Cross guide reduces runout and distortion
- Ideal for irregular shaped components
- Independent jaws allow for off centre holding
Description
Kitagawa IA 4-Jaw Closed Centre Chuck have a steel body and direct mount. Supplied with reversible hard jaws for ID and OD gripping.
Estimated delivery: On Request
Dimensions
| # | Part No | Spindle Nose | Chuck Bore (mm) | Max. Grip Force (kN) | Max. Speed (rpm) | Price | ||
|---|---|---|---|---|---|---|---|---|
| 1 | IA 5-200 | A2-5 | 50 | 10 | 3600 | £1,558.00 | ||
| 1 | IA 6-250 | A2-6 | 55 | 15 | 3000 | £2,011.00 | ||
| 1 | IA 6-300 | A2-6 | 65 | 16 | 2000 | £2,406.00 | ||
| 1 | IA 6-350 | A2-6 | 75 | 16 | 2000 | £3,091.00 | ||
| 1 | IA 6-400 | A2-6 | 75 | 20 | 1800 | £4,154.00 | ||
| 1 | IA 6-450 | A2-6 | 80 | 23 | 1200 | £5,351.00 | ||
| 1 | IA 8-300 | A2-8 | 75 | 16 | 2000 | £3,533.00 | ||
| 1 | IA8-350-0 | A2-8 | 75 | 20 | 2000 | £4,279.00 | ||
| 1 | IA8-400-0 | A2-8 | 90 | 23 | 1800 | £5,709.00 | ||
| 1 | IA8-450-0 | A2-8 | 100 | 23 | 1200 | £7,100.00 |
