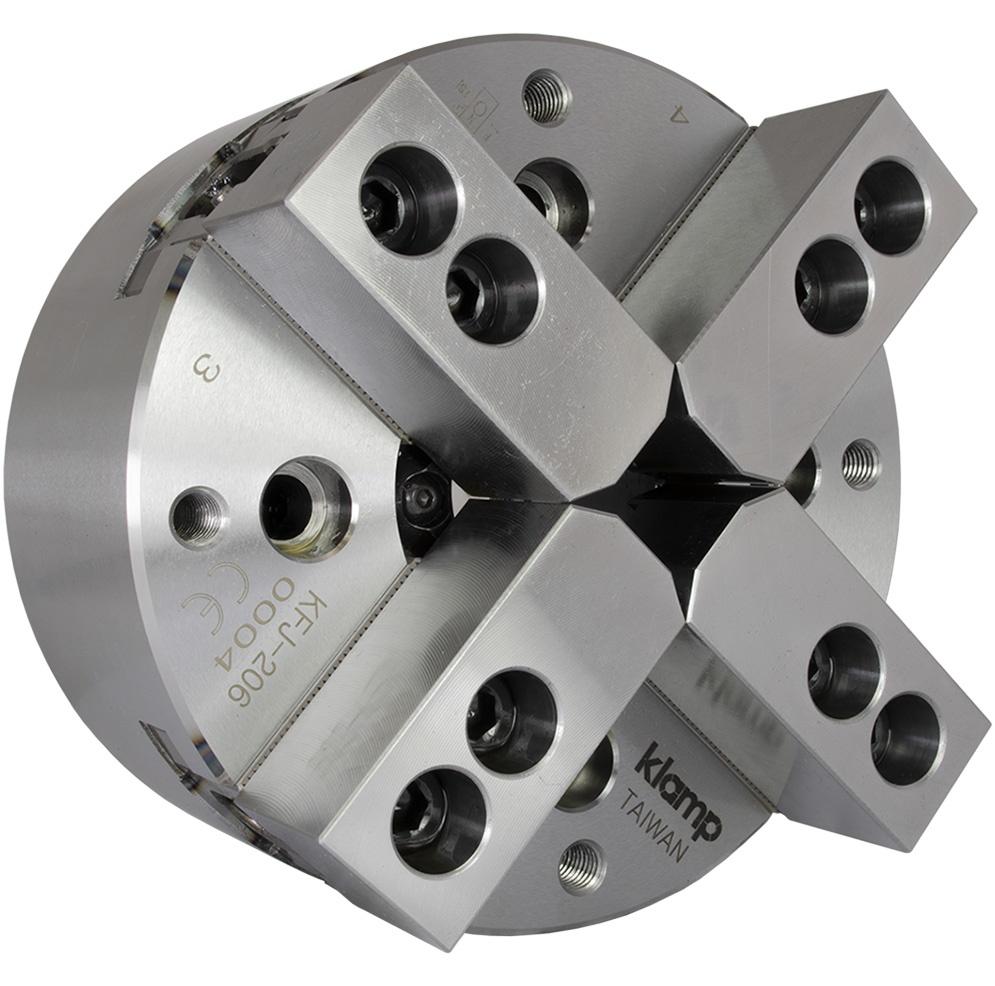

KFJ Series (With Adaptor)
4 Jaw Power Chucks with adaptor
Key Features
- Compatible with large, readily available, range of jaws
- Standard Accessories Available
Description
KFJ Series (With Adaptor) Four jaw wedge style power chucks suitable for irregular work pieces All four-jaws move at once in a single actuation to enable gripping of square, rectangular or irregular work pieces . All sliding control surfaces are hardened and ground for accurancy and long service life with good repeatability. Mounting: Recess mount, requires additional adaptor. Standard Equipment: Chuck includes mounting bolts, T-nuts and jaw mounting bolts. Also included blank drawnut and mounting wrench.
Estimated delivery: 5-7 Working Days (subject to availability)
Dimensions
# | Part No | Chuck Bore (mm) | Jaw Stroke Diameter (mm) | Max Grip Force (kN) | Max. Speed (rpm) | Price | |
---|---|---|---|---|---|---|---|
1 | KFJ-206A5 | 26 | 5.4 | 28.5 | 8000 | £ Price on application | |
1 | KFJ-208A6 | 45 | 5.5 | 4500 | £ Price on application | ||
1 | KFJ-210 A6 Blank Drawnut | 75 | 8.8 | 3200 | £ Price on application | ||
1 | KFJ-210A8 | 75 | 8.8 | 3200 | £ Price on application | ||
1 | KFJ-212A8 | 91 | 10.6 | 2500 | £ Price on application | ||
1 | KFJ-212A11 | 91 | 10.6 | 2500 | £ Price on application | ||
1 | KFJ-215A8 | 117.5 | 10.6 | 134 | 1800 | £ Price on application | |
1 | KFJ-215A11 | 10.6 | 1800 | £ Price on application | |||
1 | KFJ-218A11 | 120 | 134 | 1500 | £ Price on application |
