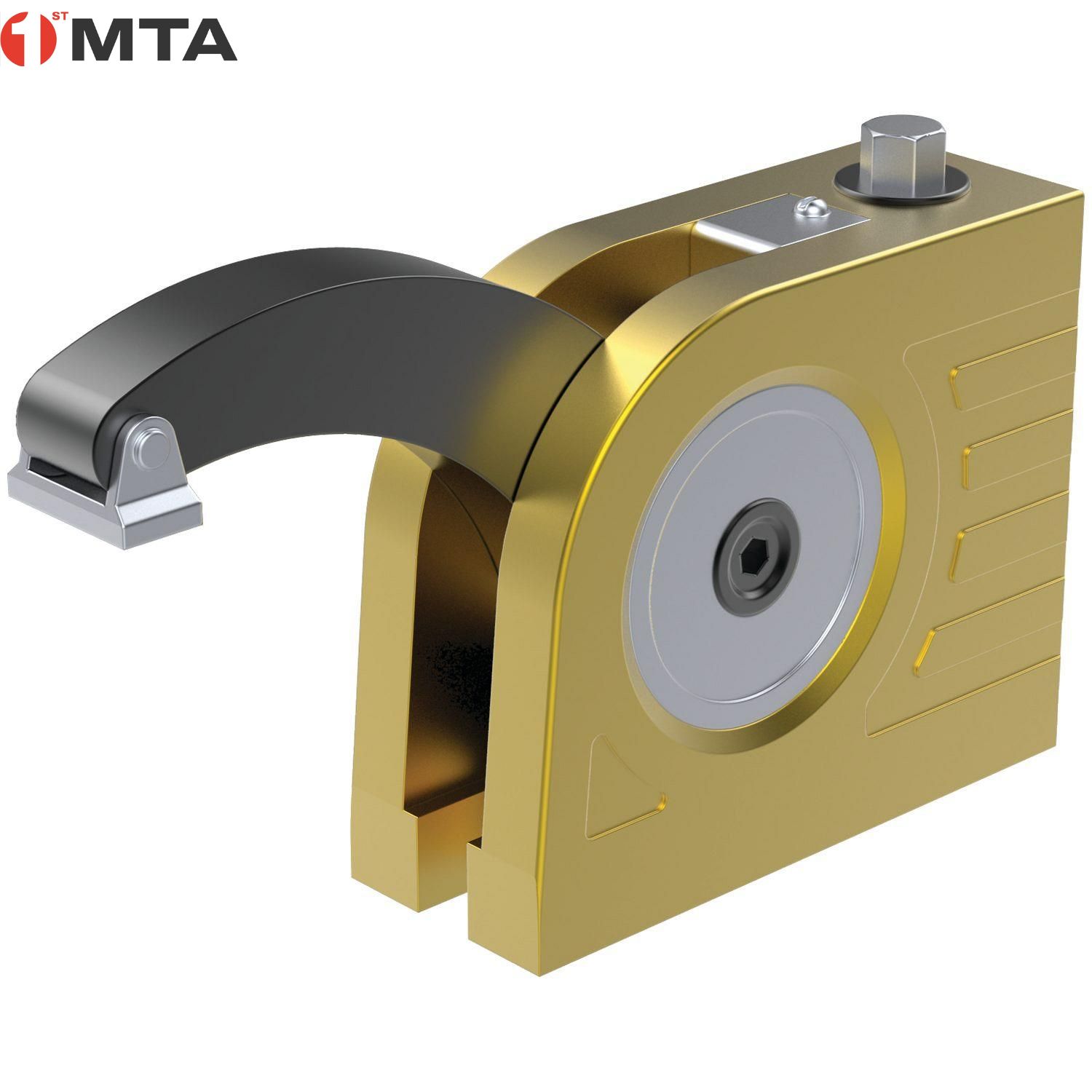

Kopal Mono-Bloc
Deluxe Start-Up Kit
Key Features
- Worm and wheel for high clamp force and long arm travel
- Ideal for short cycle times and odd shaped parts
- Versatile with a range of accessories
- Comprehensive kit indluding risers and extension arm
Description

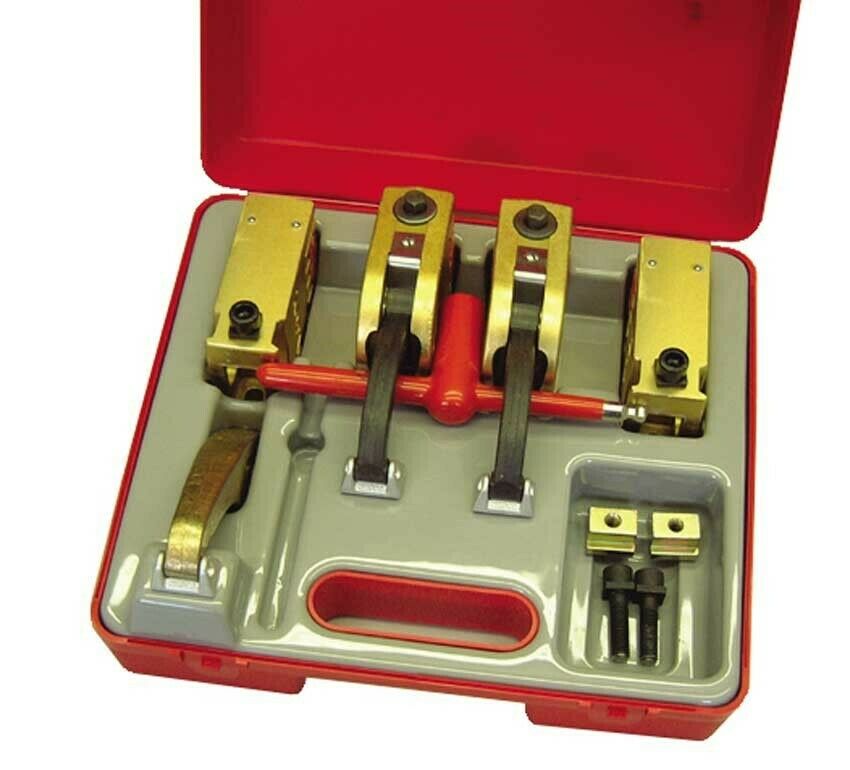

Kopal Mono-Bloc is one of the fastest and strongest milling clamps available anywhere. These clamps are easily set up and broken down, making them ideal for odd-shaped parts and short cycle times. The worm-and-gear design ensures that the clamp will not loosen with use and provides a lot of clamp arm travel. Kit includes: (2) standard-duty Mono-Bloc Clamps with 2 5/8” arm, (2) standard-duty Riser Blocks, (1) Extension Arm, (1) standard-duty T-Wrench, (2) M10x35mm screws, (2) M10x40mm screws, (2) T-nuts
Estimated delivery: 3-5 Working Days (subject to availability)

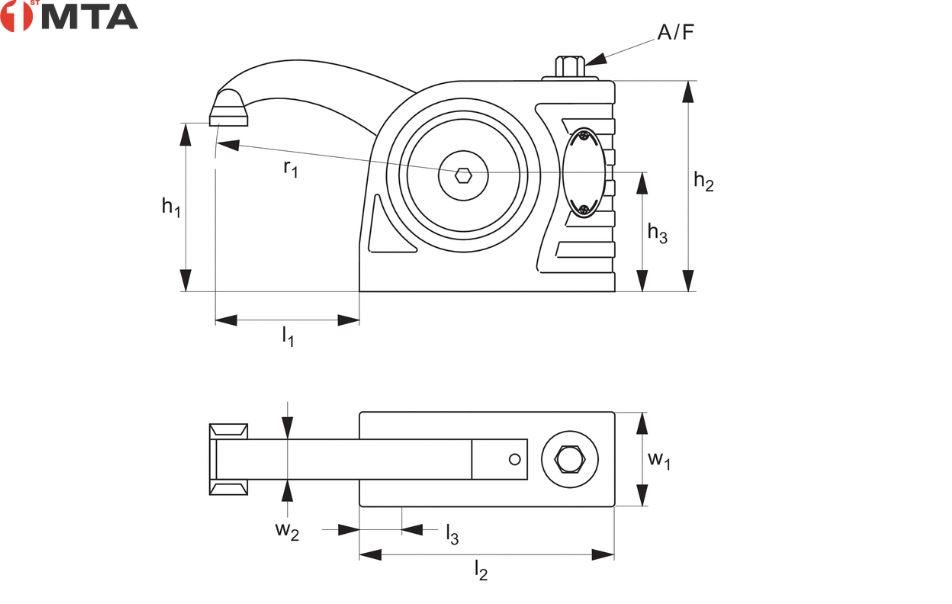

Dimensions
| # | Part No | Included T-nuts | Clamp type | Max clamp force (N) | Extended height (mm) | Extended Reach (mm) | Mounting screw | Price | |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 25725 | 1/2" | Mono Bloc | 16000 | 176 | 143 | M10 | £ Price on application | |
| 1 | 25727 | 9/16" | Mono Bloc | 16000 | 176 | 143 | M10 | £ Price on application | |
| 1 | 25729 | 5/8" | Mono Bloc | 16000 | 176 | 143 | M10 | £ Price on application | |
| 1 | 25731 | 3/4" | Mono Bloc | 16000 | 176 | 143 | M10 | £ Price on application |
