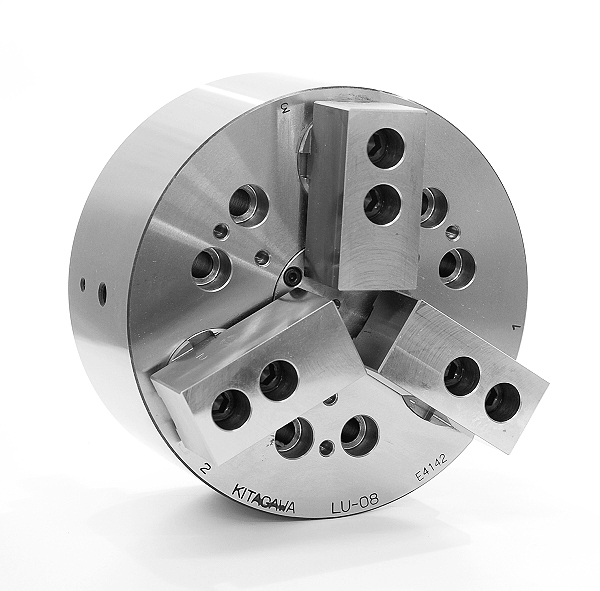

LU Series (With Adaptor)
Pull Back Level Lock Power Chuck with Adaptor Plate
Key Features
- Economical pull back chuck
- Long jaw stroke
- Stable gripping accuracy
Description
Kitagawa chucks are manufactured from high grade alloy steel. The Kitagawa LU-A Series (With Adaptor) are an economic pull lock chucks for external gripping for heavy cut machining. While giving excellent accuracy and repeatability.
Estimated delivery: On Request
Dimensions
| # | Part No | Jaw Stroke | Max Grip Force (kN) | Max. Speed (rpm) | Price | ||
|---|---|---|---|---|---|---|---|
| 1 | LU06A5 | 7.2 | 25.2 | 3500 | £2,752.00 | ||
| 1 | LU08A6 | 7.2 | 45 | 3000 | £2,836.00 | ||
| 1 | LU10A6 | 10.8 | 60 | 2500 | £3,645.00 | ||
| 1 | LU10A8 | 10.8 | 60 | 2500 | £3,645.00 | ||
| 1 | LU12A6 | 10.8 | 75 | 2000 | £5,686.00 | ||
| 1 | LU12A8 | 10.8 | 75 | 2000 | £5,686.00 |
