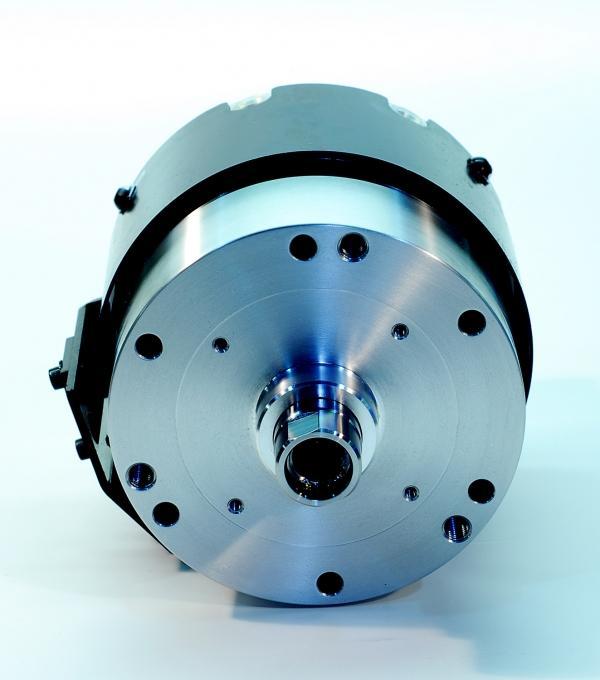

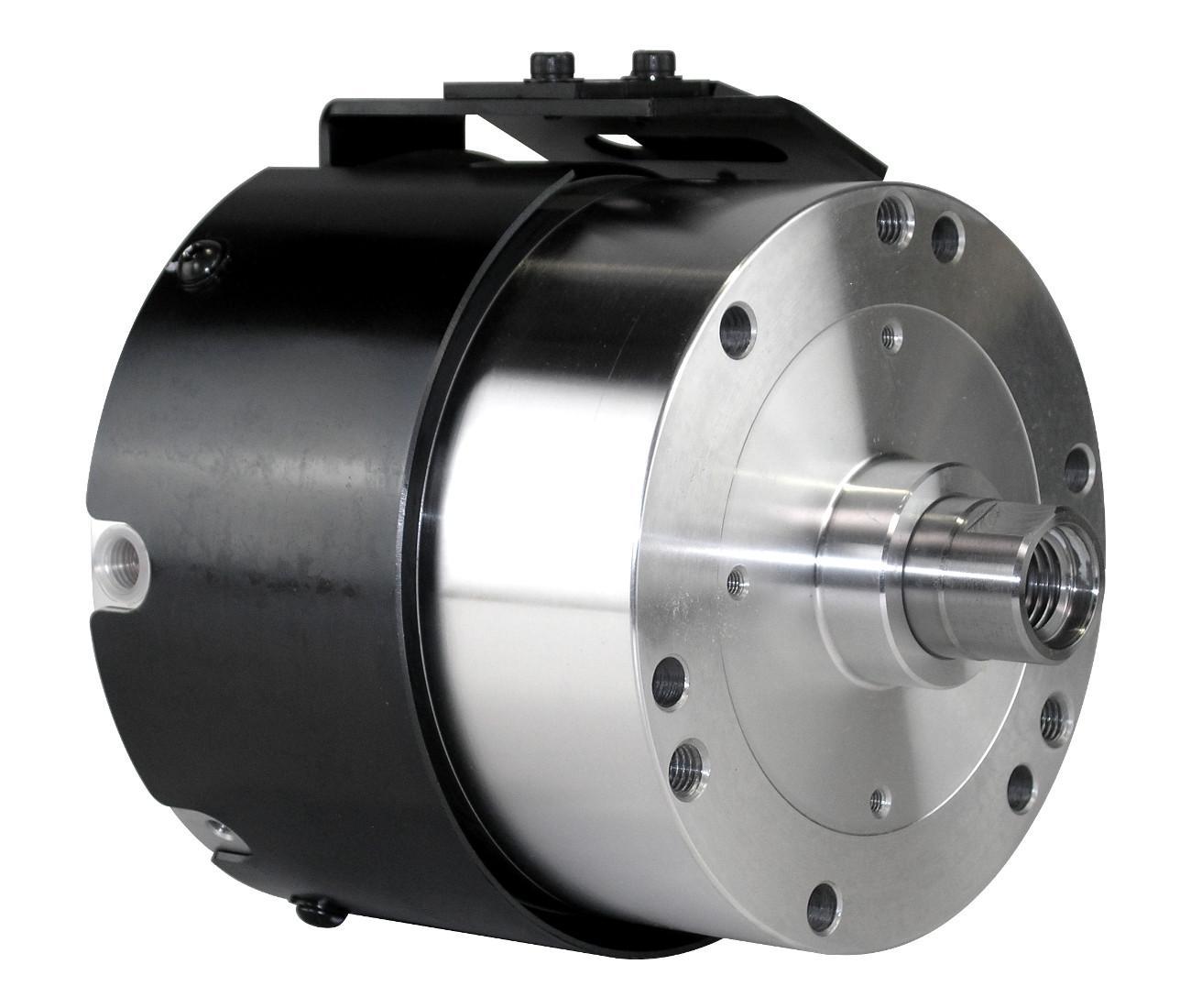

M Series Cylinder
Closed Centre Hydraulic Cylinder
Key Features
- Compact and lightweight
- Built in check valve and pressure relief valve
- Built in sensor switches
- Optional through coolant or air
Description
Closed centre cylinder with compact design and built in Rotary Joint for through air or coolant capacity. Features include built-in check and pressure relief valve along with stroke sensor switches as well as rotary joint.
Estimated delivery: Next Day (subject to availability)
Dimensions
| # | Part No | Through media | Stroke (mm) | Pull Force (kN) | Speed (rpm) | Price | ||
|---|---|---|---|---|---|---|---|---|
| 1 | M1120HA21D | Air | 20 | 28 | 6000 | £3,262.00 | ||
| 1 | M1120HB21N | Coolant | 20 | 28 | 6000 | £3,439.00 | ||
| 1 | M1120HC21N | None | 20 | 28 | 6000 | £2,157.00 | ||
| 1 | M1221HA21N | Air | 21 | 39 | 6000 | £3,375.00 | ||
| 1 | M1221HB21N | Coolant | 21 | 39 | 6000 | £3,556.00 | ||
| 1 | M1221HC21N | None | 21 | 39 | 6000 | £2,173.00 | ||
| 1 | M1330HA21N | Air | 30 | 47 | 6000 | £3,715.00 | ||
| 1 | M1330HB21N | Coolant | 30 | 47 | 6000 | £3,949.00 | ||
| 1 | M1330HC21N | None | 30 | 47 | 6000 | £2,371.00 |
