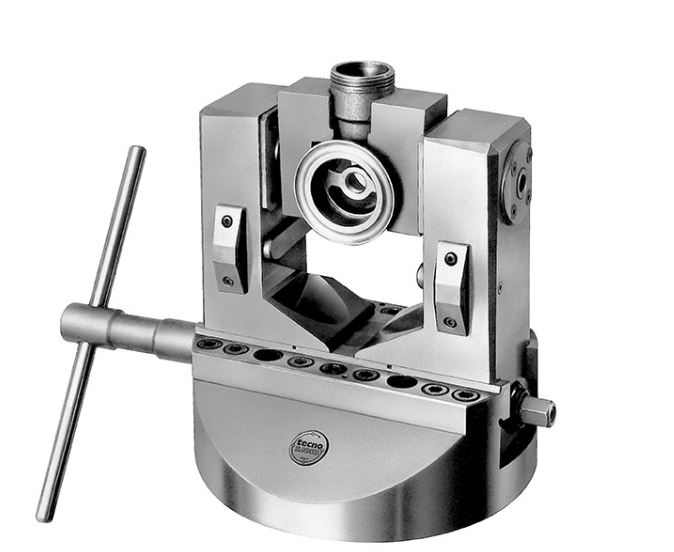

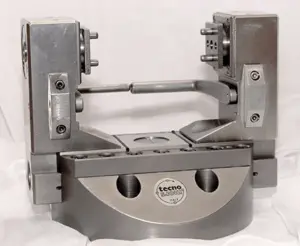

MADV Indexing Chuck

With Manual Clamping and Indexing

Key Features

  • Large Jaw Stroke allows for clamping of complex profiles
  • Good tool clearance thanks to the chuck shape
  • Versions with long arms for workpieces that need a large area of rotation
  • indexing device allowing a quick change between the multiple working axes

Description

Chucks series MADV are self-centering. In version MADV jaws clamping is manual thanks to an operating key and manual indexing system.• made in special high resistance hardened and cementing 60HRC steel UNI18NiCrMo5, to maintain a high degree of precision, reliability and quality• High precision jaw slide ways• indexing movement simple and reliable: a conical shutter guarantees the mechanical indexing. Indexing precision ±1’30”• sealed against coolant, swarf and dust• constant and long lasting precision• easy installation to the machine.• standard includes four 90° indexing positions and one at 45°.

Estimated delivery: 5-7 Working Days (subject to availability)

Dimensions

# Part No Diameter (mm) Max. Closing Force (N) Max. Traction Force (N) Chuck Opening (mm) Chuck Closing (mm) Max. Rotation (rpm) Price
1 MADV170C 168 9000 60 95 48 1700 £ Price on application
1 MADV180C 180 10000 80 100 55 1600 £ Price on application
1 MADV195C 195 13000 90 106 59 1500 £ Price on application
1 MADV230C 230 14500 95 138 74 1300 £ Price on application
1 MADV230L 230 14500 95 138 74 1300 £ Price on application
1 MADV250C 248 16500 115 155 89 1200 £ Price on application
1 MADV250L 248 16500 115 155 89 1200 £ Price on application
1 MADV275C 275 17500 120 180 99 1000 £ Price on application
1 MADV275L 275 17500 120 180 99 1000 £ Price on application
1 MADV315C 315 17500 120 210 120 900 £ Price on application
1 MADV315L 315 17500 120 210 120 900 £ Price on application
1 MADV350C 350 21000 140 240 138 750 £ Price on application
1 MADV350L 350 21000 140 240 138 750 £ Price on application
