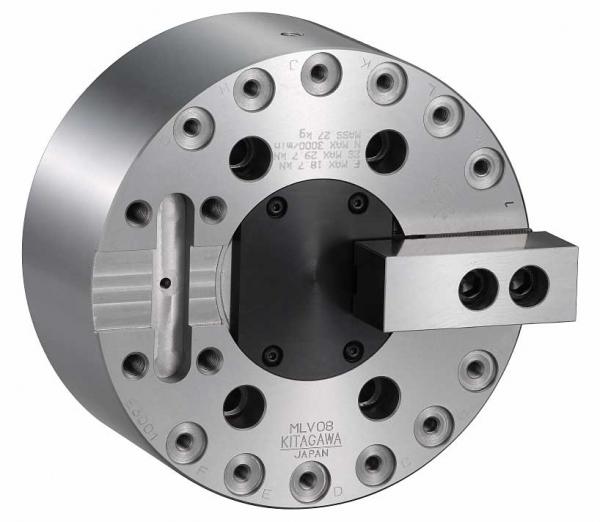

MLV Series (with Adaptor)

Single Jaw Mega Long Stroke Chuck with Adaptor Plate

Key Features

  • Chuck can be operated using standard stoke cylinder
  • Usefull for gripping irregular shaped components
  • Ideal for speical jig location
  • Single jaw uses standard hard and soft jaws

Description

Kitagawa chucks are manufactured from high grade alloy steel. The Kitagawa MLV series is a single jaw with mega long stroke useful for gripping irregular parts or complex location jigs. MLV series chucks are supplied with blank drawnut, adapter and a set of t-nuts as standard.

Estimated delivery: On Request

Dimensions

# Part No Spindle Nose Jaw Stroke Diameter (mm) Max Grip Force (kN) Max. Speed (rpm) Price
1 MLV06A5 A2-5 20 21.9 3800 £5,358.00
1 MLV08A6 A2-6 25 28 3000 £5,916.00
