Multi-Lok Spares 1030 & 1040

To Suit 1030 and 1040

Description

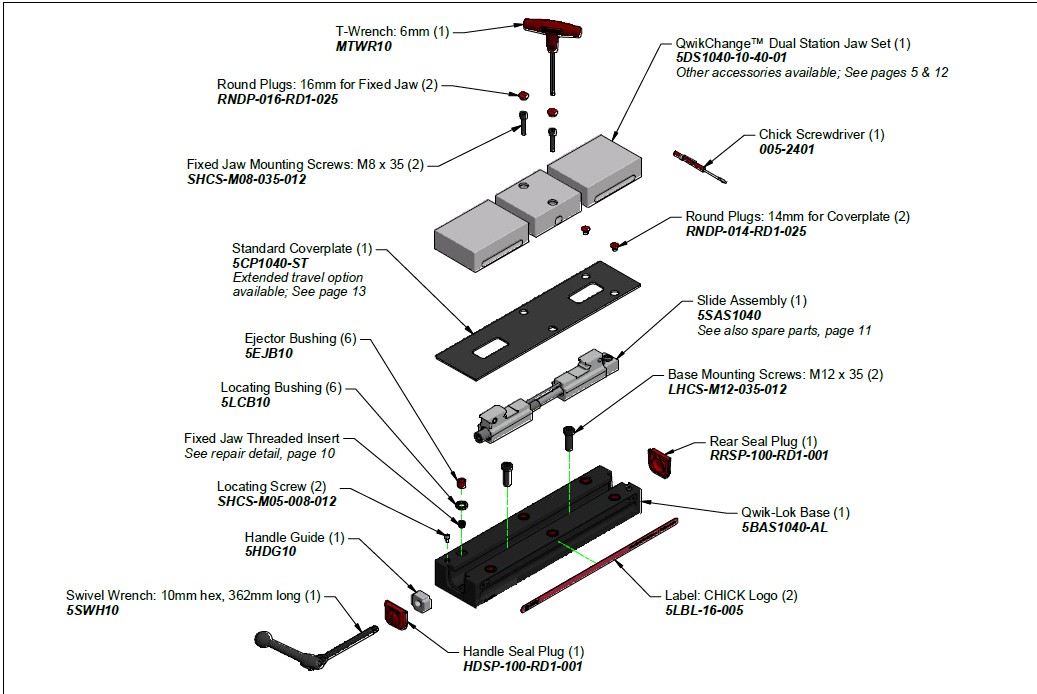

Spare parts for the 100mm Chick Multi-Lok range including the 1030 and 1040

Estimated delivery: Next Day (subject to availability)

Dimensions

# Part No Number Unit to Suit Part Description Price
1 027-0600 1 1030/1040 Hoist Ring £146.00
1 RNDP-375-RD1-025 2 1030/1040 Round Plugs £55.00
1 SHCS-M05-030-012 3 1030/1040 Top Hub Mounting Screws £ Price on application n/a
1 5MLEH24 4 1030/1040 Top Hub £84.00
1 RNDP-020-RD1-025 5 1030/1040 Round Plugs £76.00
1 5SWH10 6 1030/1040 Swivel Handle £226.00
1 HDSP-100-RD1-001 7 1030/1040 Red Handle Seal Plug £33.00
1 HDSP-100-WH1-001 7 1030/1040 White Handle Seal Plug £33.00
1 5HDG10 8 1030/1040 Handle Guide £87.00
1 LPIN 9 1030/1040 Locating Pin £38.00
1 5LBL-16-004 10 1030/1040 Label £74.00
1 5CLM1030-41 11 1030 1030 Column £5,051.00
1 5CLM1040-41 11 1040 1040 Column £5,051.00
1 5EJB10 £65.00
1 5LCB10 13 1030/1040 Locating Bushing £55.00
1 5SAS1030 14 1030 Slide Assembly £1,335.00
1 5SAS1040 14 1040 Slide Assembly £1,335.00

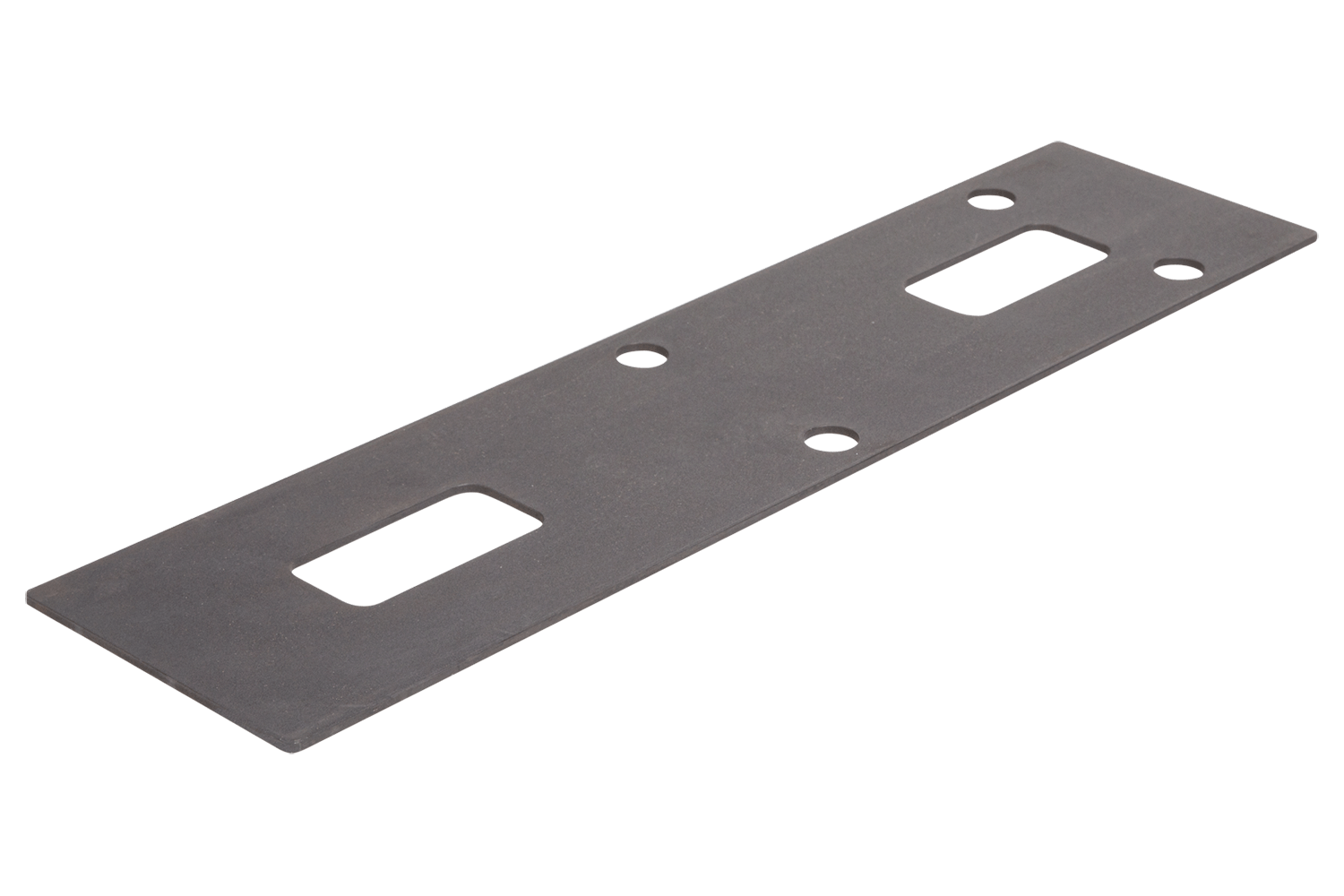

1 5CP1030-ST 16 1030 Standard Coverplate £240.00
1 5CP1040-ST 16 1040 Standard Coverplate £240.00
1 RNDP-014-RD1-025 17 1030/1040 Round Plugs £79.00
1 5DS1030-10-40-01 18 QwikChange Dual Station Jaws £243.00
1 5DS1040-10-40 £243.00
1 SHCS-M08-035-012 19 1030/1040 Fixed Jaw Mounting Screws £41.00
1 RNDP-016-RD1-025 £57.00
1 MTWR10 £52.00
1 005-2401 22 1030/1040 Screwdriver £33.00
1 MPP50 23 1030/1040 Pallet Plug £257.00
1 MCP40 24 1030/1040 Column Pilot £158.00
1 SHCS-M06-070-012 25 1030/1040 Pallet Plug Moutning Screws £ Price on application n/a
1 SHCS-M06-016-012 26 1030/1040 Column Pilot Mounting Screws £ Price on application n/a
