N Series

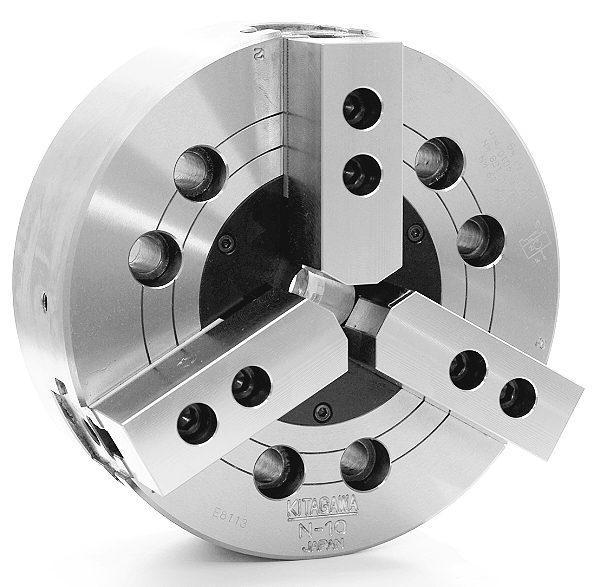

3 Jaw Closed Centre Power Chuck
Key Features
- Compatible with large, readily available, range of jaws
- Standard Accessories Available
Description
Kitagawa chucks are manufactured from high grade alloy steel. Highly durable standard closed centre chuck.
N series chucks are supplied with a blank drawnut as standard with a set of T-nuts.
Estimated delivery: 3-5 Working Days (subject to availability)
Dimensions
| # | Part No | Jaw Stroke Diameter (mm) | Max Grip Force (kN) | Max. Speed (rpm) | Drawings | Price | ||
|---|---|---|---|---|---|---|---|---|
| 1 | N-04 | 6.4 | 22.8 | 6000 | £959.00 | |||
| 2 | N-05 | 6.4 | 25.2 | 5500 | £979.00 | |||
| 3 | N-06 | 8.5 | 52.5 | 5270 | £1,013.00 | |||
| 4 | N-08 | 8.8 | 75 | 4760 | £1,032.00 | |||
| 5 | N-10 | 8.8 | 108 | 4010 | £1,331.00 | |||
| 6 | N-12 | 10.5 | 156 | 3380 | £2,104.00 | |||
| 7 | N-15 | 16 | 249 | 3040 | £3,930.00 | |||
| 8 | N-18 | 16 | 249 | 2710 | £6,687.00 | |||
| 9 | N21 | 16 | 273 | 1940 | £9,059.00 | |||
| 10 | N24 | 16 | 273 | 1760 | £12,184.00 |
