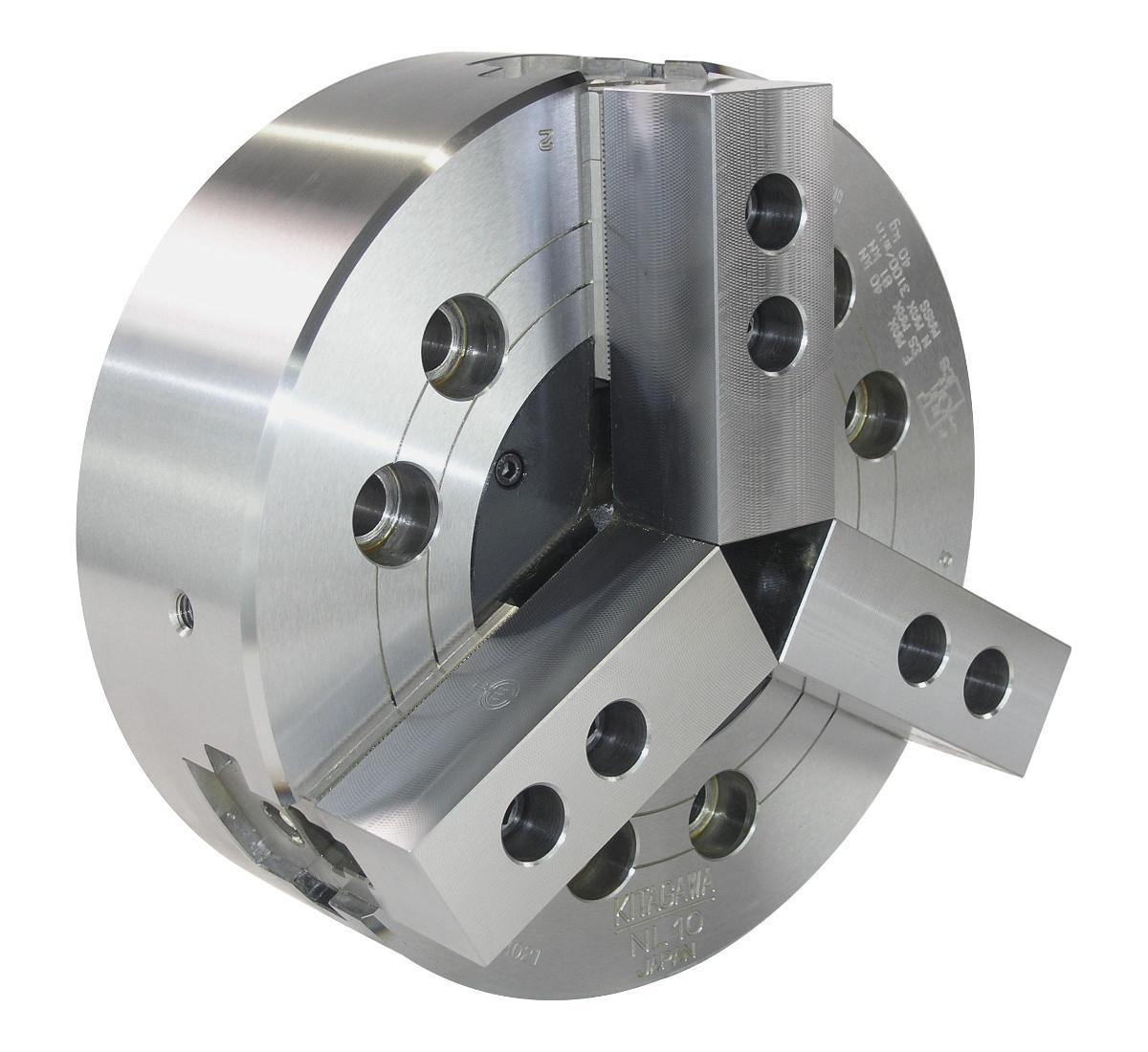

NL Series (with Adaptor)
Long Stroke Closed Centre 3 Jaw Power Chucks with Adaptor Plate
Key Features
- Ideal for compounet with flanges
- Highly durable
- Compatible with large, readily available, range of jaws
Description
Kitagawa chucks are manufactured from high grade alloy steel. The NL series are highly durable standard closed centre chucks with long stroke jaws to secure gripping flange work. NL series chucks are supplied with a blank drawnut as standard with a set of T-nuts.
Estimated delivery: 3-5 Working Days (subject to availability)
Dimensions
| # | Part No | Spindle Nose | Jaw Stroke Diameter (mm) | Max Grip Force (kN) | Max. Speed (rpm) | Price | ||
|---|---|---|---|---|---|---|---|---|
| 1 | NL06A6 | A2-6 | 13 | 39 | 4300 | £1,513.00 | ||
| 1 | NL08A6 | A2-6 | 16.2 | 60 | 3600 | £1,820.00 | ||
| 1 | NL10A6 | A2-6 | 18.1 | 81 | 3100 | £2,331.00 | ||
| 1 | NL10A8 | A2-8 | 18.1 | 81 | 3100 | £2,331.00 | ||
| 1 | NL12A6 | A2-6 | 19.4 | 111 | 2500 | £3,130.00 | ||
| 1 | NL12A8 | A2-8 | 19.4 | 111 | 2500 | £3,130.00 |
