Description

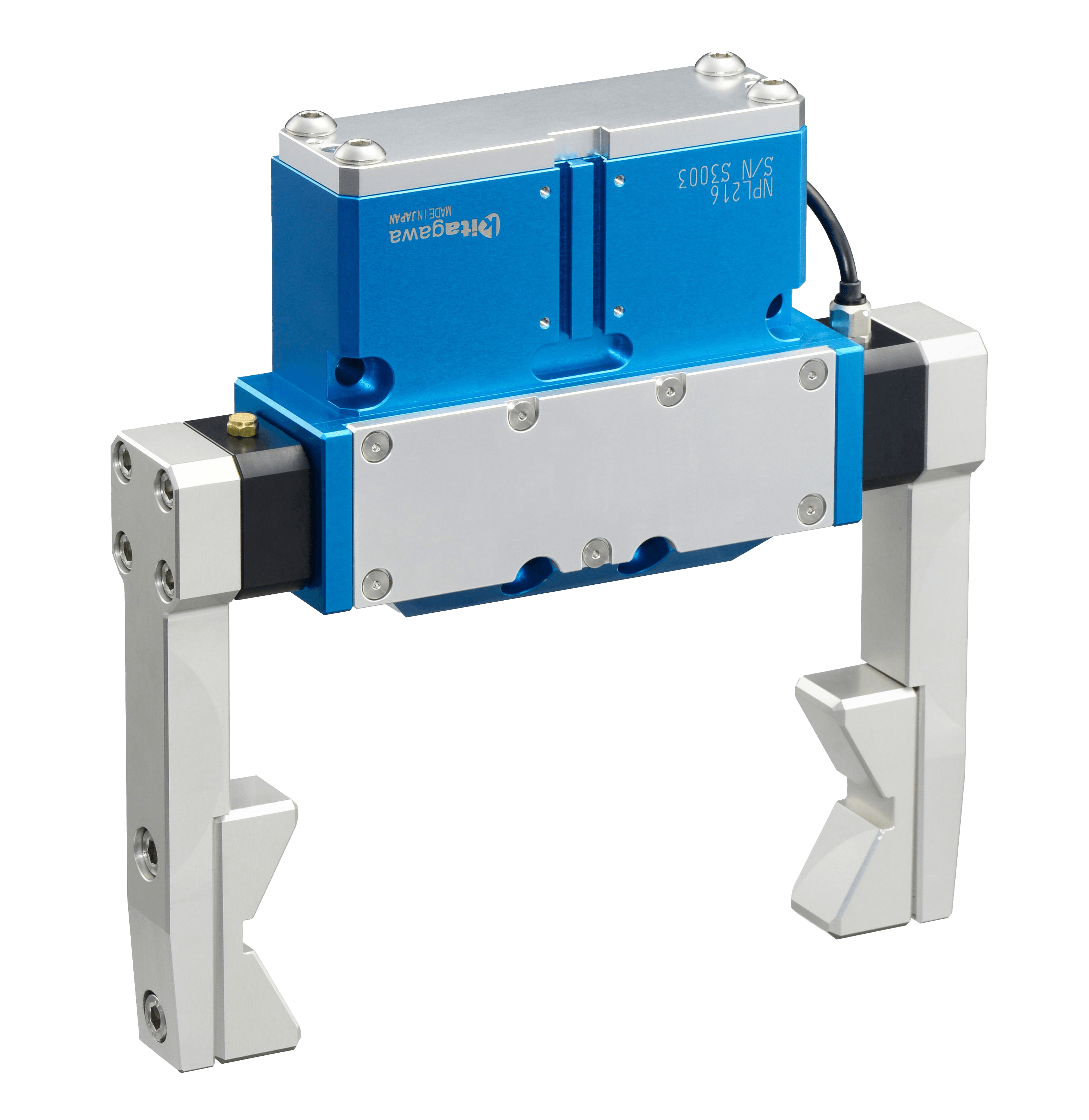

NPL216S Two Jaw Pneumatic Parallel sealed gripper with measuring function

Thin 2-jaw parallel sealed gripper with measuring capability →   Possible to measure gripping length

→   Sealed structure, dustproof and waterproof

→   Ideal for harsh environments such as cutting fluid and dust (IP67) →   Suitable for heavy work piece by high inner gripping force →   Dustproof and waterproof without air purge →   The high restoration accuracy by utilizing workholding technology of lathe chucks →   NPL achieves higher gripping force than the similar stroke model. Close force(N): 1080 Open force(N): 2080 * Air pressure set at 0.6 MPa. Measurement distance L(mm): 60 Jaw stroke: 37mm(dia.), 18.5mm(per finger)
