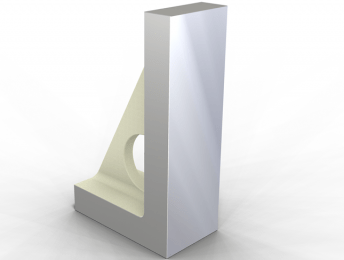

Plain Narrow Angle Plate
Machinable Angle Plate
Key Features
- Machinable to accept required hole pattern
- Ground Flat and Parallel
Description
Plain Narrow Angle Plate. Cast iron machinable angle plate. Plain to allow for the machining of hole patterns and features required for specific fixtures. Ground flat parallel and perpendicular for accuracy. To suit vertical or horizontal machining centre applications.
Estimated delivery: 7-10 Working Days (subject to availability)
Dimensions
| # | Part No | Height (mm) (A) | Width (mm)(B) | Depth (mm) (C) | Depth of Plate (mm) (D) | Price | ||
|---|---|---|---|---|---|---|---|---|
| 1 | BP23-180100-0300 | 300 | 180 | 100 | 40 | £344.64 | ||
| 1 | BP23-230100-0400 | 400 | 230 | 100 | 40 | £432.60 | ||
| 1 | BP23-280100-0500 | 500 | 280 | 100 | 40 | £537.49 |
