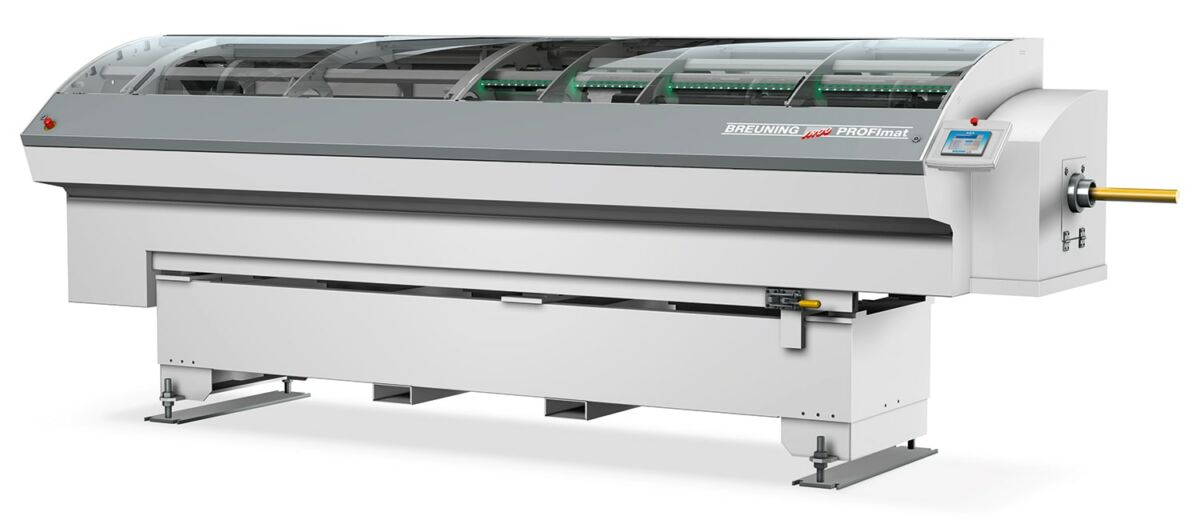

PROFImat Multi-channel loading magazine

loading magazines for long bars

Description

Multi-channel loading magazine

PROFImat

Application area:

  • Ideal for small and medium-sized batches

Properties:

  • Extremely short changeover time at the touch of a button
  • Optimal running characteristics: 6 or 8 guide channels, heavy net weight
  • Extremely smooth running, hydrodynamic bearing, 360° closed guide channels
  • High operating comfort thanks to a 18 cm (7″) widescreen touch display

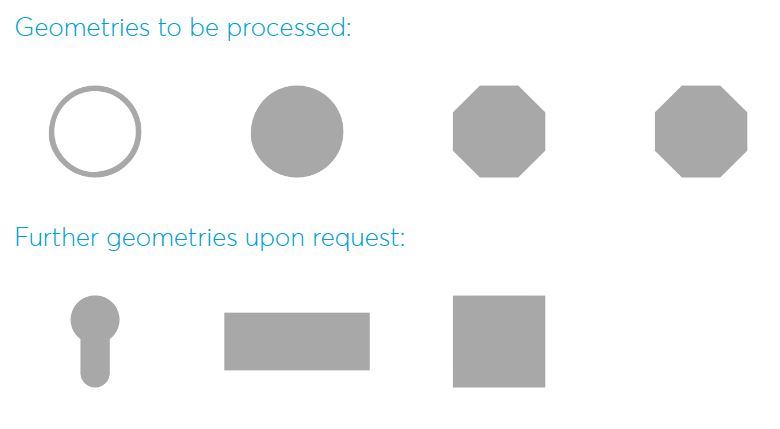

  • Process-reliable supply of rotationally symmetrical profile material

​Working range:

  • Round material, diameters from 5 to 130 mm
  • Bar length 3200 mm, 4200 mm and 6200 mm (10,000 mm) other lengths on request

Special features:

  • Easy replacement of the spindle liner tubes thanks to axial slide of the magazine (optionally radial swivel-out)
  • Process-integrated remnant disposal through the machine (optionally by the magazine)
  • Machine-protecting, vibration-absorbing design
