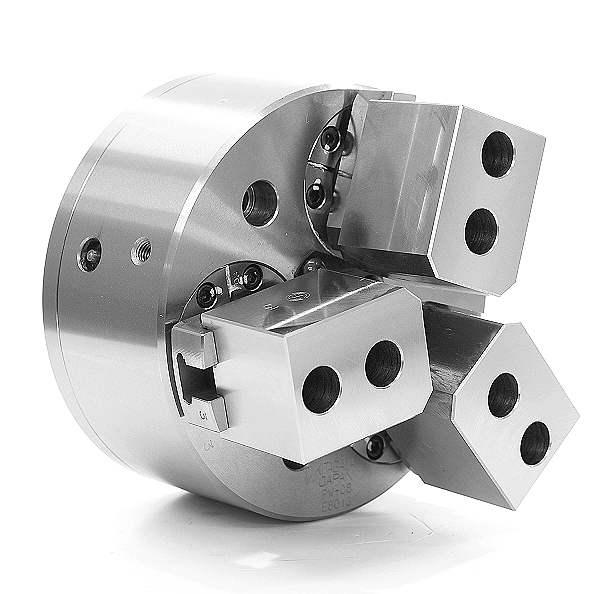

PWC Series (With Adaptor)
Three Jaw Power Wing Compensating Chuck with Adaptor Plate
Key Features
- High gripping force with pull-back action
- 5 Degree angle equalisation
- Sealed unit for high durability
- Tapered part holding
Description
Kitagawa chucks are manufactured from high grade alloy steel. The Kitagawa PWC series chucks have a pullback action with their clamping action giving a higher gripping force as well as allowing for tapered part holding. The series is perticularlly usefull for taking heaver machine cuts, reducing run times. The PWC allow give compensation for rough casting parts.
Estimated delivery: On Request
Dimensions
| # | Part No | Jaw Stroke | Max Grip Force (kN) | Max. Speed (rpm) | Price | ||
|---|---|---|---|---|---|---|---|
| 1 | PW06SCA5 | 7.9 | 70 | 4200 | £6,867.00 | ||
| 1 | PW08SCA6 | 9.5 | 96 | 3700 | £7,603.00 | ||
| 1 | PW10SCA6/A8 | 12.7 | 123 | 3400 | £9,486.00 | ||
| 1 | PW10SCA9 | 12.7 | 123 | 3400 | n/a | ||
| 1 | PW12SCA6 | 12.7 | 123 | 2800 | £11,282.00 | ||
| 1 | PW12SCA8 | 12.7 | 123 | 2800 | £11,282.00 | ||
| 1 | PW15SCA8 | 15.8 | 165 | 2000 | £14,706.00 | ||
| 1 | PW15SCA11 | 15.8 | 165 | 2000 | £14,706.00 |
