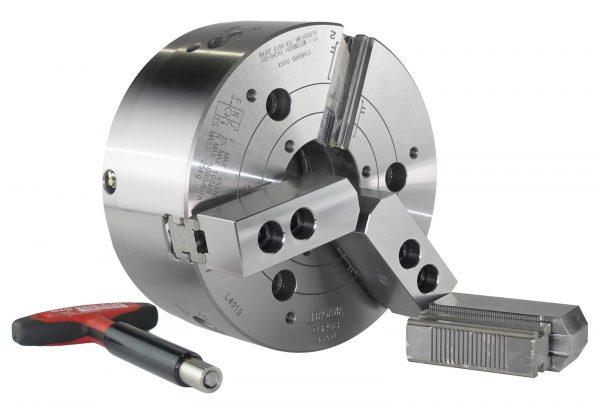

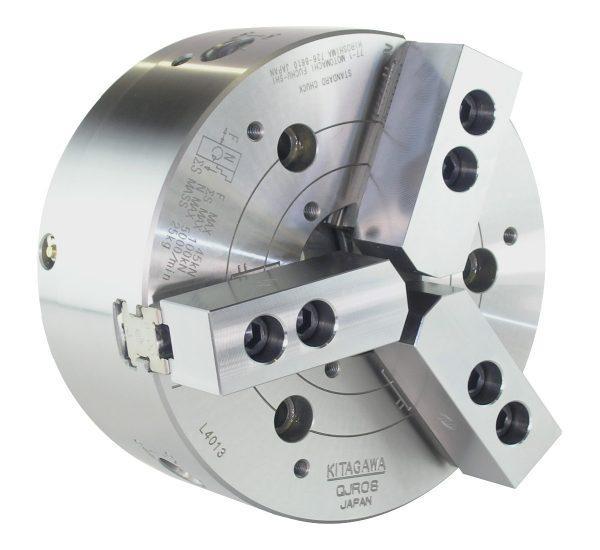

QJR Series
3 Jaw Quick Change Chuck
Key Features
- Easy setup with quick release handle
- Quick change jaws reducing time between jobs
- Wider range of top jaws available
- Compatible with standard accessories
Description
The Kitagawa QJR series chuck are designed with quick change base jaws which engage with sliding teeth. This allows for the quick change of soft jaws, decreasing machine down time between job change over. QJR series chucks are supplied with blank drawnut and a set of t-nuts as standard.
Also available with an adaptor plate QJR Series With Adaptor
Kitagawa QJR
Jaw Finder
Estimated delivery: 3-5 Working Days (subject to availability)
Dimensions
| # | Part No | Chuck Bore (mm) | Jaw Stroke Diameter (mm) | Max Grip Force (kN) | Max. Speed (rpm) | Base Jaws | Recess | Drawings | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | QJR07-M | 53 | 7.4 | 178 | 6000 | 2 Sets | 140 |
|
£4,464.00 | ||
| 2 | QJR08-M | 66 | 7.4 | 210 | 5000 | 2 Sets | 170 |
|
£4,962.00 | ||
| 3 | QJR10-M | 81 | 8.8 | 254 | 4500 | 2 Sets | 220 |
|
£5,982.00 | ||
| 4 | QJR12-M | 106 | 10.6 | 315 | 3500 | 2 Sets | 220 |
|
£7,919.00 | ||
| 5 | QJR121-M | 106 | 10.6 | 315 | 3500 | 2 Sets | 300 | £7,919.00 | |||
| 6 | QJR07-00 | 53 | 7.4 | 178 | 6000 | None | 140 |
|
£3,848.00 | ||
| 7 | QJR08-00 | 66 | 7.4 | 210 | 5000 | None | 170 |
|
£4,279.00 | ||
| 8 | QJR10-00 | 81 | 8.8 | 254 | 4500 | None | 220 |
|
£5,220.00 | ||
| 9 | QJR12-00 | 106 | 10.6 | 315 | 3500 | None | 220 |
|
£6,827.00 | ||
| 10 | QJR121-00 | 106 | 10.6 | 315 | 3500 | None | 300 | £6,827.00 |
