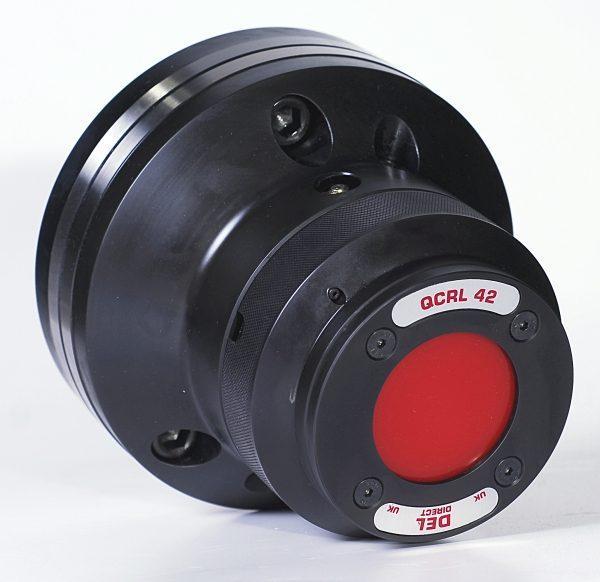

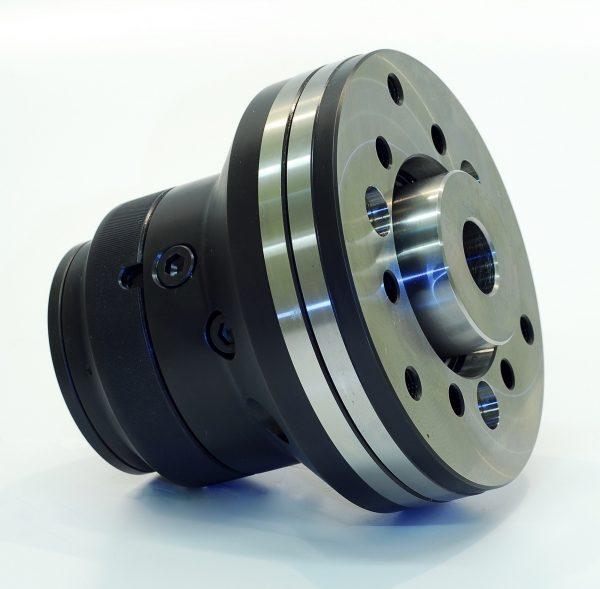

QCRL42 Quick Change Collet Chucks
42mm Capacity for 1st & 2nd Op
Key Features
- Can be used for 1st and 2nd Operation
- Deadlength Actuation Eleminates part movement when Clamping
- Case hardened, optimising the rigidity, strength and durability.
- Uses 3 Different Types of Collet
Description
Klamp QCRL42 collet chucks are suitable for spring, varibore and rubberflex collets increasing its flexibility. Varibore and rubberflex collets allow rough, unfinished bar to be machined in the first operation and spring collets can be used for high accuracy in the second operation. QCRL42 collet chuck ensures that workpieces remains in a fixed position during actuation allowing for precise z-axis positioning. A tapered sleeve is pushed forward, compressing the collet and gripping the workpiece. Maximum Capacity can be increased to 45mm using Rubberflex Collets
D173E Smooth Collets - D173E Serrated Collets - D173E Work Stop
D673 Square Collets - D673 Hexagon Collets - D673 Round Collets
QCRL60 - QCRL80
QCRS66 - QCRS80
Estimated delivery: Next Day (subject to availability)
Dimensions
| # | Part No | Spindle Mount | Capacity (mm) | Length (mm) | Spring Collet | Varibore Collet | Rubberflex Collet | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | QCRL42 | 140mm | 42 | 137 | D173E | D673 | DRFC673 | £1,196.00 | ||
| 1 | QDCRL42A5 | A2-5 Direct | 42 | 136 | D173E | D673 | DRFC673 | £1,166.00 | ||
| 1 | QCRL42A5 | A2-5 | 42 | 137 | D173E | D673 | DRFC673 | £1,244.00 | ||
| 1 | QCRL42A6 | A2-6 | 42 | 137 | D173E | D673 | DRFC673 | £1,244.00 |
