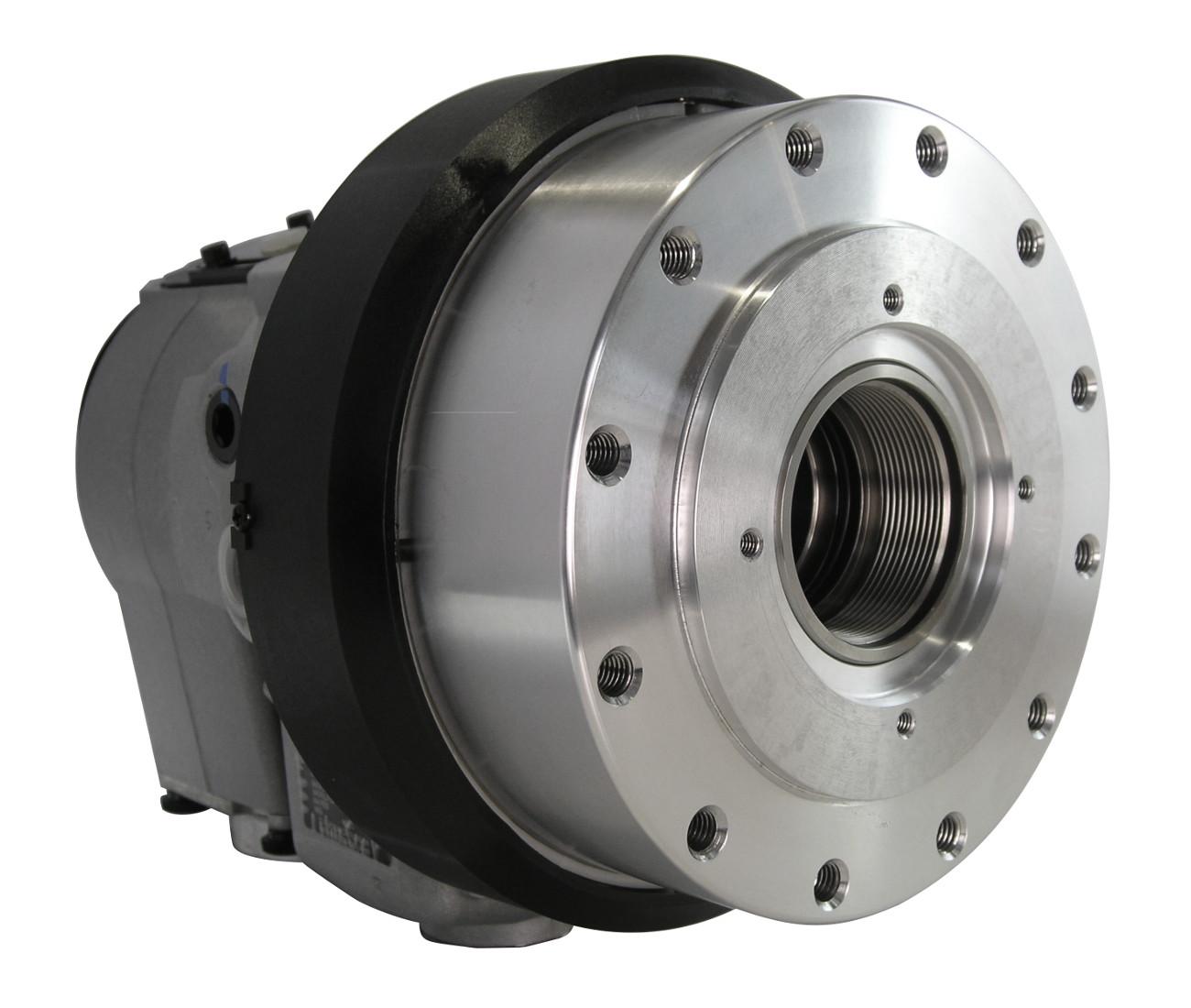

S Series Cylinder
Open Centre Hydraulic Cylinder
Key Features
- High pull and push force to operate range of chucks
- Light wieght and compact design
- Large Through Hole
Description
Kitagawa hydrualic cylinders are made with high grade alloy steel. The S series cylinders are Kitagawa's standard range of hydrulic cylinder and are fitted as standard to a wide range of machines. The cylinder can be bought as a single unit or to suit a required machine under request.
Estimated delivery: Next Day (subject to availability)
Dimensions
| # | Part No | Stroke (mm) | Bore (mm) | Pull Force (kN) | Speed (rpm) | Spec. | Price | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | S1036 | 15 | 36 | 24 | 8000 | Universal | £2,761.00 | ||
| 1 | S1246-15Y | 15 | 46 | 33 | 7000 | Universal | £2,462.00 | ||
| 1 | S1552-15Y | 22 | 52 | 56 | 6200 | Universal | £2,755.00 | ||
| 1 | S1875-15Y | 25 | 75 | 69 | 4700 | Universal | £3,410.00 | ||
| 1 | S2078-15Y | 30 | 78 | 88 | 3800 | Universal | £3,671.00 | ||
| 1 | S2091-15Y | 30 | 91 | 88 | 3800 | Universal | £3,671.00 | ||
| 1 | S2816-47A | 51 | 166.5 | 100 | 2000 | Universal | £14,185.00 |
