SC-JN Series

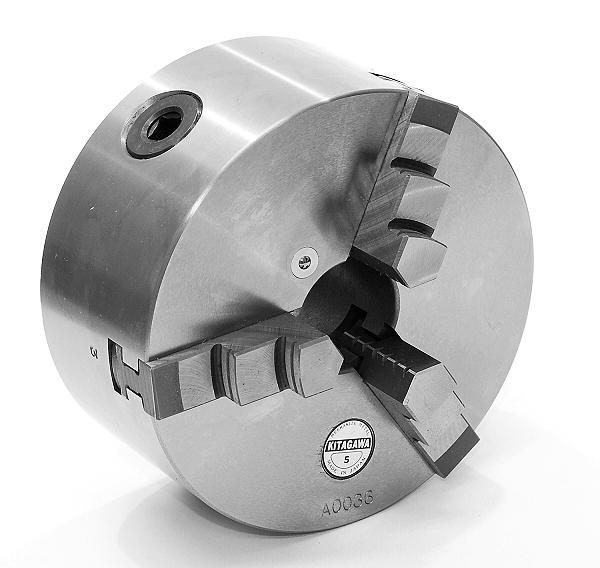

Standard Scroll Chuck with Integrated Jaw
Key Features
- Quality steel use for corrosion resistance
- High Rigidity, durability and rotational speed
- Cross guide reduces runout and distortion
- Comes with internal and external jaws
Description
Scroll chuck with integrated jaw (Straight recess) includes each one set of internal jaws and external jaws as standard. JN models cannot use soft jaws. When the soft jaws are used for SC-F type, use the chuck of lower specification. (SC-3, 4, 5, 14, 16 are made of cast iron and JN-6, 7, 9, 10 and 12 are made of steel.)
Estimated delivery: 7-10 Working Days (subject to availability)
Dimensions
| # | Part No | Chuck Bore (mm) | Max. Grip Force (kN) | Max. Speed (rpm) | Matching Hard Jaws | Matching Soft Jaws | Drawings | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | SC-3 | 16 | 9 | 2500 | 9710701000 | N/A | £907.00 | |||
| 2 | SC-4 | 24 | 12 | 2500 | 9710701010 | N/A | £735.00 | |||
| 3 | SC-5 | 130 | 15 | 2500 | 9710701020 | N/A | £765.00 | |||
| 4 | JN06 | 45 | 31 | 4000 | 9710701130 | N/A | £605.00 | |||
| 5 | JN06-101 | 45 | 31 | 4000 | 9710701130 | N/A | £838.00 | |||
| 6 | JN07 | 55 | 31 | 3500 | 9710701140 | N/A | £675.00 | |||
| 7 | JN09 | 70 | 37 | 2900 | 9710701150 | N/A | £863.00 | |||
| 8 | JN09-101 | 70 | 37 | 2900 | 9710701150 | N/A | £1,178.00 | |||
| 9 | JN10 | 85 | 46 | 2500 | 9710701160 | N/A | £1,083.00 | |||
| 10 | JN12 | 96 | 55 | 220 | 9710701170 | N/A | £1,523.00 | |||
| 11 | SC-14 | 100 | 40.5 | 1500 | 9710701080 | N/A | £4,372.00 | |||
| 12 | SC-16 | 110 | 45 | 1500 | 9710701080 | N/A | £5,880.00 | |||
| 13 | SC-3F | 16 | 9 | 2500 | 9710701000 | 9710703330 | £ Price on application | n/a | ||
| 14 | SC-4F | 24 | 12 | 2500 | 9710701010 | SBS04 | £ Price on application | n/a | ||
| 15 | SC-5F | 130 | 15 | 2500 | 9710701020 | SBS05 | £ Price on application | n/a |
