Series 3000 MultiZero Pneumatic Plates
Series 3000 MultiZero Pneumatic Plates
Description
Series-3000 MultiZero Pneumatic Plates MultiZero® Pneumatic Plate• Used for clamping pallets, workpieces, vises and fixtures automatically• Supports standard manual clamping of pallets, workpieces, visesand fixtures• Slot pitch 50 mm• Zero point array 50 x 50• Pneumatic zero-point array 200 x 200 Sinco
Dimensions
| # | Part No | Dimensions (mm) | Pneumatic zero points | Zero points | Thread holes M12 | Price | ||
|---|---|---|---|---|---|---|---|---|
| 1 | 1B1-3320-0 | 456 (400) x 320 x 50 | 2 | 13 | 67 | £4,583.00 | ||
| 1 | 1B1-3321-0 | 456 (400) x 320 x 50 | 1 | 22 | 85 | £3,487.05 | ||
| 1 | 1B1-3420-0 | £7,645.80 | ||||||
| 1 | 1B1-3421-0 | 556 (500) x 400 x 50 | 2 | 41 | 154 | £5,430.33 | ||
| 1 | 1B1-3520-0 | 686 (630) x 500 x 50 | 6 | 93 | 198 | £11,156.43 | ||
| 1 | 1B1-3521-0 | 686 (630) x 500 x 50 | 2 | 77 | 266 | £6,783.18 | ||
| 1 | 1B1-3632-0 | 864 (800) x 630 x 50 | 9 | 80 | 348 | £15,021.74 | ||
| 1 | 1B1-3633-0 | 864 (800) x 630 x 50 | 8 | 89 | 368 | £13,984.70 | ||
| 1 | 1B1-3652-0 | 1064 (1000) x 630 x 50 | 12 | 83 | 432 | £19,379.64 | ||

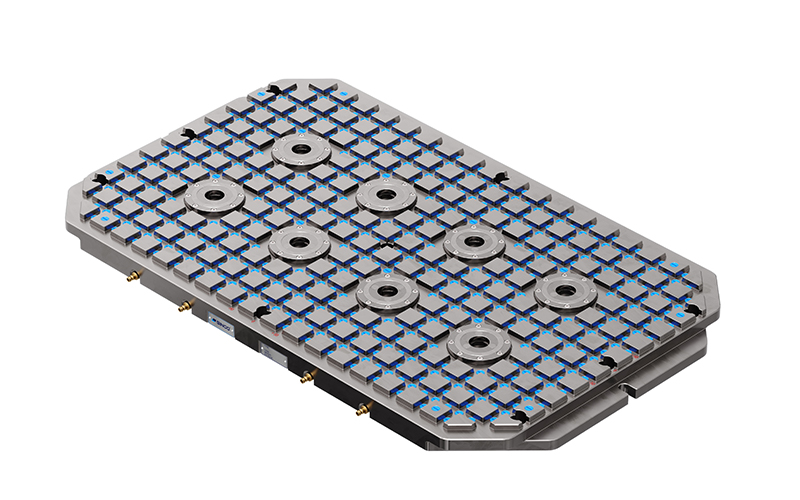

| 1 | 1B1-3653-0 | 1064 (1000) x 630 x 50 | 8 | 133 | 500 | £15,231.49 |
