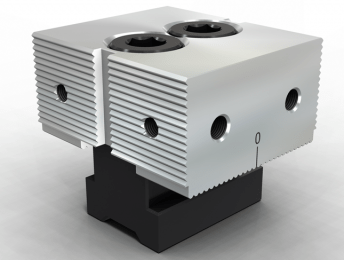

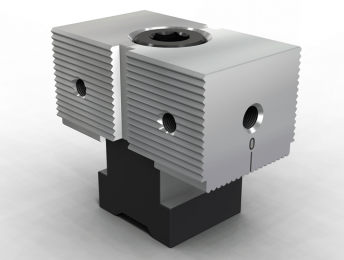

Serrated Fixed Jaw (SVF-BG)

For use on B, BE & C series

Key Features

  • Maximise your machining envelope
  • High precision and high clamping force
  • Wide range of accessories for flexibility
  • Manufactured from tool steel treated to HRC 55 and ground

Description

Stationary (non wedge) jaws for the SVF range of flexible vices. These jaws are serrated and tapped to accept top jaws or workstops. The heavy duty type with 2 mounting screws is intended for B & C series vices and the standard duty type with only 1 mounting screw is intended for all other series except A series. These jaws are intended to be used on both sides inbetween 2 workpieces.

Estimated delivery: On Request

Dimensions

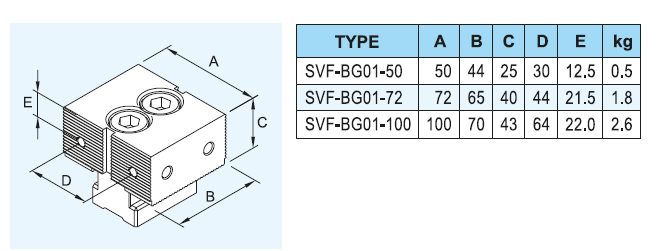

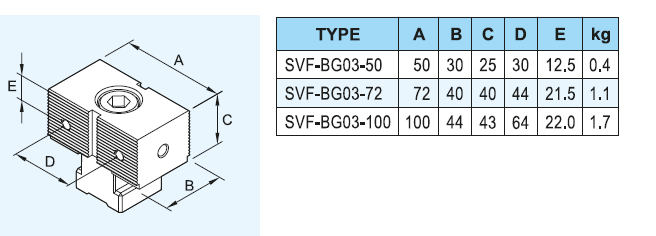

# Part No Length (mm) Width (mm) Height (mm) Number of screws Duty Series Drawings Price
1 SVF-BG01-50 44 50 25 2 Heavy B & C Series £126.00
2 SVF-BG01-72 65 72 40 2 Heavy B & C Series £204.17
3 SVF-BG01-100 70 100 43 2 Heavy B & C Series £247.34
4 SVF-BG03-50 30 50 25 1 Standard B & BE Series £117.84
5 SVF-BG03-72 40 72 40 1 Standard B & BE Series £164.50
6 SVF-BG03-100 44 100 43 1 Standard B & BE Series £201.84
