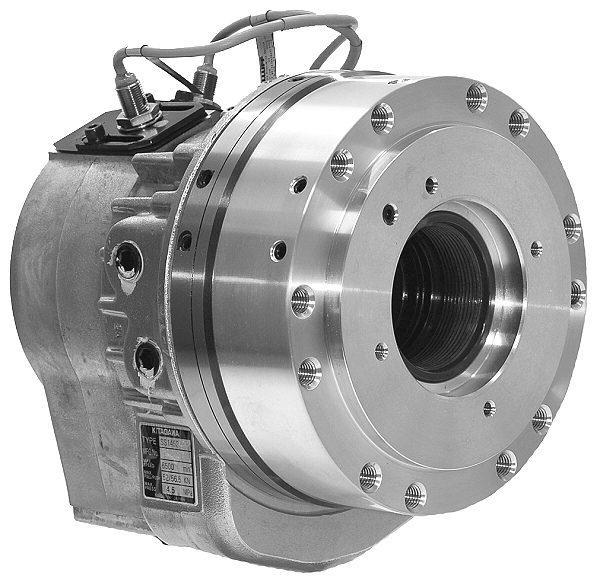

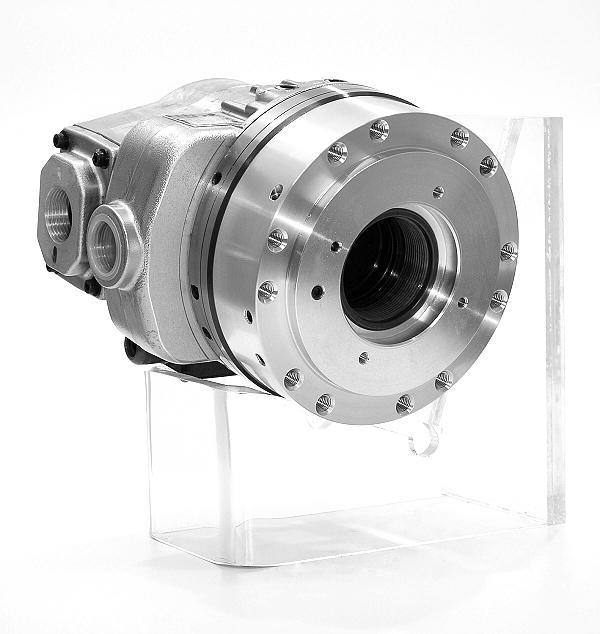

SS Series Cylinder
Short Bodied Hydraulic Cylinder
Key Features
- Compact short body design
- Increased max operating speed
- Increased pull force gives larger chuck range
Description
Kitagawa hydrualic cylinders are made with high grade alloy steel. The SS series cylinders are compact design to fit on size critical machines while giving a larger pull force to allow for operation of a wide range of chucks. The cylinder can be bought as a single unit or to suit a required machine under request.
Estimated delivery: 2-3 Weeks (subject to availability)
Dimensions
| # | Part No | Stroke (mm) | Bore (mm) | Pull Force (kN) | Speed (rpm) | Spec. | Price | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | SS1030-28 | 12 | 30 | 24.1 | 8000 | Miyano | £3,843.00 | ||
| 1 | SS1236-28A | 9 | 36 | 25.2 | 8000 | Miyano | £2,783.00 | ||
| 1 | SS1243-28 | 9 | 43 | 25.2 | 8000 | Miyano | £2,783.00 | ||
| 1 | SS1246-C72 | 16 | 46 | 34.8 | 8000 | Universal | £2,998.00 | ||
| 1 | SS1246-C15Y | 16 | 46 | 34.8 | 8000 | Mazak | £2,998.00 | ||
| 1 | SS1453-K21A | 22 | 53 | 52.1 | 6500 | Mori | £3,639.00 | ||
| 1 | SS1666-K21A | 25 | 66 | 50.9 | 5600 | Mori | £3,850.00 | ||
| 1 | SS1766-K21A | 25 | 66 | 64.6 | 5500 | Mori | £ Price on application | n/a | |
| 1 | SS1770-C01B | 25 | 70 | 55 | 5500 | Okuma | £3,378.00 | ||
| 1 | SS1775-K21A | 25 | 75 | 55 | 5500 | Mori | £3,378.00 | ||
| 1 | SS1881-K21A | 25 | 81 | 73.1 | 4800 | Mori | £4,343.00 | ||
| 1 | SS1881-K15Y | 25 | 81 | 73.1 | 4800 | Mazak | £4,343.00 | ||
| 1 | SS2110-C15Y | 23 | 106 | 71 | 3500 | Mazak | n/a |
