System 5 Qwik-LOK
Dual Station CNC Clamping
Key Features
- Change jaws in seconds and complete a full setup in a few minutes
- Precise loction of jaws means your datum is preserved every time you remove the jaws. Once a job is setup, it stays setup.
- Two parts in the same space as one. Maximise your working area and optimise the toolpath.
- More parts in the machine means longer cycles and more time away from the machine.
Description

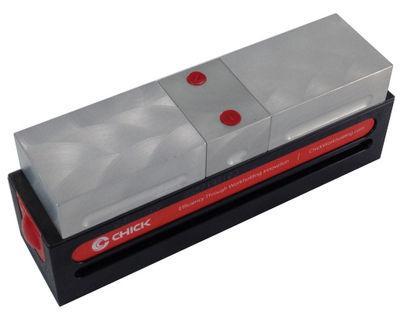

System 5 Qwik-LOK is an innovative workholding solution that maximises productivity. In its most popular form it uses three jaws to mount two workpieces in the same space that a traditional vice would only mount one. It can also be equipped with a single station jaw set for large. Individual workpieces as well as a machinable faceplate which forms the base of a fixture and can be used for multiple small workpieces. The jaws change on System 5 Qwik-LOK can be changed in seconds. For fast setups and they locate precisely so they do not require re-skimming. When equipped with a faceplate. The workpieces can be loaded outside of the machine and, if 2 faceplates are used. It can be used as a manual pallet changing system.
Estimated delivery: Next Day (subject to availability)
Dimensions
| # | Part No | Length (mm) | Width (mm) | Height (mm) | Max. Clamp Force | Max Capacity Dual Station | Max Capacity Single Station | Drawings | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|

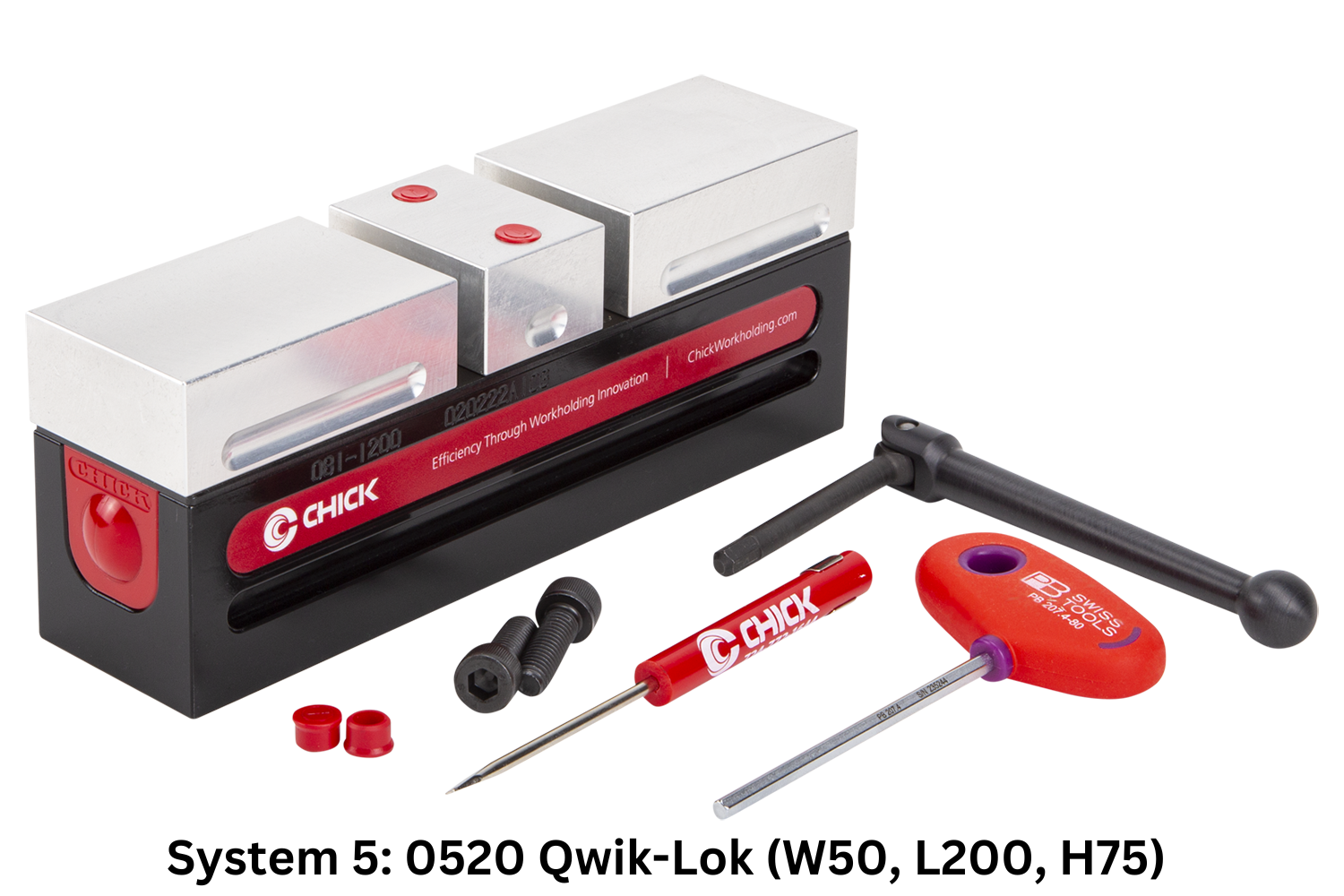

| 1 | 081-1200 | 200 | 50 | 75 | 11.2kN | 85 | 185 | £1,360.00 | |||

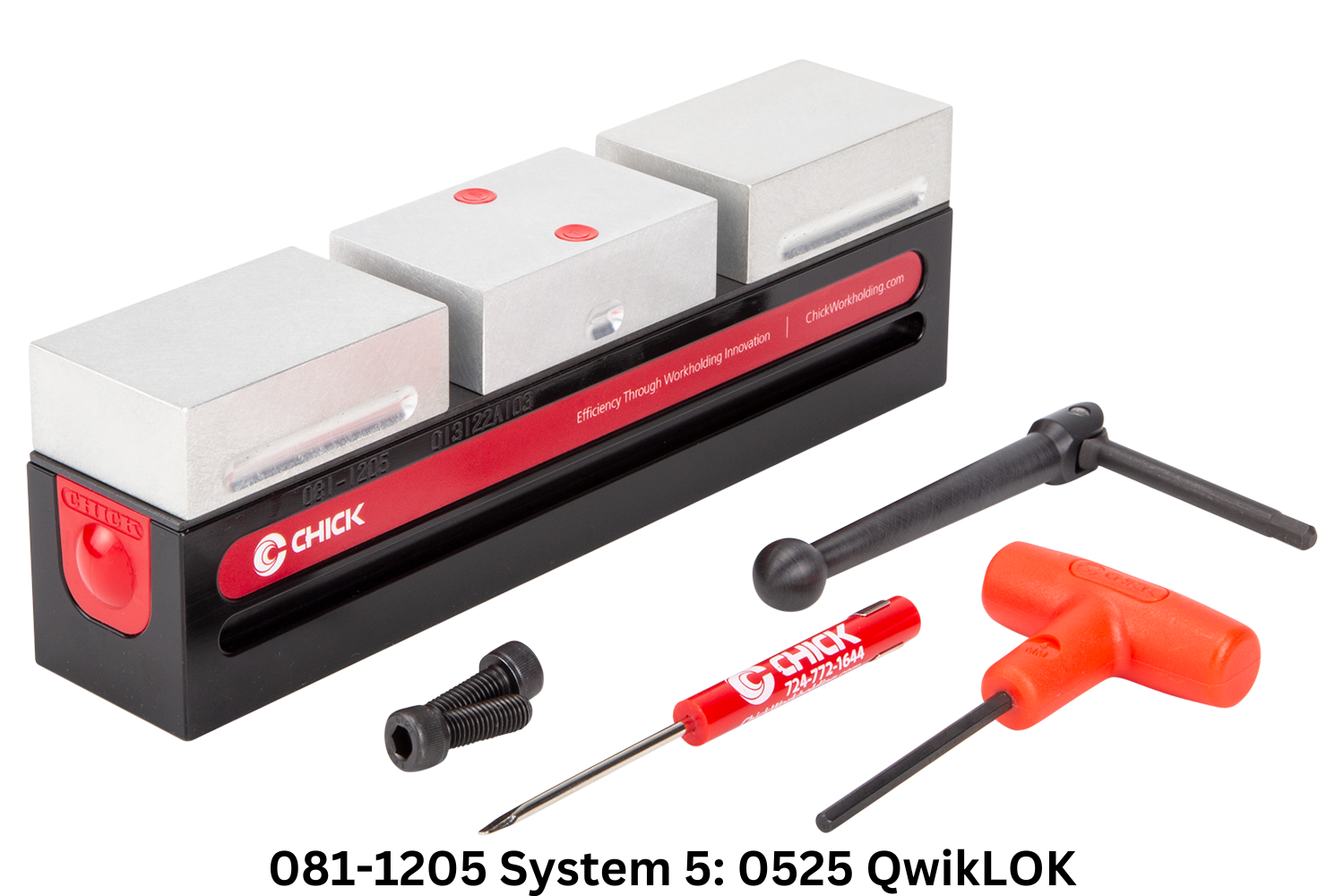

| 2 | 081-1205 | 250 | 50 | 75 | 11.2kN | 110 | 235 |
|
£1,360.00 | ||
| 3 | 5QL1030-AL | 300 | 100 | 95 | 22kN | 130 | 280 |
|
£2,102.00 | ||
| 4 | 5QL1040-AL | 400 | 100 | 95 | 22kN | 180 | 380 |
|
£2,102.00 | ||

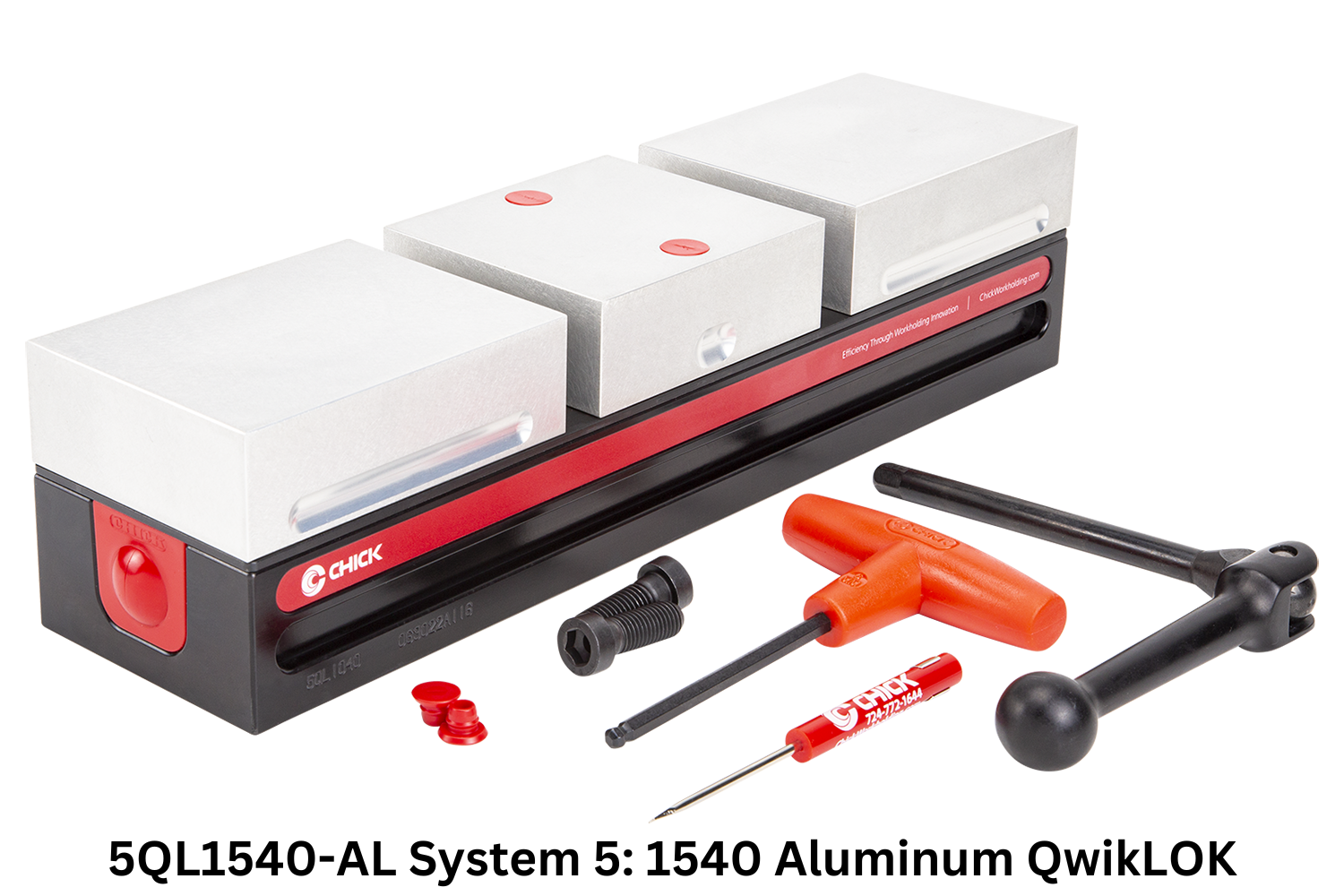

| 5 | 5QL1540-AL | 400 | 150 | 120 | 40kN | 175 | 380 |
|
£2,742.00 | ||
| 6 | 5QL1550-AL | 500 | 150 | 120 | 40kN | 225 | 480 |
|
£2,742.00 |
