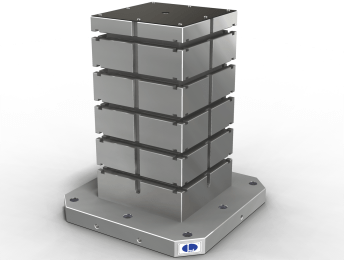

T-Slotted Square Tooling Column
Slotted Cast Iron Tombstone
Key Features
- T-Slots to allow for Flexible use for Fixturing Products
- Ground Flat and Parallel
- Threaded Holes for Side-Location
Description
Cast iron t-slot cube with mounting holes. Grid pattern with slots for versatility of set-ups. Ground flat parallel and perpendicular for accuracy. Holes for side location to allow precise loading and setting up of the tombstone.
Estimated delivery: 7-10 Working Days (subject to availability)
Dimensions
| # | Part No | Size of Pallet (mm) | Height of Column (mm) | Profile of Column (mm) | Drawings | Price | ||
|---|---|---|---|---|---|---|---|---|
| 1 | BP09-400400-0500-14 | 400 | 500 | 250 |
|
£3,543.52 | ||
| 2 | BP09-400400-0650-14 | 400 | 650 | 250 |
|
£5,105.45 | ||
| 3 | BP09-500500-0600-14 | 500 | 600 | 300 |
|
£5,005.82 | ||
| 4 | BP09-500500-0750-14 | 500 | 750 | 300 |
|
£7,066.04 | ||
| 5 | BP09-630630-0700-14 | 630 | 700 | 350 |
|
£7,598.62 | ||
| 6 | BP09-630630-0850-14 | 630 | 850 | 350 |
|
£9,550.69 | ||
| 7 | BP09-800800-0800-14 | 800 | 800 | 500 |
|
£10,864.35 | ||
| 8 | BP09-800800-1000-14 | 800 | 1000 | 500 |
|
£14,172.09 | ||
| 9 | BP09-10001000-1000-14 | 1000 | 1000 | 600 |
|
£16,716.70 | ||
| 10 | BP09-10001000-1250-14 | 1000 | 1250 | 600 |
|
£20,573.12 | ||
| 11 | BP09-400400-0500-18 | 400 | 500 | 250 |
|
£3,541.77 | ||
| 12 | BP09-400400-0650-18 | 400 | 650 | 250 |
|
£5,398.18 | ||
| 13 | BP09-500500-0600-18 | 500 | 600 | 300 |
|
£5,004.07 | ||
| 14 | BP09-500500-0750-18 | 500 | 750 | 300 |
|
£7,477.17 | ||
| 15 | BP09-630630-0700-18 | 630 | 700 | 350 |
|
£7,688.69 | ||
| 16 | BP09-630630-0850-18 | 630 | 850 | 350 |
|
£10,021.09 | ||
| 17 | BP09-800800-0800-18 | 800 | 800 | 500 |
|
£11,260.09 | ||
| 18 | BP09-800800-1000-18 | 800 | 1000 | 500 |
|
£14,879.44 | ||
| 19 | BP09-10001000-1000-18 | 1000 | 1000 | 600 |
|
£16,716.70 | ||
| 20 | BP09-10001000-1250-18 | 1000 | 1250 | 600 |
|
£20,573.12 |
