CP04 Tapped End U-Clamp
For Top Clamping
Key Features
- U-Shape allows for Quick Set-ups
- Hardened for Longevity
- Chamfered End for Additional Clearance
Description

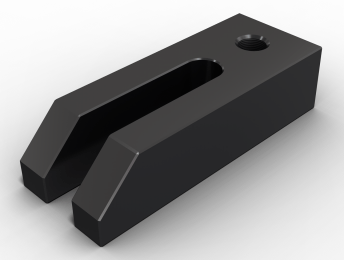

Tapped End U-Clamp. An open shaped toolmakers clamp allows for a quick easy installation. Hardened and Chemi-Blacked for durability and with a chamfer for additional access to the part.
Recommended Parts
SU01 Jig Rest Button
PT07 Clamping Stud
PT04 Flange Nut
PT29 Swivel Pad
The CP04 Tapped End U-Clamp is a versatile clamping component designed for efficient workholding in machining and assembly operations. Its open-end design allows for easy assembly, enhancing operational efficiency. The CP04 series is available in various dimensions to accommodate different workpiece sizes and clamping requirements. This adaptability makes it suitable for a wide range of applications, including zero-point positioning systems, aerospace industry tasks, horizontal and five-axis machining centers, and the clamping of cylindrical workpieces.Estimated delivery: 5-7 Working Days (subject to availability)
Dimensions
| # | Part No | Length (mm) | Width (mm) | Height (mm) | Slot width (mm) | Thread | Price | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | CP04-12075 | 75 | 38 | 19 | 13 | M12 | £14.47 | ||
| 1 | CP04-12100 | 100 | 38 | 25 | 13 | M12 | £19.95 | ||
| 1 | CP04-12125 | 125 | 38 | 25 | 13 | M12 | £24.04 | ||
| 1 | CP04-14100 | 100 | 38 | 25 | 15 | M14 | £18.20 | ||
| 1 | CP04-14150 | 150 | 38 | 25 | 15 | M14 | £23.46 | ||
| 1 | CP04-16100 | 100 | 50 | 25 | 17 | M16 | £26.95 | ||
| 1 | CP04-16125 | 125 | 50 | 25 | 17 | M16 | £32.32 | ||
| 1 | CP04-16150 | 150 | 50 | 25 | 17 | M16 | £37.92 | ||
| 1 | CP04-18150 | 150 | 50 | 32 | 19 | M18 | £41.65 | ||
| 1 | CP04-18200 | 200 | 50 | 32 | 19 | M18 | £54.49 | ||
| 1 | CP04-20150 | 150 | 60 | 32 | 21 | M20 | £39.09 | ||
| 1 | CP04-20200 | 200 | 60 | 32 | 21 | M20 | £43.40 |
