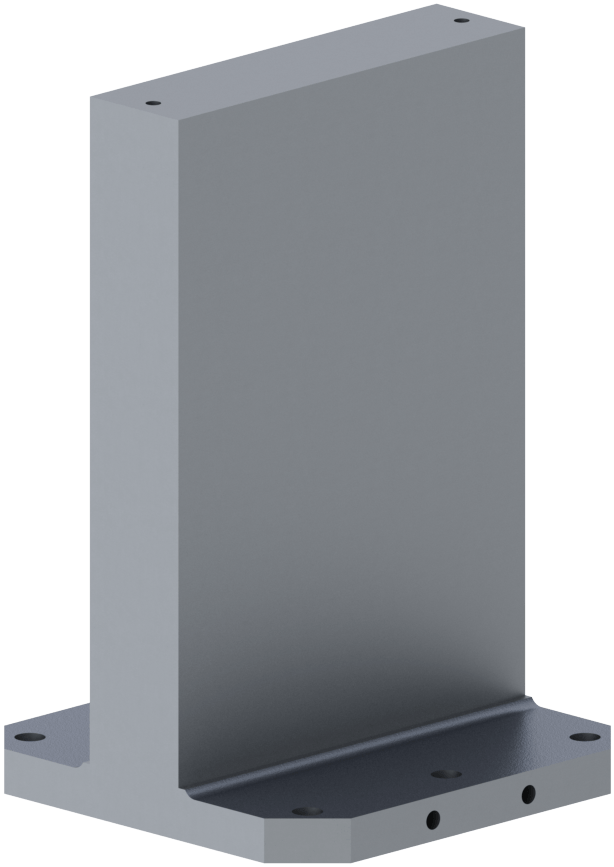

Two-Sided Tooling Column

Tenzaloy (Aluminium Alloy) Column

Key Features

  • Strong, Rigid & Lightweight
  • Vibration Dampening
  • Corrosion Resistant
  • Excellent Machinability

Description

Abbott two sided tombstones are made of Tenzaloy™. They provide a practical, inexpensive and lightweight means of holding work accurately in a vertical or horizontal application for CNC machining operations. They can be mounted directly on a machine table/pallet or used in conjunction with a rotary table. Abbott tooling columns are available in multiple configurations built to any height, width and thickness dimensions required for your application. In addition, base sizes can be customized to fit any machine pallet.

Estimated delivery: On Request

Dimensions

# Part No Height (mm) Width (mm) Thickness (mm) Base Size (mm) Drawings Price
1 D31620-400BS 495.3 400 76.2 400mm x 38mm
£2,978.24
2 D4820-400BS 495.3 203.2 101.6 400mm x 38mm
£2,869.42
3 D41218-300BS 457.2 300 101.6 300mm x 38mm
£2,869.42
4 D41218-400BS 457.2 304.8 101.6 400mm x 38mm
£2,869.42
5 D41624-400BS 609.6 400 101.6 400mm x 38mm
£3,865.98
6 D41624-500BS 609.6 406.4 101.6 500mm x 50mm
£4,564.72
7 D61024-400BS 609.6 254 152.4 400mm x 38mm
£3,751.43
8 D61220-300BS 508 300 152.4 300mm x 38mm
£3,705.61
9 D61220-400BS 508 304.6 152.4 400mm x 38mm
£3,705.61
10 D61628-400BS 711.2 400 152.4 400mm x 38mm
£4,135.17
11 D62028-500BS 711.2 500 152.4 500mm x 38mm
£6,947.31
12 D62530-630BS 762 630 152.4 630 x 50mm
£9,759.45
13 D63638-630BS 965.2 914.4 152.4 630mm x 50mm
£ Price on application n/a
14 D63753-1000BS 1346.2 939.8 152.4 1000mm x 50mm
£ Price on application n/a
15 D81624-400BS 609.6 400 203.2 400mm x 38mm
£4,129.44
16 D81626-500BS 660.4 406.4 203.2 500mm x 63mm
£5,240.55
17 D82028-500BS 711.2 600 203.2 500mm x 38mm
£5,441.01
18 D82032-500BS 812.8 500 203.2 500mm x 38mm
£5,956.47
19 D82538-630BS 965.2 630 203.2 630mm x 38mm
£9,862.54
20 D83448BS 1219.2 863.6 203.2 1000mm x 800mm x 50mm
£ Price on application n/a
21 D102536-630BS 914.4 630 254 630mm x 50mm
£10,103.09
22 D102542-630BS 1066.8 630 254 630mm x 50mm
£11,386.03
23 D103046-800BS 1168.4 762 254 800mm x 50mm
£ Price on application n/a
