Unigrip
Electromagnetic Chuck for Standard Grinding

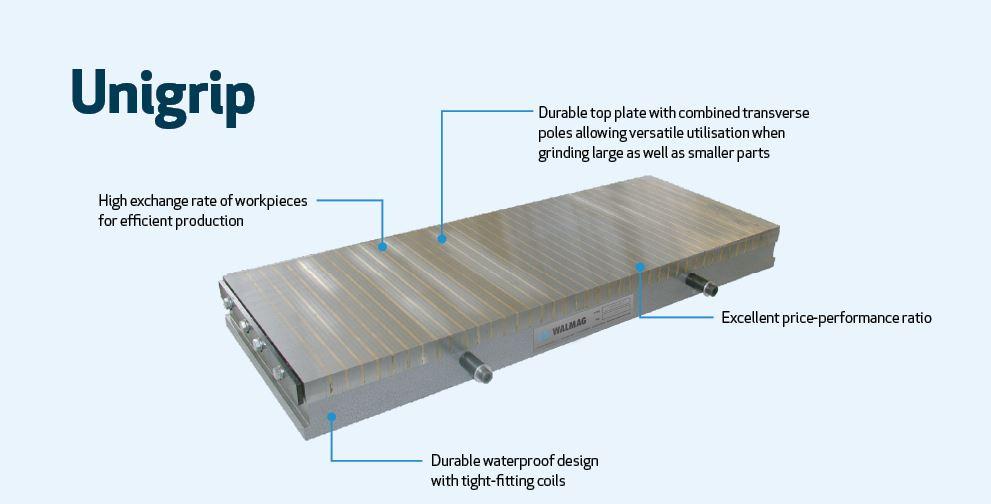

Key Features
- Excellent price-performance ratio
- High speed of workpiece replacement for efficient production
- Durable top plate with combined transverse poles allowing versatile utilization when grinding large as well as smaller parts
- Durable watertight design with firmly embedded coils
Description
Unigrip is an electromagnetic chuck with which you can easily manage general surface grinding. For a favourable price, you get a good holding force, thanks to which you can quickly machine workpieces with different dimensions after clamping.To make production more efficient, you can use the control unit offers easy activation by pressing the button or regulation of the holding force by turning the potentiometer. This gives you a good holding force in your workshop or industrial manufacturing plant.Unigrip chucks are constructed for 110 V(DC) and for connection to our control unit with regulation of the holding force and automatic demagnetization.Application: GrindingTechnology: ElectromagnetHolding force: 90 N/cm2Min. workpiece size: 25 x 25 x 5 mmPoles: TransverseRegrinding limit: 6 mmPole pitch: 19 mm, further refined 5+0.5/5+0.5/5+3 steel/brass
Estimated delivery: On Request

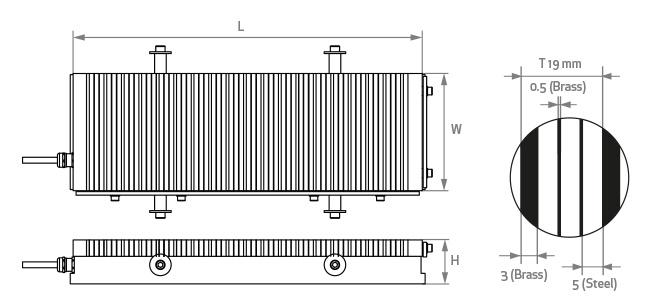

Dimensions
| # | Part No | Width (mm) | Length (mm) | Height (mm) | Price | ||
|---|---|---|---|---|---|---|---|
| 1 | UNIG200600 | 200 | 600 | 73 | £3,686.00 | ||
| 1 | UNIG2001000 | 200 | 1000 | 73 | £5,283.00 | ||
| 1 | UNIG2501000 | 250 | 1000 | 73 | £6,193.00 | ||
| 1 | UNIG300500 | 300 | 500 | 73 | £4,141.00 | ||
| 1 | UNIG300600 | 300 | 600 | 73 | £4,919.00 | ||
| 1 | UNIG300800 | 300 | 800 | 73 | £5,946.00 | ||
| 1 | UNIG3001000 | 300 | 1000 | 73 | £6,982.00 | ||
| 1 | UNIG3001500 | 300 | 1500 | 83 | £9,255.00 | ||
| 1 | UNIG400600 | 400 | 600 | 73 | £5,946.00 | ||
| 1 | UNIG400700 | 400 | 700 | 73 | £6,604.00 | ||
| 1 | UNIG400800 | 400 | 800 | 73 | £7,255.00 | ||
| 1 | UNIG4001000 | 400 | 1000 | 73 | £8,611.00 | ||
| 1 | UNIG4001500 | 400 | 1500 | 83 | £10,915.00 | ||
| 1 | UNIG4002000 | 400 | 2000 | 83 | £14,552.00 | ||
| 1 | UNIG500600 | 500 | 600 | 73 | £7,047.00 | ||
| 1 | UNIG500800 | 500 | 800 | 73 | £8,611.00 | ||
| 1 | UNIG5001000 | 500 | 1000 | 73 | £9,096.00 | ||
| 1 | UNIG5001500 | 500 | 1500 | 83 | £13,643.00 | ||
| 1 | UNIG5002000 | 500 | 2000 | 83 | £20,505.00 | ||
| 1 | UNIG6001000 | 600 | 1000 | 73 | £10,915.00 | ||
| 1 | UNIG6001500 | 600 | 1500 | 83 | £16,372.00 | ||
| 1 | UNIG6002000 | 600 | 2000 | 83 | £24,604.00 |
