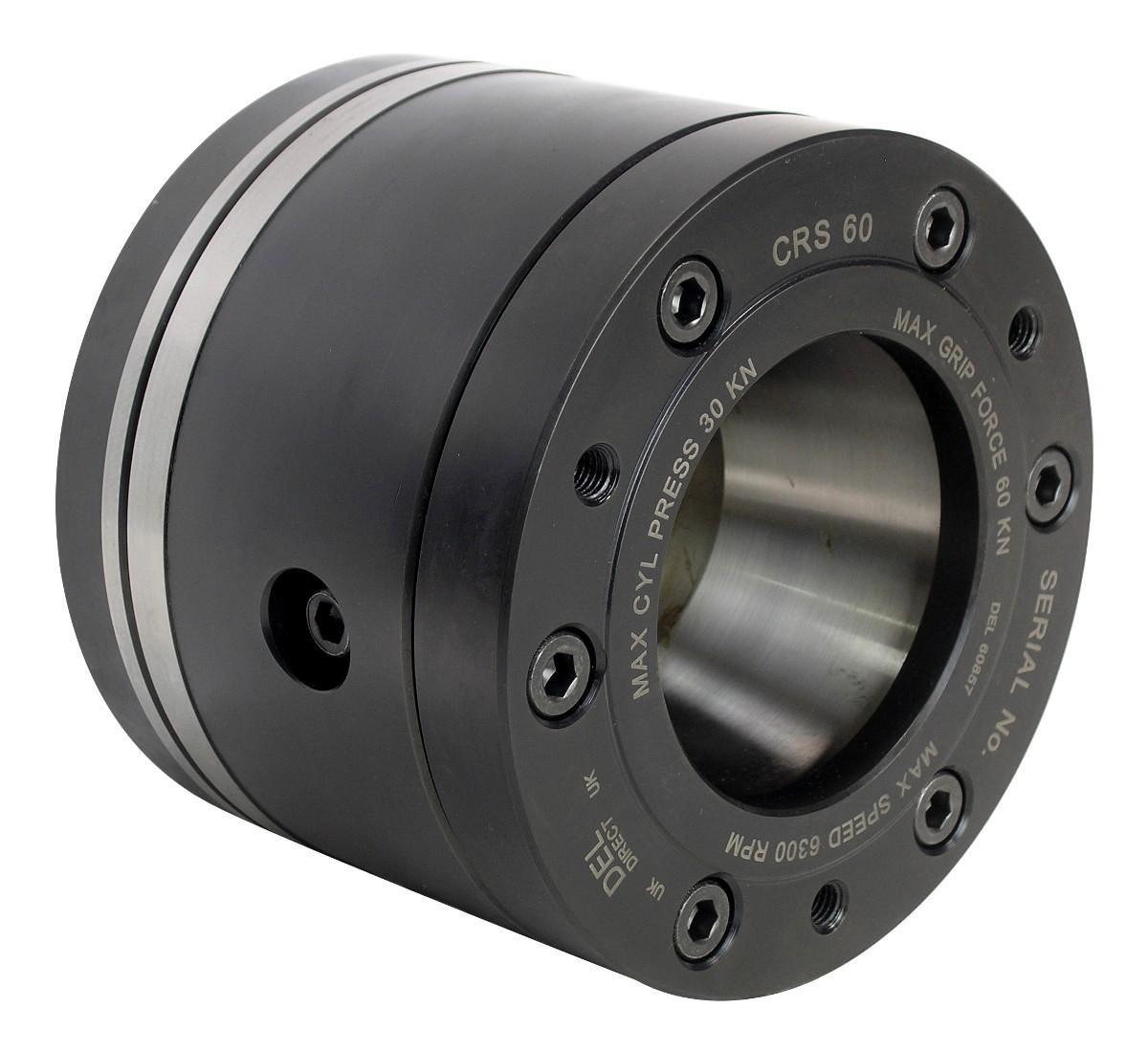

Bolt-On Cap Collet Chuck

60mm Capacity for 1st Op

Key Features

  • Can be used for 1st Operation only
  • Deadlength Actuation Eleminates part movement when Clamping
  • Case hardened, optimising the rigidity, strength and durability.

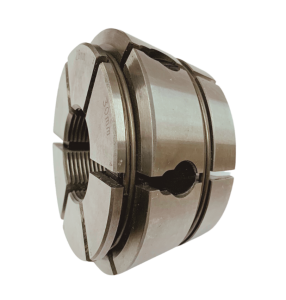

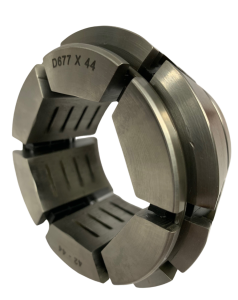

  • Varibore Collets have a large range allowing for easy holding of Rough Bar

Description

Klamp CRS60 collet chucks are suitable for collets which have a large gripping range. Allowing the collet chuck to handle very rough and unfinished bar, preparing it for a high accuracy second operation.

Workpiece remains in a fixed position during actuation, allowing for precise z-axis positioning. A tapered sleeve is pushed forward, compressing the collet and gripping the workpiece

Estimated delivery: Next Day (subject to availability)

Dimensions

# Part No Spindle Mount Capacity (mm) Length (mm) Varibore Rubberflex Price
1 CRS60A5 A2-5 60 107.5 D677 DRFC677 £1,483.00
