D677 Varibore Hexagon Collet
Collet for 1st Operation Work
Key Features
- 2mm Range per Collets
- Sizes Up To 52mm Across Flats
- Smooth Bore as Standard, Other Finishes Available
- Special Profiles Available
Description

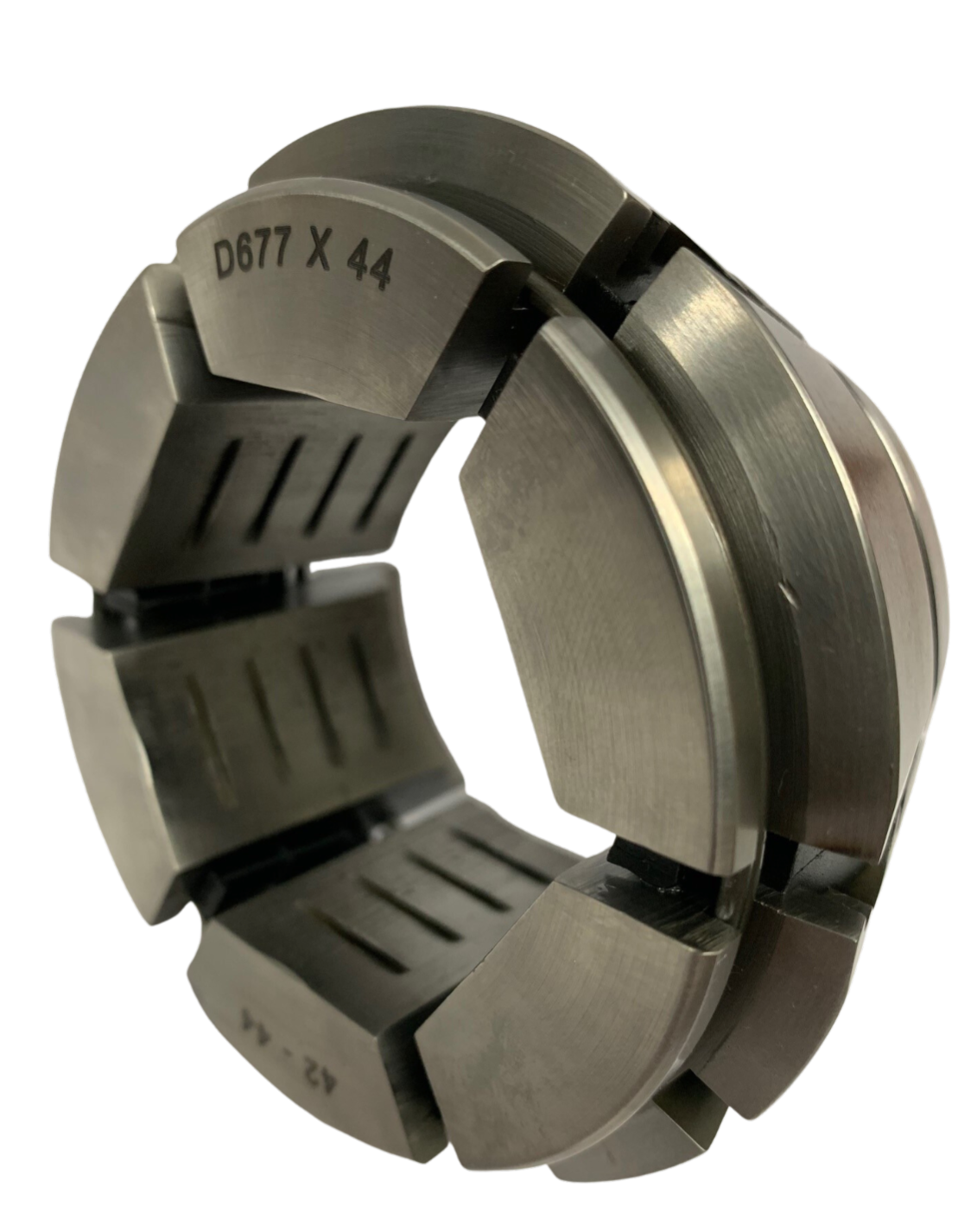

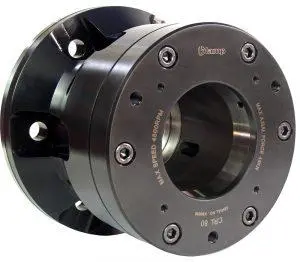

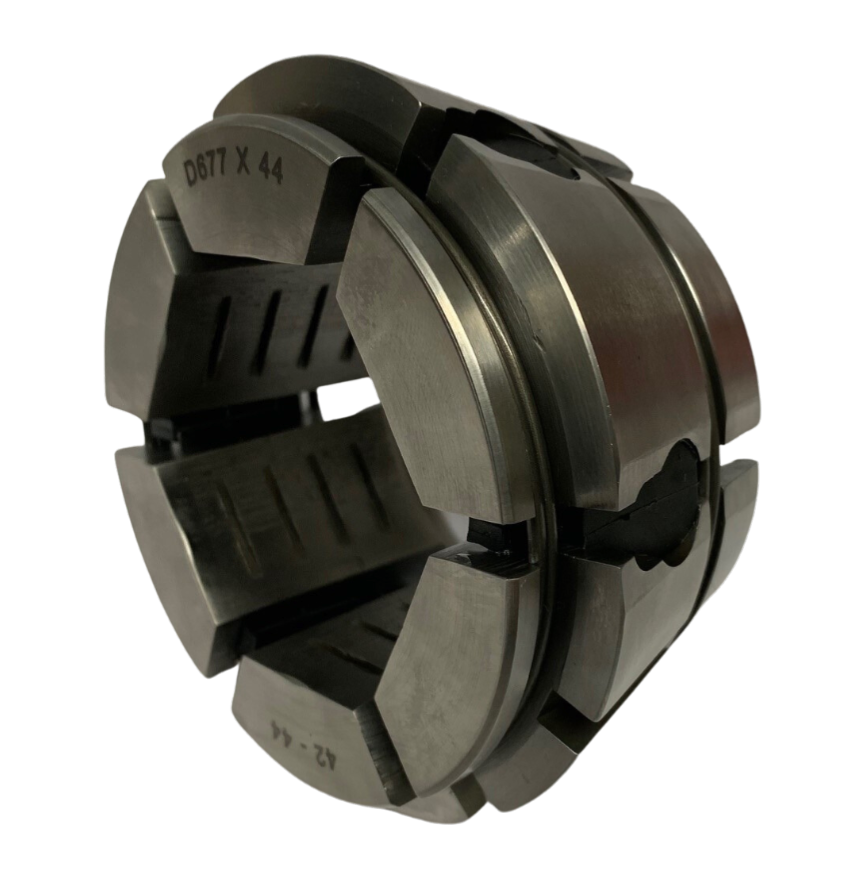

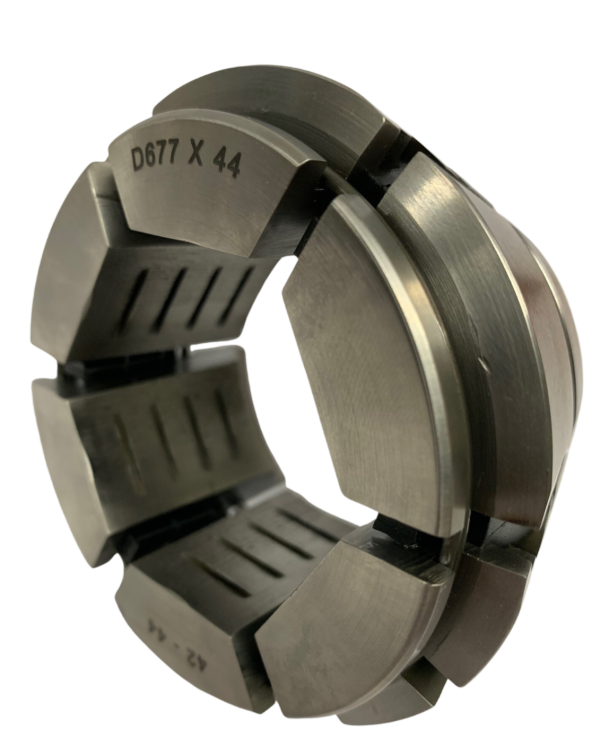

D677 Varibore hexagon collets are to suit 60mm capacity collet chucks. Also known as M677, these collets have a 2mm range. Supplied smooth as standard we can supply with alternate finishes and in special profiles. D677 suit the following collet chucks: Klamp CRL60 Klamp QCRL60 Crawford CDC60 Crawford CDC-60-S Crawford QCD-60
Estimated delivery: 2-3 Weeks (subject to availability)
Dimensions
| # | Part No | Size (mm) | Bore | Price | |
|---|---|---|---|---|---|
| 1 | D677-X06 | 4-6mm | Smooth | £ Price on application | |
| 1 | D677-X08 | 6-8mm | Smooth | £ Price on application | |
| 1 | D677-X10 | 8-10mm | Smooth | £ Price on application | |
| 1 | D677-X12 | 10-12mm | Smooth | £ Price on application | |
| 1 | D677-X14 | 12-14mm | Smooth | £ Price on application | |
| 1 | D677-X16 | 14-16mm | Smooth | £ Price on application | |
| 1 | D677-X18 | 16-18mm | Smooth | £ Price on application | |
| 1 | D677-X20 | 18-20mm | Smooth | £ Price on application | |
| 1 | D677-X22 | 20-22mm | Smooth | £ Price on application | |
| 1 | D677-X24 | 22-24mm | Smooth | £ Price on application | |
| 1 | D677-X26 | 24-26mm | Smooth | £ Price on application | |
| 1 | D677-X28 | 26-28mm | Smooth | £ Price on application | |
| 1 | D677-X30 | 28-30mm | Smooth | £ Price on application | |
| 1 | D677-X32 | 30-32mm | Smooth | £ Price on application | |
| 1 | D677-X34 | 32-34mm | Smooth | £ Price on application | |
| 1 | D677-X36 | 34-36mm | Smooth | £ Price on application | |
| 1 | D677-X38 | 36-38mm | Smooth | £ Price on application | |
| 1 | D677-X40 | 38-40mm | Smooth | £ Price on application | |
| 1 | D677-X42 | 40-42mm | Smooth | £ Price on application | |
| 1 | D677-X44 | 42-44mm | Smooth | £ Price on application | |
| 1 | D677-X46 | 44-46mm | Smooth | £ Price on application | |
| 1 | D677-X48 | 46-48mm | Smooth | £ Price on application | |
| 1 | D677-X50 | 48-50mm | Smooth | £ Price on application | |
| 1 | D677-X52 | 50-52mm | Smooth | £ Price on application |
